WEG Force Vent Fan W22 112-2 RBK
WEG Force Vent Fan W22 112-2 RBK WEG Force Vent Fan W22 112-2 RBK RBK Terminal Connections

WEG Force Vent Fan W22 112-2 RBK

Forced Ventilation Fan 112-2 RBK to fit WEG W22 electric motors with an internal diameter of 218mm.
Manufacturer: Axis Controls
SKU: FV WEG 112 0K 218 232
£209.69 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV WEG 112 0K 218 232
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorWEG
SeriesW22
Frame Size112

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

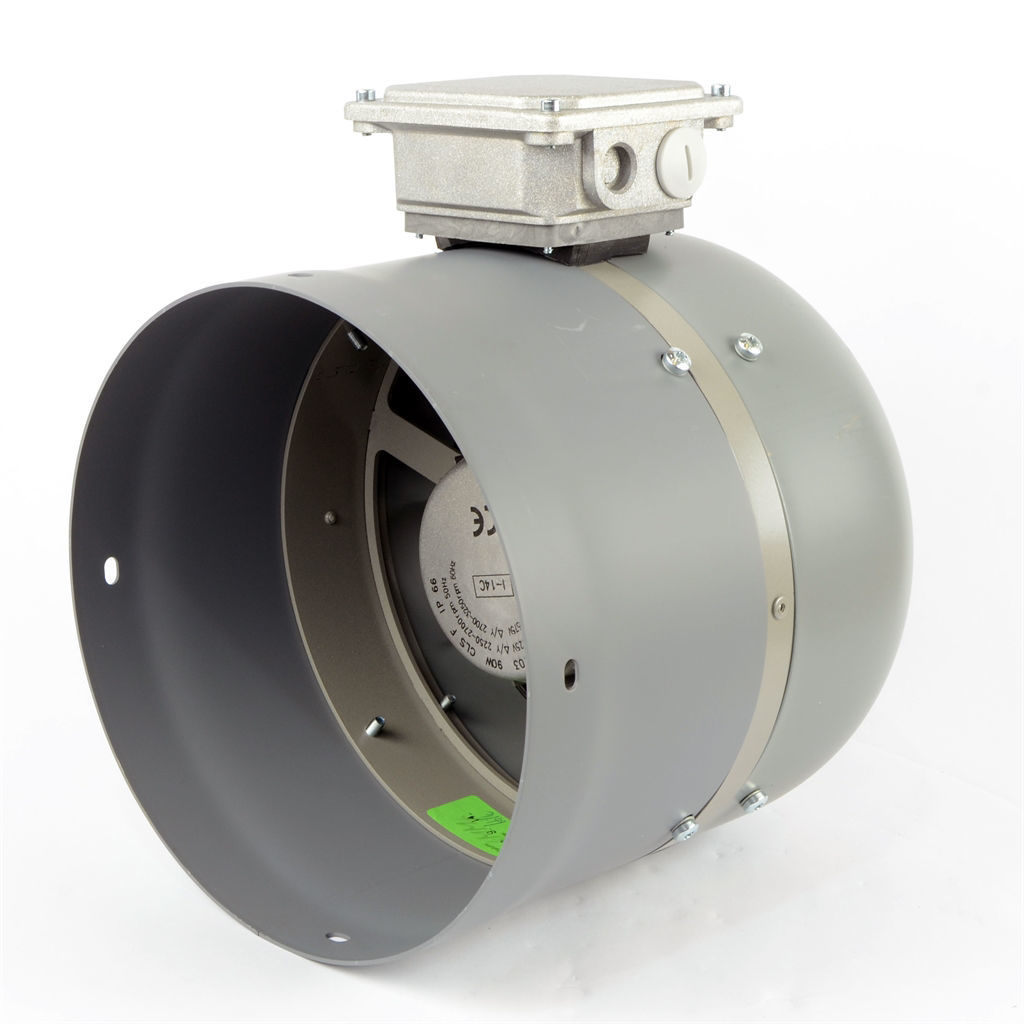

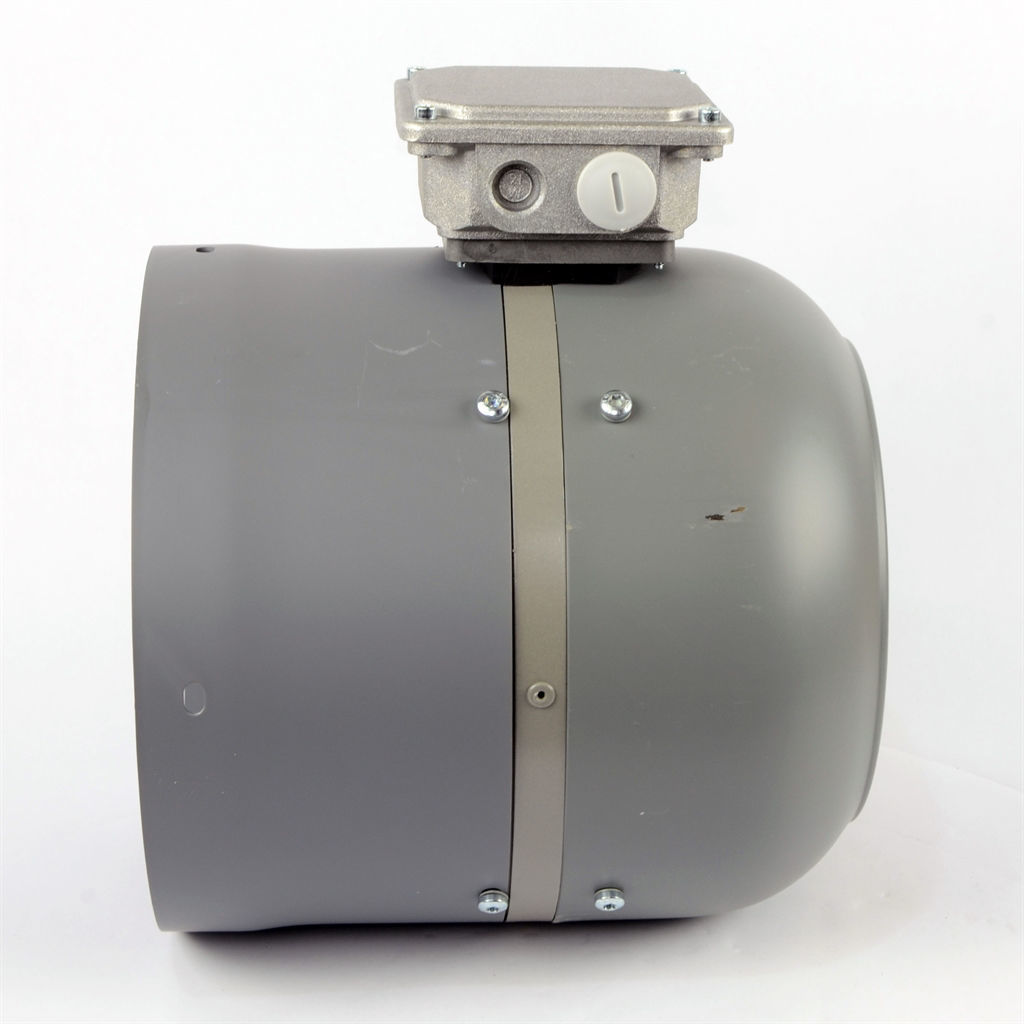

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size112
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)218
Length (mm)232
