VEM Force Vent Fan K21 112 RBK
VEM Force Vent Fan K21 112 RBK VEM Force Vent Fan K21 112 RBK RBK Terminal Connections

VEM Force Vent Fan K21 112 RBK

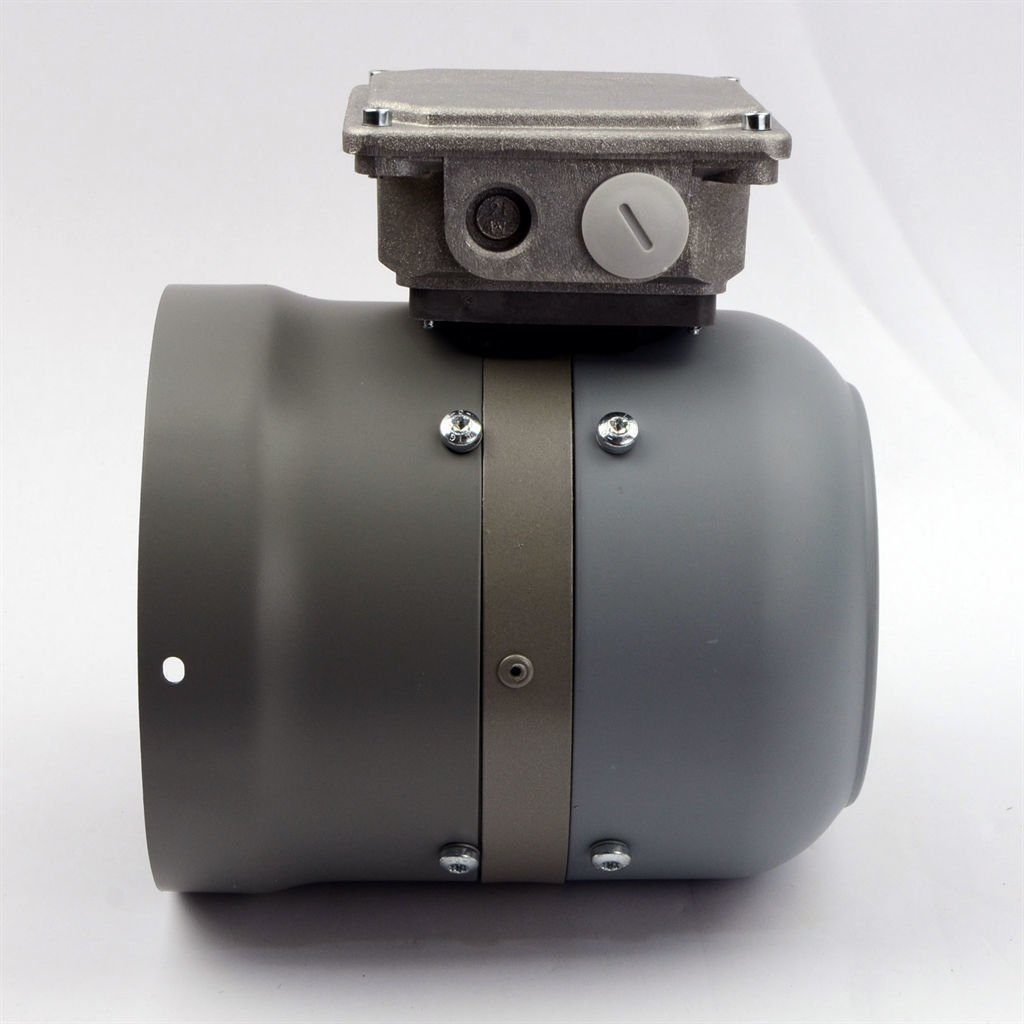

Forced Ventilation Fan 112 RBK to fit VEM K21 electric motors with an internal diameter of 200mm.
Manufacturer: Axis Controls
SKU: FV VEM 112 0K 200 199
£199.68 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV VEM 112 0K 200 199
IP RatingIP66

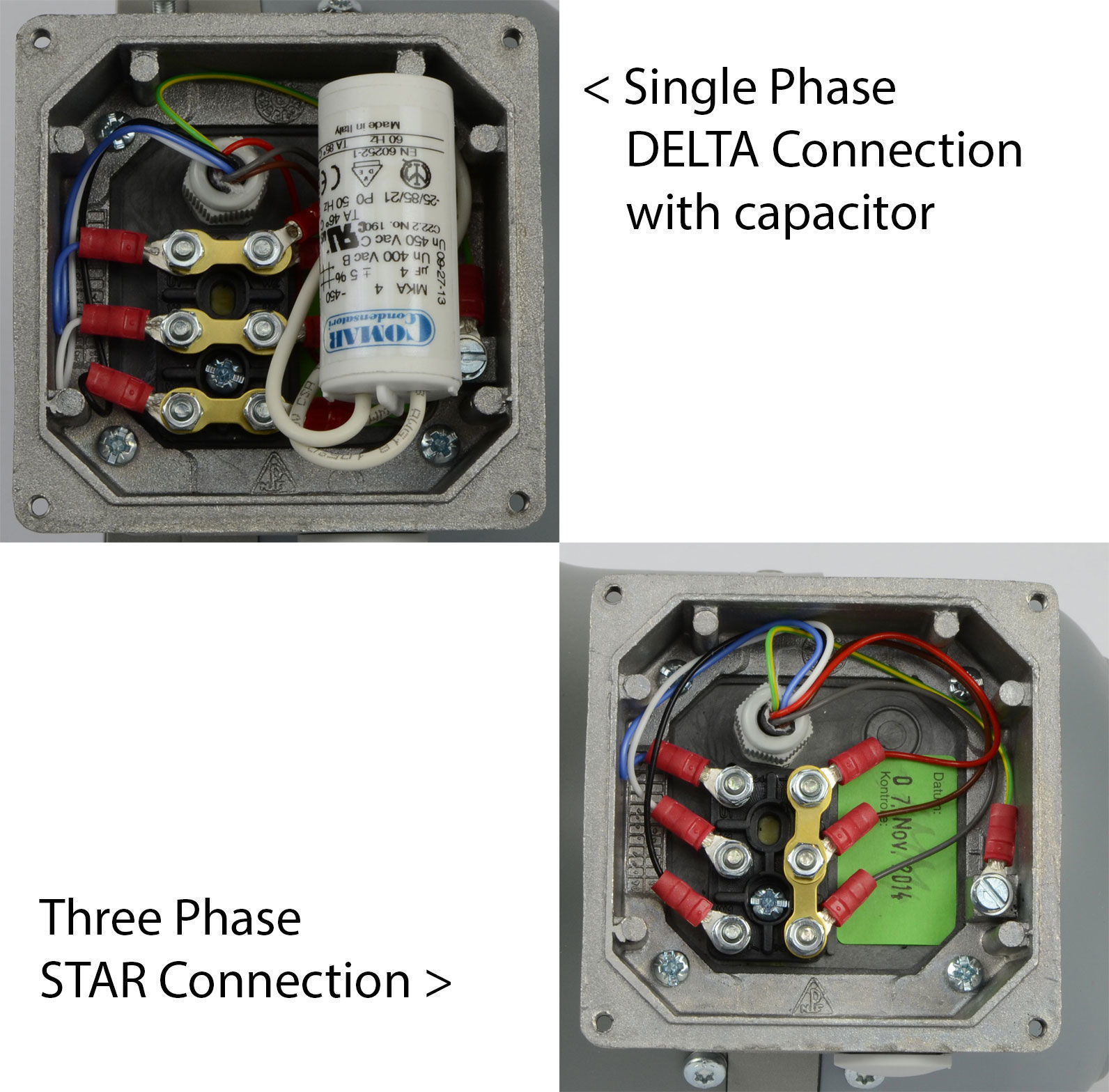

Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorVEM
SeriesK21
Frame Size112

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size112
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)200
Length (mm)199
