Teco Force Vent Fan TEC 112 RBK Ext
Teco Force Vent Fan TEC 112 RBK Ext Teco Force Vent Fan TEC 112 RBK Ext RBK Terminal Connections

Teco Force Vent Fan TEC 112 RBK Ext

Forced Ventilation Fan 112 RBK extended to fit Teco electric motors with an internal diameter of 216mm.
Manufacturer: Axis Controls
SKU: FV TEC 112 0K 216 321
£216.43 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV TEC 112 0K 216 321
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorTeco
SeriesStandard
Frame Size112

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

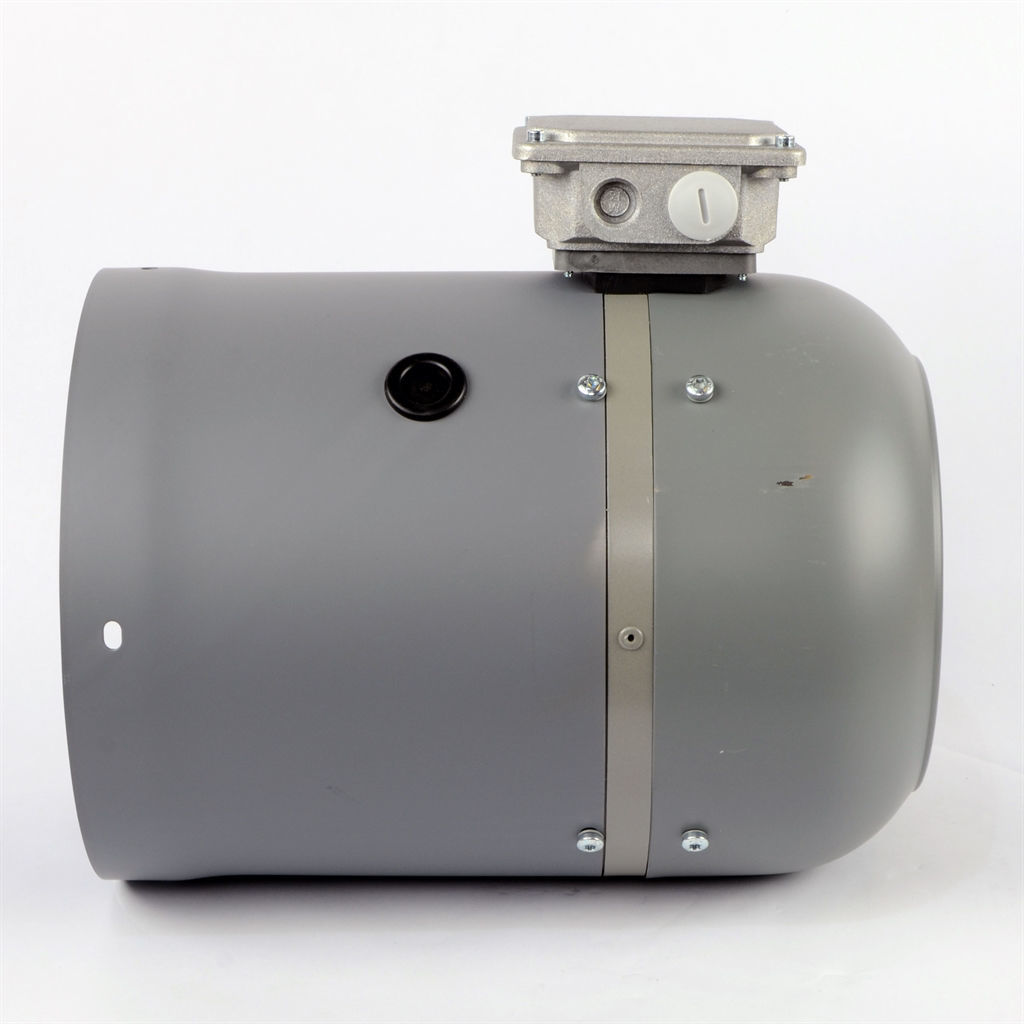

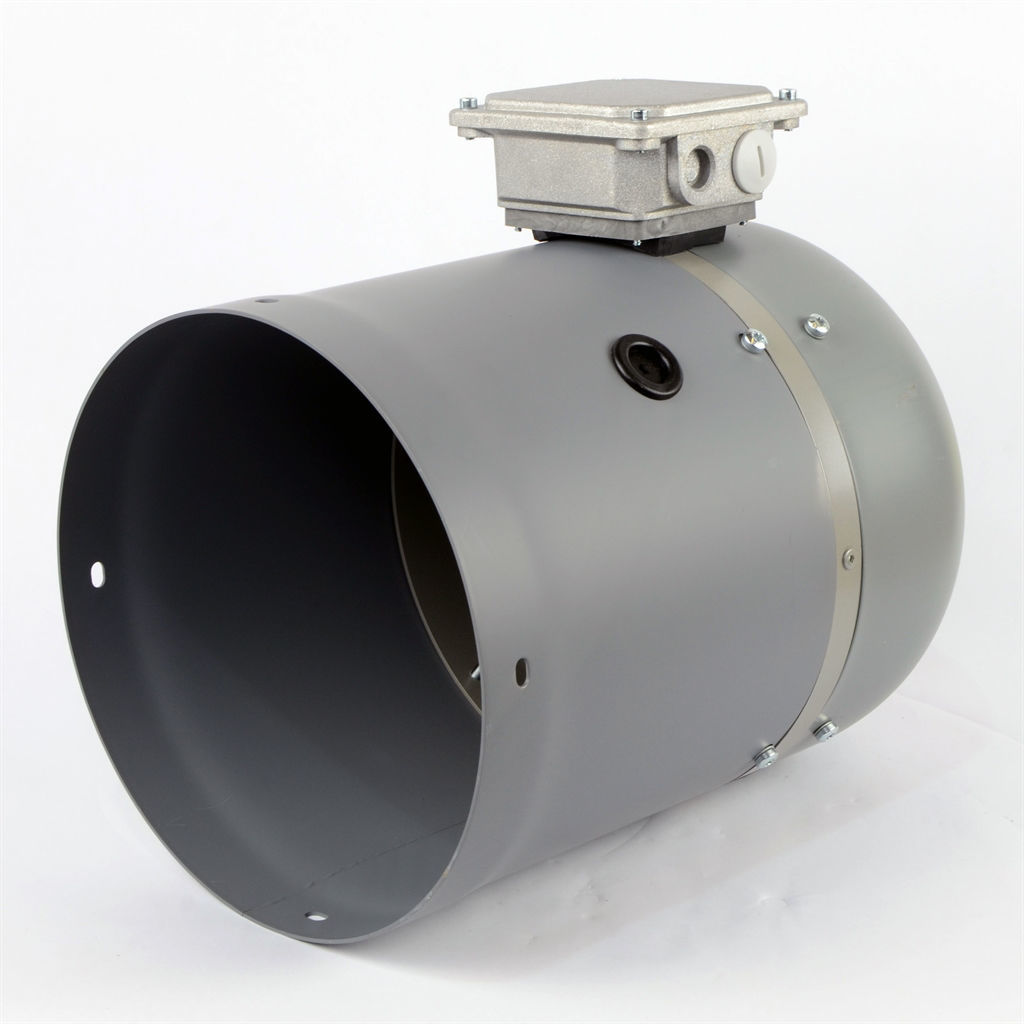

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size112
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)216
Length (mm)321
