Teco Force Vent Fan TEC 100 RBK Ext
Teco Force Vent Fan TEC 100 RBK Ext Teco Force Vent Fan TEC 100 RBK Ext RBK Terminal Connections

Teco Force Vent Fan TEC 100 RBK Ext

Forced Ventilation Fan 100 RBK extended to fit Teco electric motors with an internal diameter of 194mm.
Manufacturer: Axis Controls
SKU: FV TEC 100 0K 192 309
£210.90 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

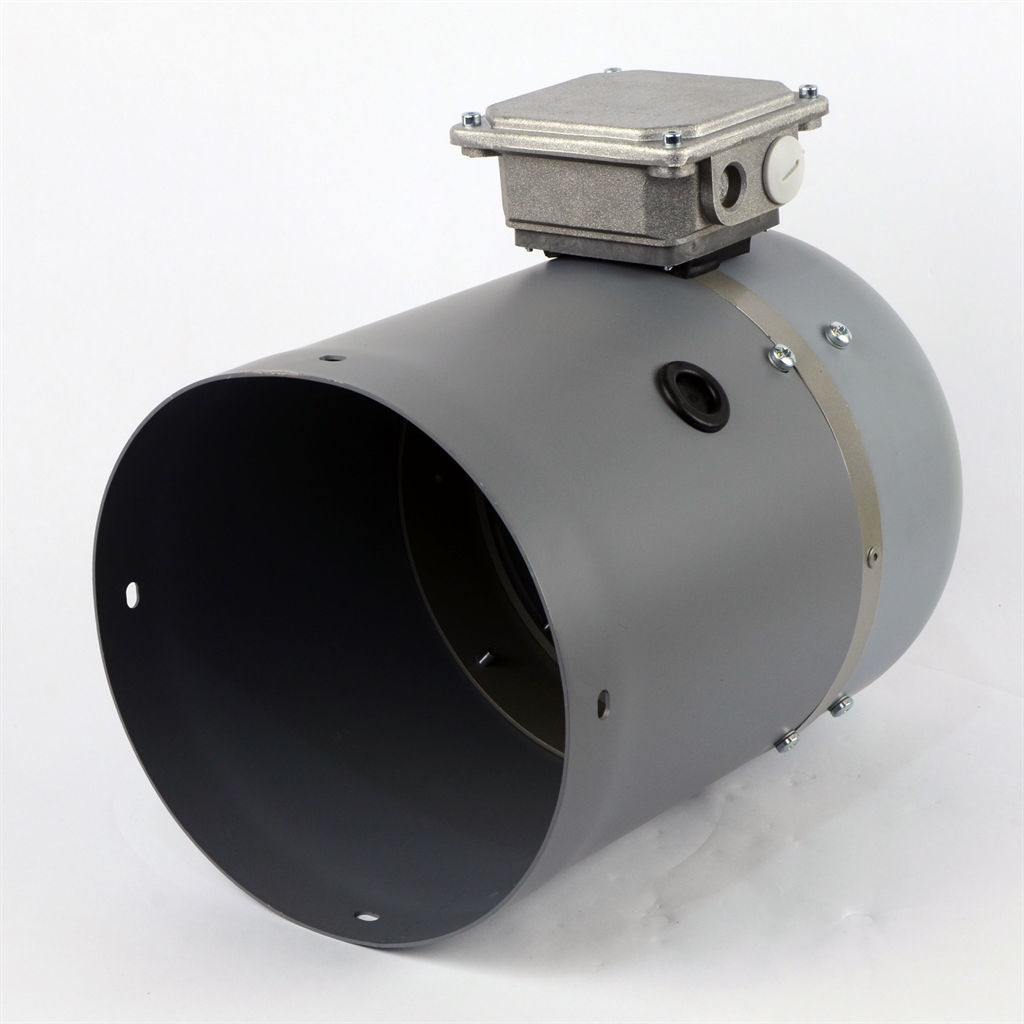

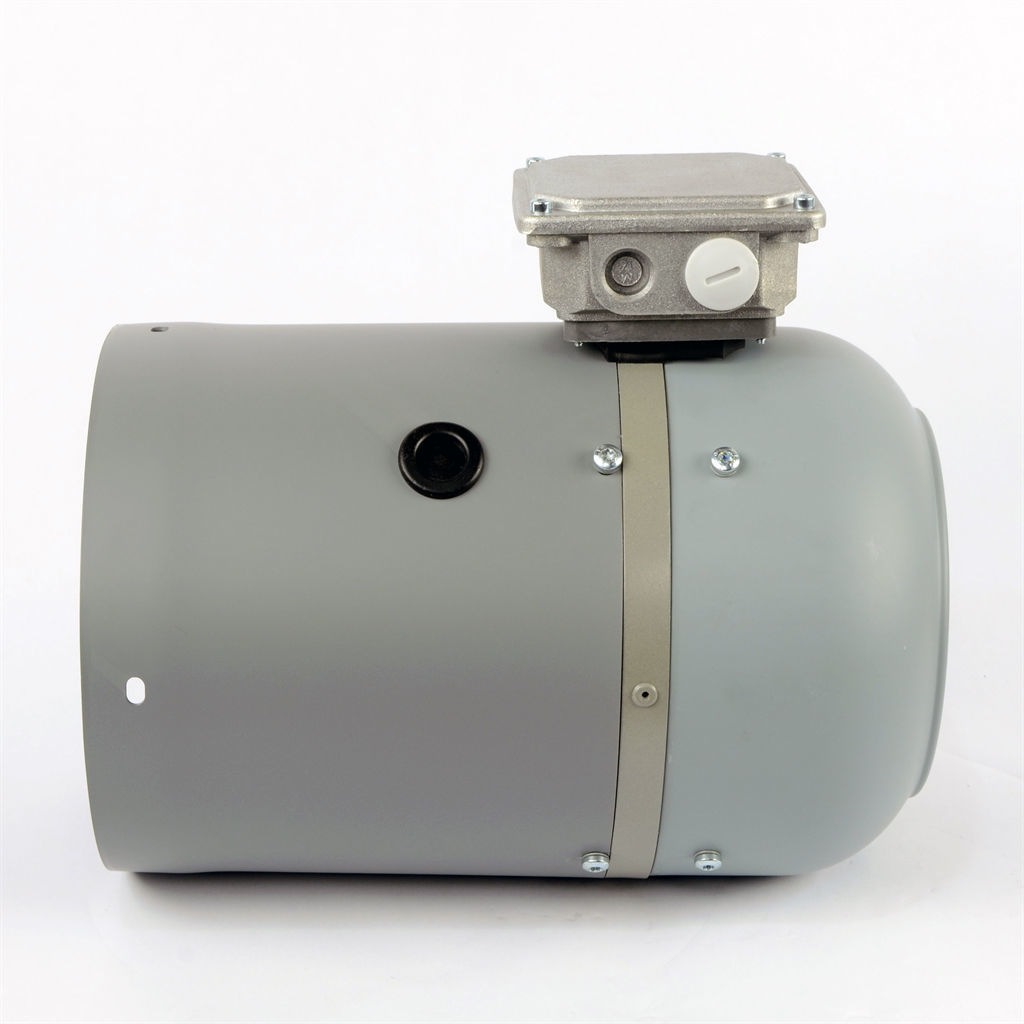

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV TEC 100 0K 192 309
IP RatingIP66

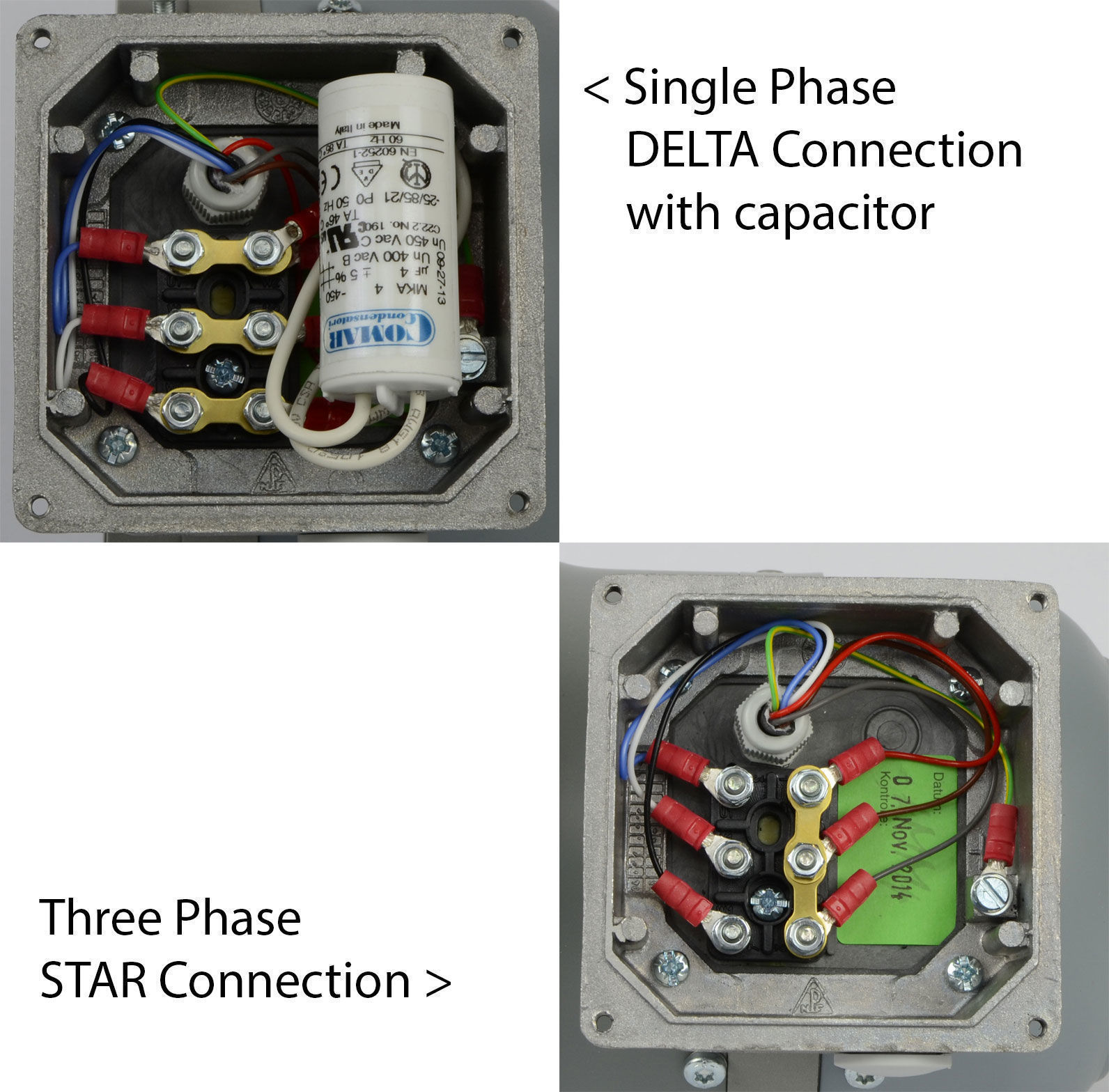

Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorTeco
SeriesStandard
Frame Size100

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size100
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)194
Length (mm)309
