Siemens Force Vent Fan 1LA7 100 RBK
Siemens Force Vent Fan 1LA7 100 RBK Siemens Force Vent Fan 1LA7 100 RBK RBK Terminal Connections

Siemens Force Vent Fan 1LA7 100 RBK

Forced Ventilation Fan 100 RBK to fit Siemens 1LA7 electric motors with an internal diameter of 194mm.
Manufacturer: Axis Controls
SKU: FV SIE 100 0K 194 218
£204.54 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV SIE 100 0K 194 218
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorSiemens
Series1LA7
Frame Size100

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

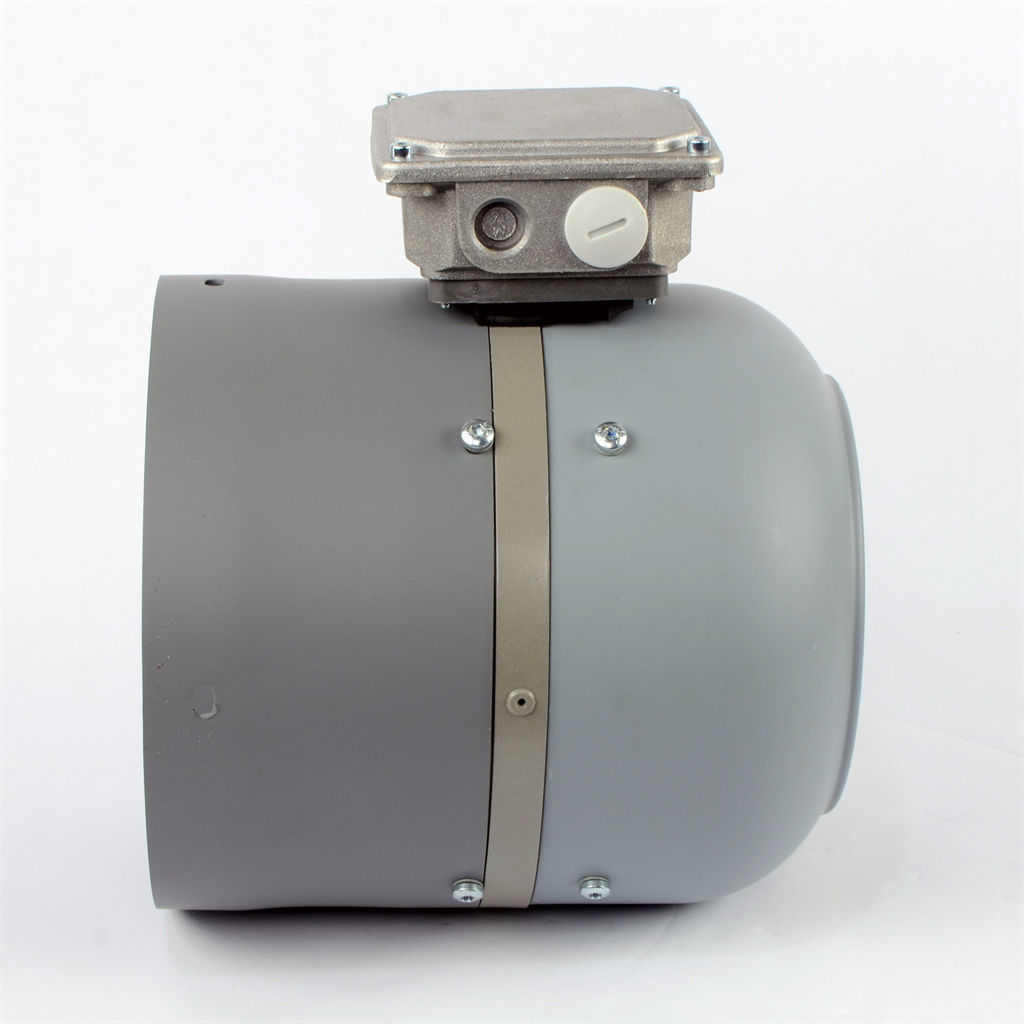

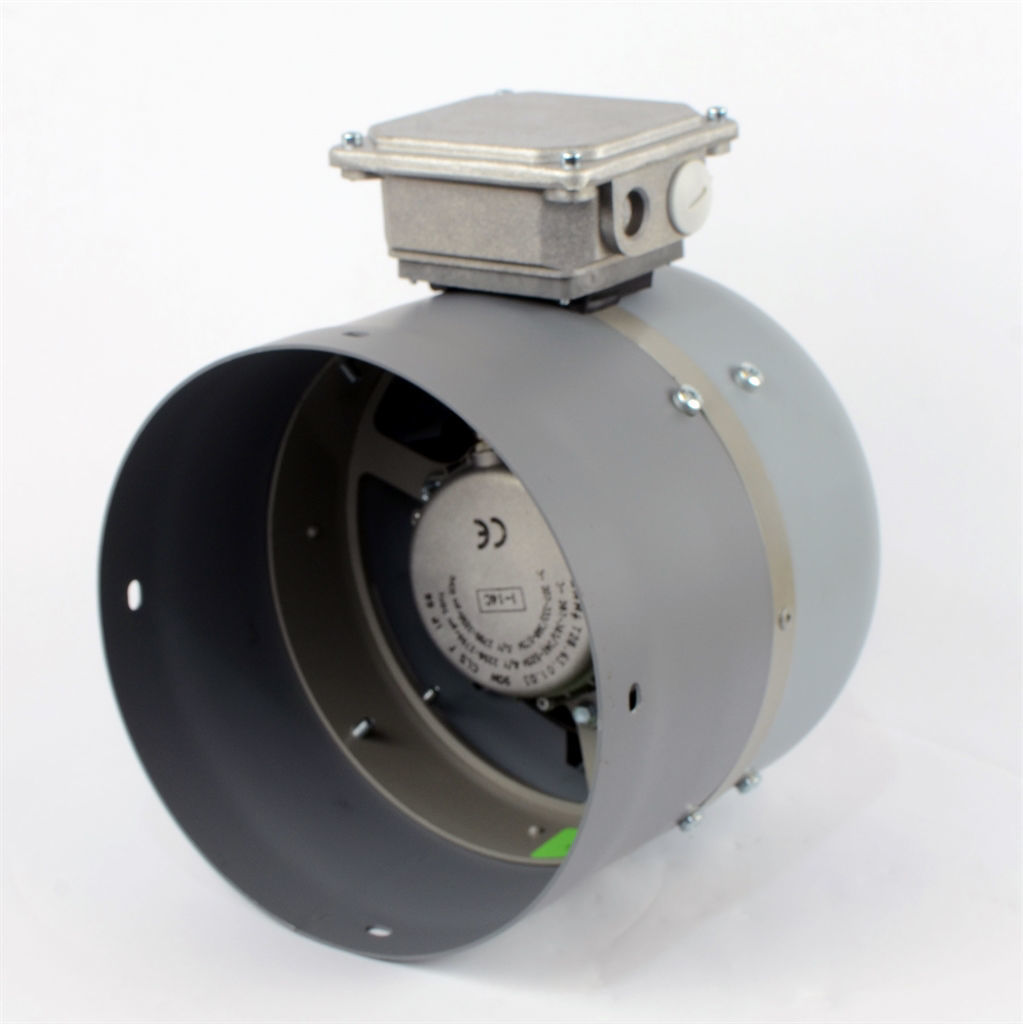

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size100
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)194
Length (mm)218
