Sick DFS60B-THPA10000
Sick DFS60B-THPA10000 Sick DFS60B-THPA10000

Sick DFS60B-THPA10000 Encoder

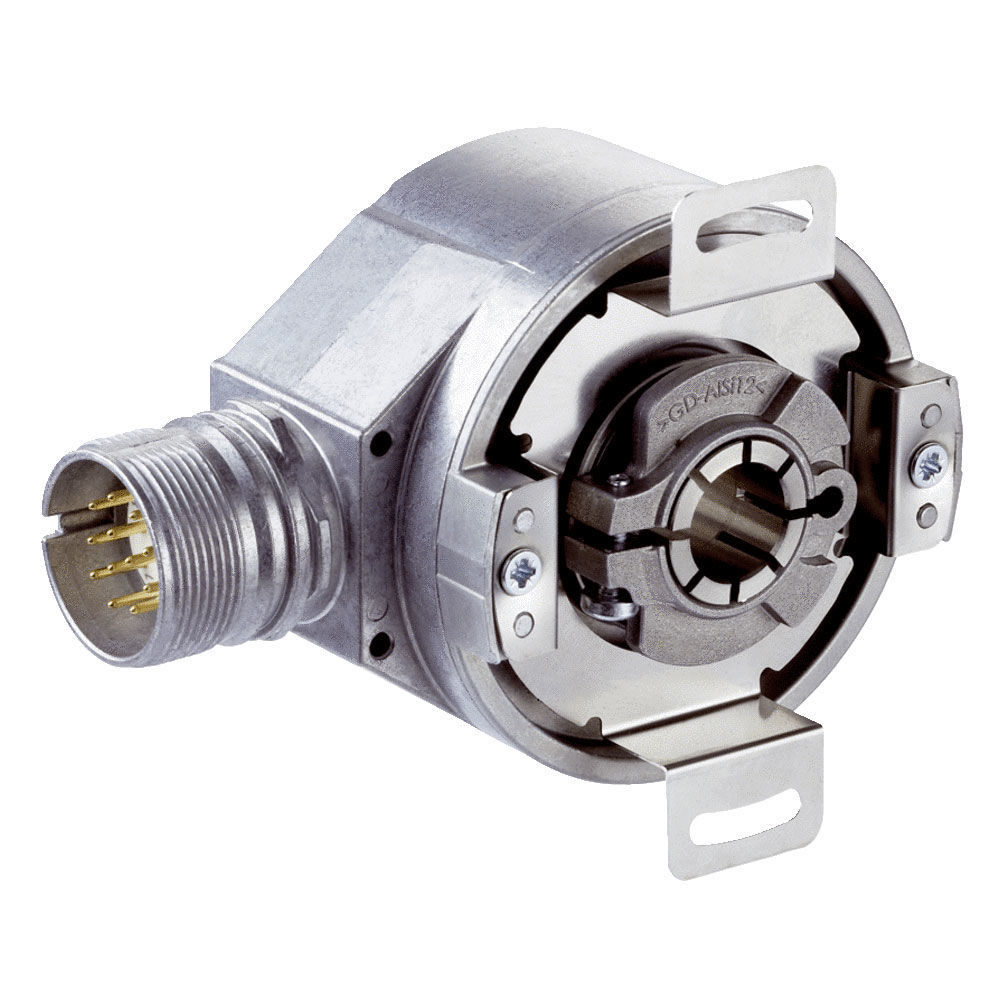

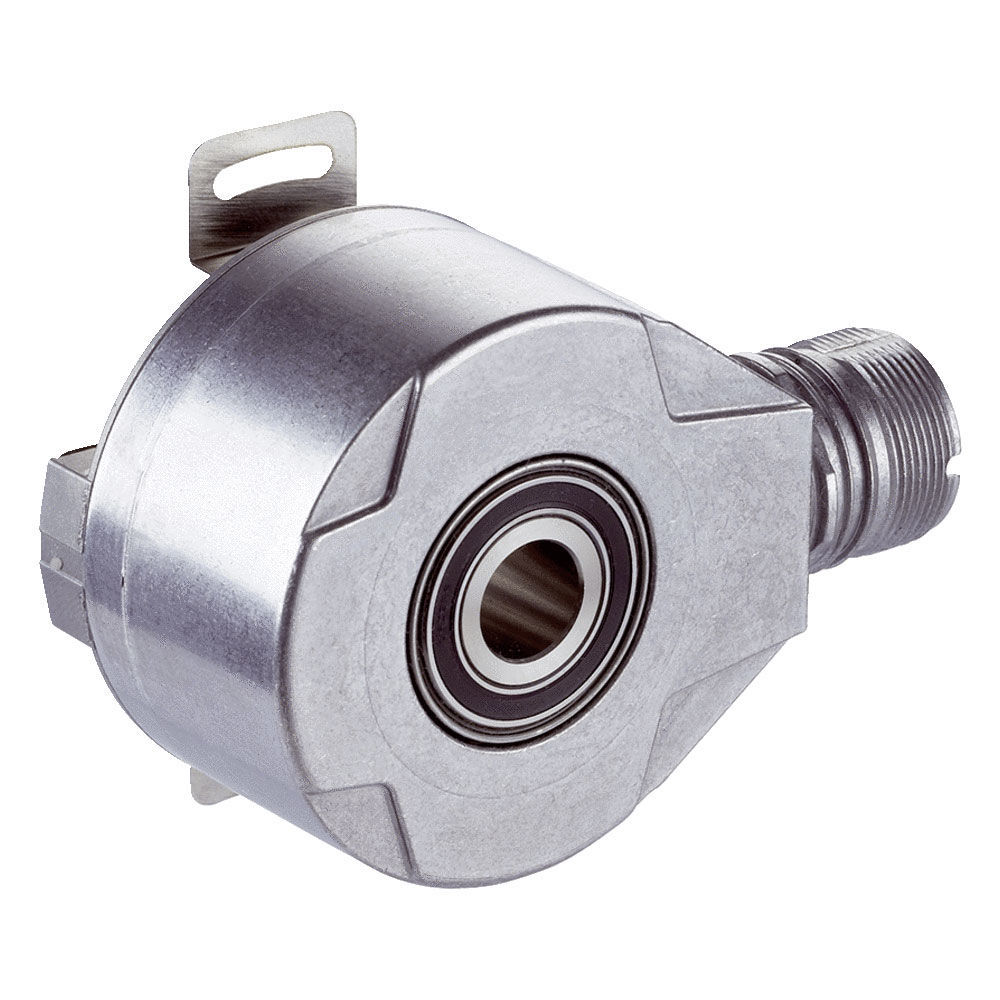

Sick DFS60B-THPA10000 ( 1036911 ) Programmable Encoder. M23 Connector, 15mm hollow shaft. The encoders are programmed to 10,000ppr /TTL (5v) as standard. They can be pre-programmed between 1ppr-10,000ppr and TTL (5v) or HTL (10-30v).
Manufacturer: Sick
SKU: 1036911
*

PPR (pulses per revolution)

*
List price: £264.61 excl VAT
£204.29 excl VAT

Manufacturer : Sick
Model Number : DFS60B-THPA10000
Part Number : 1036911
Type :  Programmable encoder
Specification : M23 Connector, 15mm hollow shaft

Fully programmable hollow shaft incremental encoder.
Ideal for mounting on motor shafts.
This model can be programmed for any pulse count between 1 & 10,000 ppr.
Can be set for TTL/RS422 (4.5-5.5V) or HTL/Push Pull (10-30V). A,B,Z with compliments.
The unit comes with an M32 connector, to allow encoder cable disconnection.
A separate encoder cable will be required.
Collets are available to reduce the shaft diameter from 15mm.

The offer price includes pre-programming to your specification.


DOCUMENT DOWNLOADS

Related products

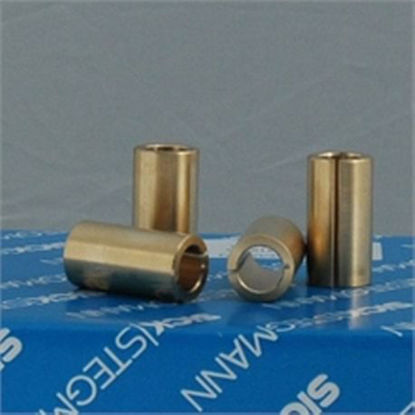

Sick Encoder Collet

Sick Encoder Collet - 6mm

2029174
6mm encoder collet - used to reduce the encoder's hollow shaft diameter from 15mm to 6mm
£12.34 excl VAT £11.11 excl VAT
Sick Encoder Collet

Sick Encoder Collet - 8mm

2029176
8mm encoder collet - used to reduce the encoder's hollow shaft diameter from 15mm to 8mm
£12.34 excl VAT £11.11 excl VAT
Sick Encoder Collet

Sick Encoder Collet - 10mm

2029178
10mm encoder collet - used to reduce the encoder's hollow shaft diameter from 15mm to 10mm
£12.34 excl VAT £11.11 excl VAT
Sick Encoder Collet

Sick Encoder Collet - 12mm

2029179
12mm encoder collet - used to reduce the encoder's hollow shaft diameter from 15mm to 12mm
£12.34 excl VAT £11.11 excl VAT
Sick Encoder Collet

Sick Encoder Collet - 14mm

2048863
14mm encoder collet - used to reduce the encoder's hollow shaft diameter from 15mm to 14mm
£11.31 excl VAT £10.18 excl VAT
Sick Encoder Collet

Sick Encoder Collet - 1/4"

2029175
1/4" encoder collet - used to reduce the encoder's hollow shaft diameter from 15mm to 1/4"
£12.34 excl VAT £11.11 excl VAT
Sick Encoder Collet

Sick Encoder Collet - 3/8"

2029177
3/8" encoder collet - used to reduce the encoder's hollow shaft diameter from 15mm to 3/8"
£12.34 excl VAT £11.11 excl VAT
Sick Encoder Collet

Sick Encoder Collet - 1/2"

2029180
1/2" encoder collet - used to reduce the encoder's hollow shaft diameter from 15mm to 1/2"
£12.34 excl VAT £11.11 excl VAT
SICK DOL-2312-G1M5MA3

Sick 1.5 Meter Encoder Cable

DOL-2312-G1M5MA3
Sick 1.5 metre encoder cable. M23 Connector.
£59.17 excl VAT £53.25 excl VAT
SICK DOL-2312-G03MMA3

Sick 3 Meter Encoder Cable

DOL-2312-G03MMA3
Sick 3 metre encoder cable. M23 Connector.
£68.58 excl VAT £62.15 excl VAT
SICK DOL-2312-G05MMA3

Sick 5 Meter Encoder Cable

DOL-2312-G05MMA3
Sick 5 metre encoder cable. M23 Connector.
£81.00 excl VAT £73.40 excl VAT
SICK DOL-2312-G10MMA3

Sick 10 Meter Encoder Cable

DOL-2312-G10MMA3
Sick 10 metre encoder cable. M23 Connector.
£111.55 excl VAT £101.08 excl VAT
SICK DOL-2312-G20MMA3

Sick 20 Meter Encoder Cable

DOL-2312-G20MMA3
Sick 20 metre encoder cable. M23 Connector.
£170.71 excl VAT £154.70 excl VAT
SICK DOL-2312-G30MMA3

Sick 30 Meter Encoder Cable

DOL-2312-G30MMA3
Sick 20 metre encoder cable. M23 Connector.
£231.82 excl VAT £210.08 excl VAT
