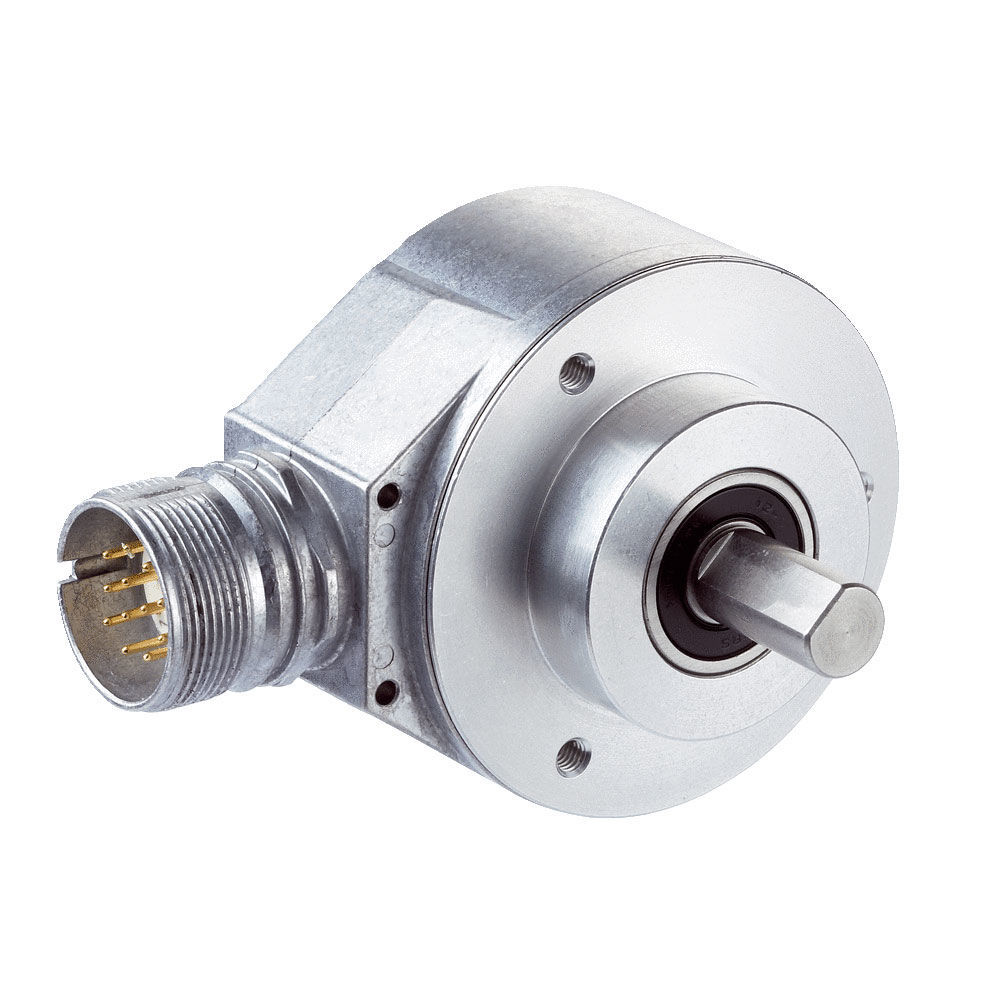

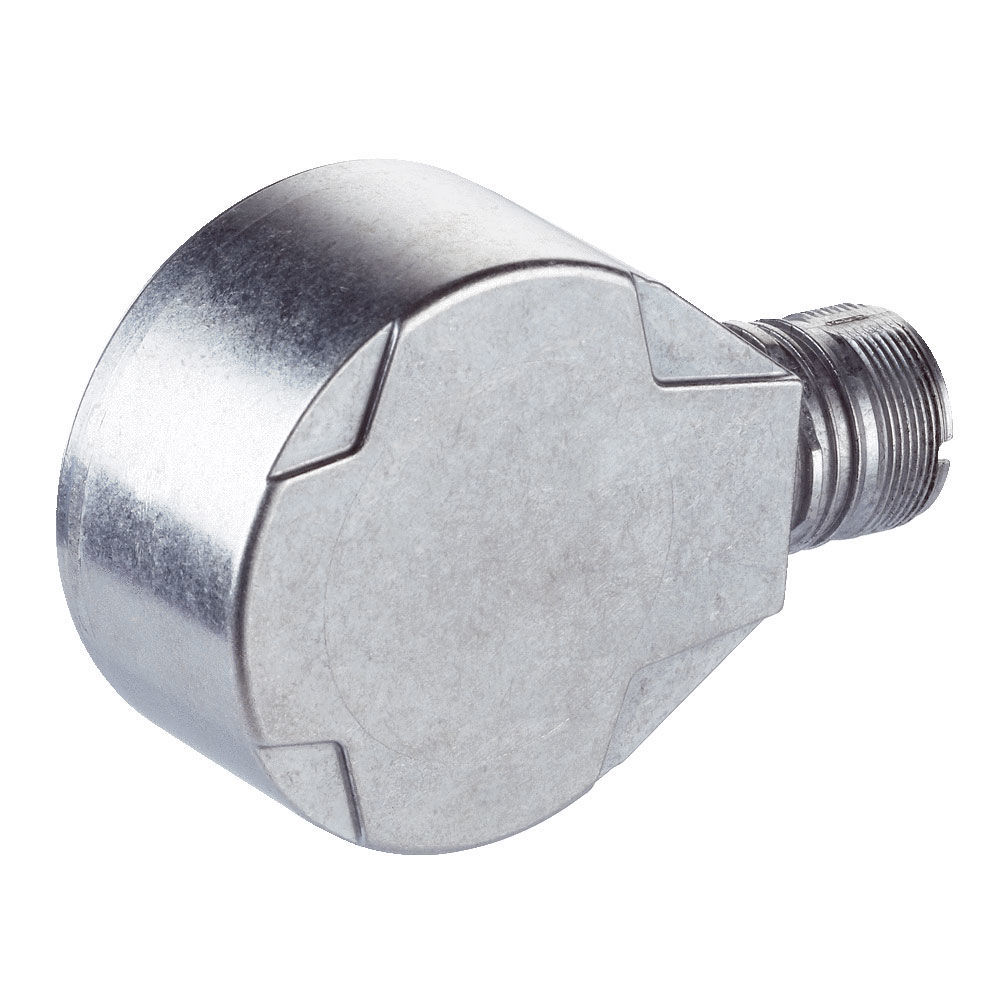

Sick DFS60B-S4PA10000 Encoder

Sick DFS60B-S4PA10000 ( 1036720 ) Programmable Encoder. 10mm solid shaft. M23 connector. The encoders are programmed to 10,000ppr /TTL (5v) as standard. They can be pre-programmed between 1ppr-10,000ppr and TTL (5v) or HTL (10-30v).

Manufacturer: Sick

SKU: 1036720

Please indicate below your required ppr and voltage. * PPR (pulses per revolution)
Voltage *

List price: £229.89 excl VAT

Price: £206.90 excl VAT

Qty:

Manufacturer : Sick
Model Number : DFS60B-S4PA10000
Part Number : 1036720
Type : Programmable encoder
Specification : M23 Connector, 10mm solid shaft

Fully programmable 10mm solid shaft incremental encoder.
This model can be programmed for any pulse count between 1 & 10,000 ppr.
Can be set for TTL/RS422 (4.5-5.5V) or HTL/Push Pull (10-30V).
A,B,Z with compliments.
A separate encoder cable will be required.

The offer price includes pre-programming to your specification.

DOCUMENT DOWNLOADS

DFS60B-S4PA Datasheet (1.4 MB)
