SEW Force Vent Fan DT 090/100-2 RBK
SEW Force Vent Fan DT 090/100-2 RBK SEW Force Vent Fan DT 090/100-2 RBK RBK Terminal Connections

SEW Force Vent Fan DT 90/100-2 RBK

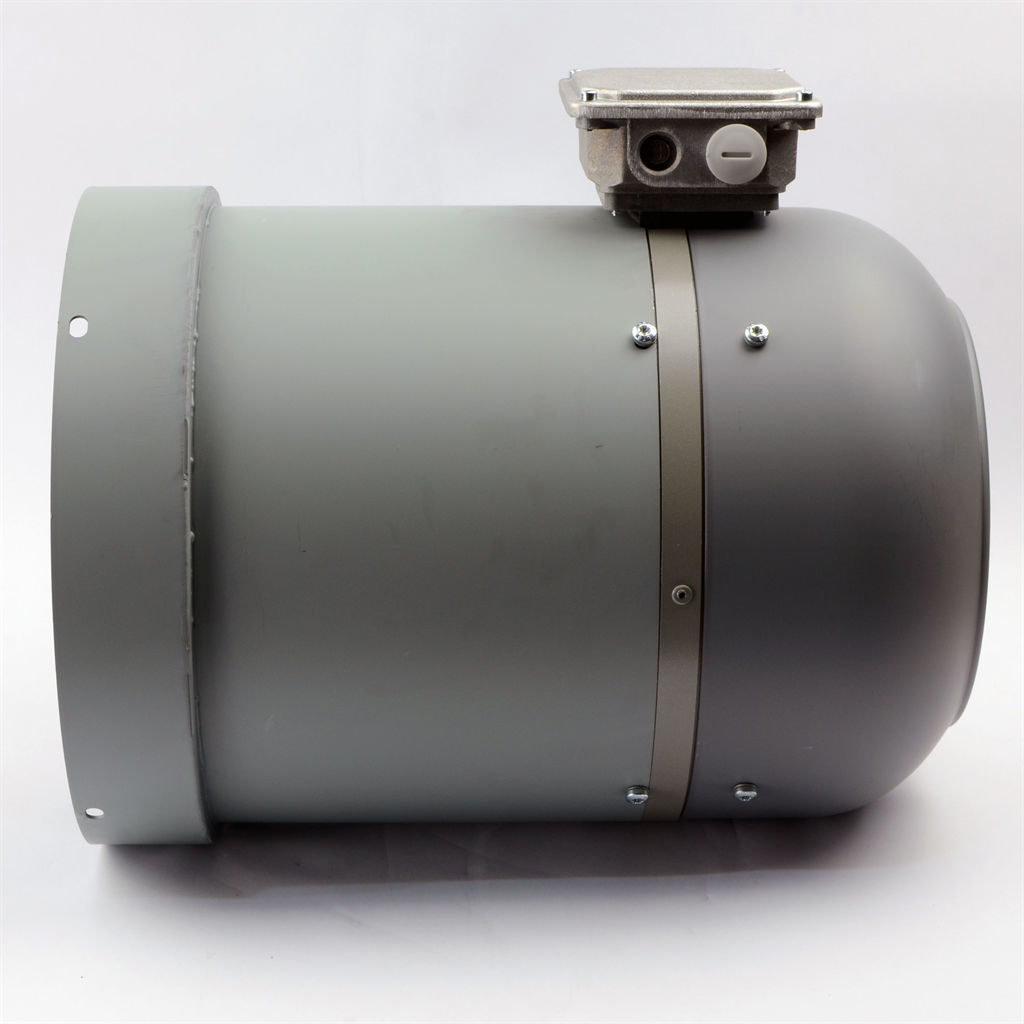

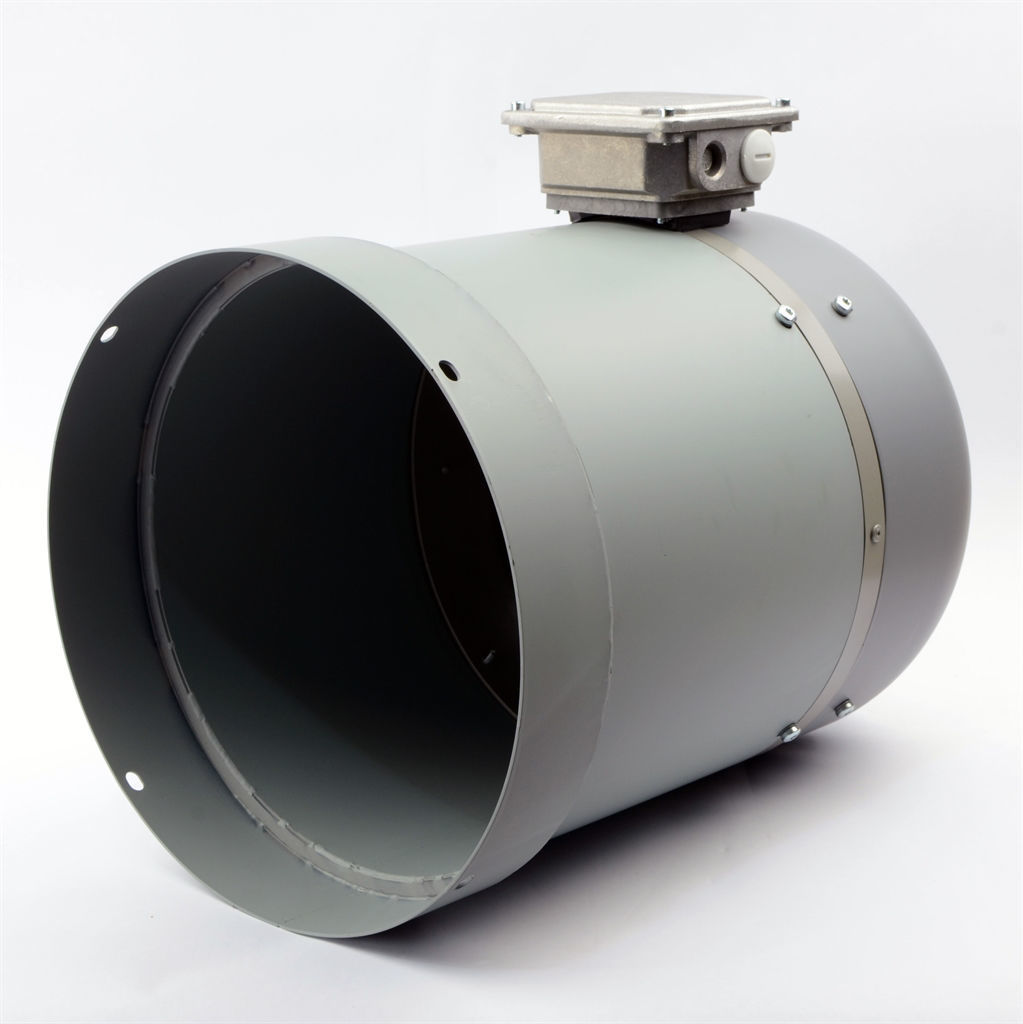

Forced Ventilation Fan 90/100 VS RBK to fit SEW DT electric motors with an internal diameter of 195mm.
Manufacturer: Axis Controls
SKU: FV SEW 100 0K 195 197
£219.65 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV SEW 100 0K 195 197
IP RatingIP66

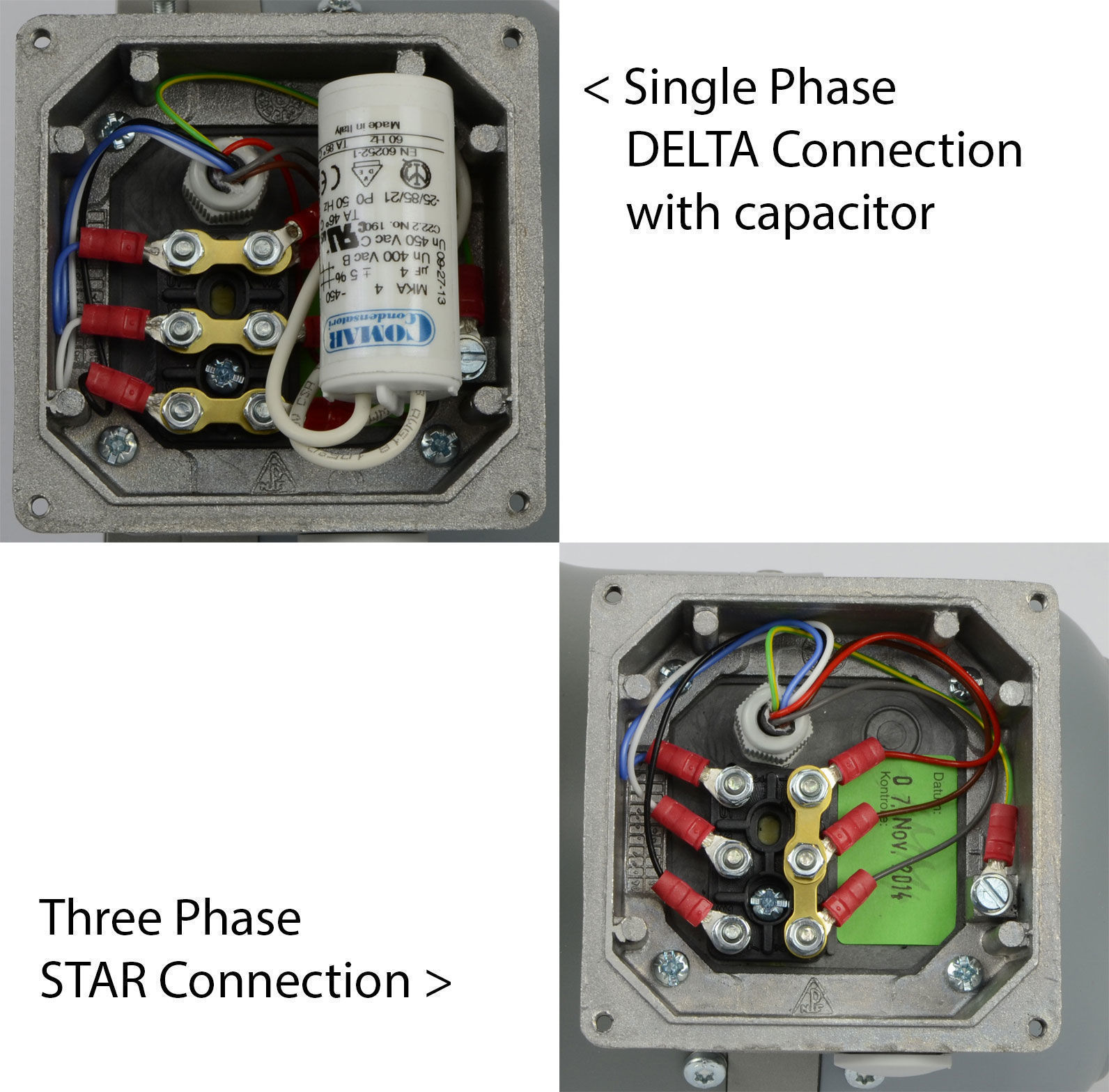

Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorSEW
SeriesDT
Frame Size090/100

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size090/100
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)195
Length (mm)197
