SEW Force Vent Fan DT 112/132-2 Brake RBK
SEW Force Vent Fan DT 112/132-2 Brake RBK SEW Force Vent Fan DT 112/132-2 Brake RBK RBK Terminal Connections

SEW Force Vent Fan DT 112/132-2 Brake RBK

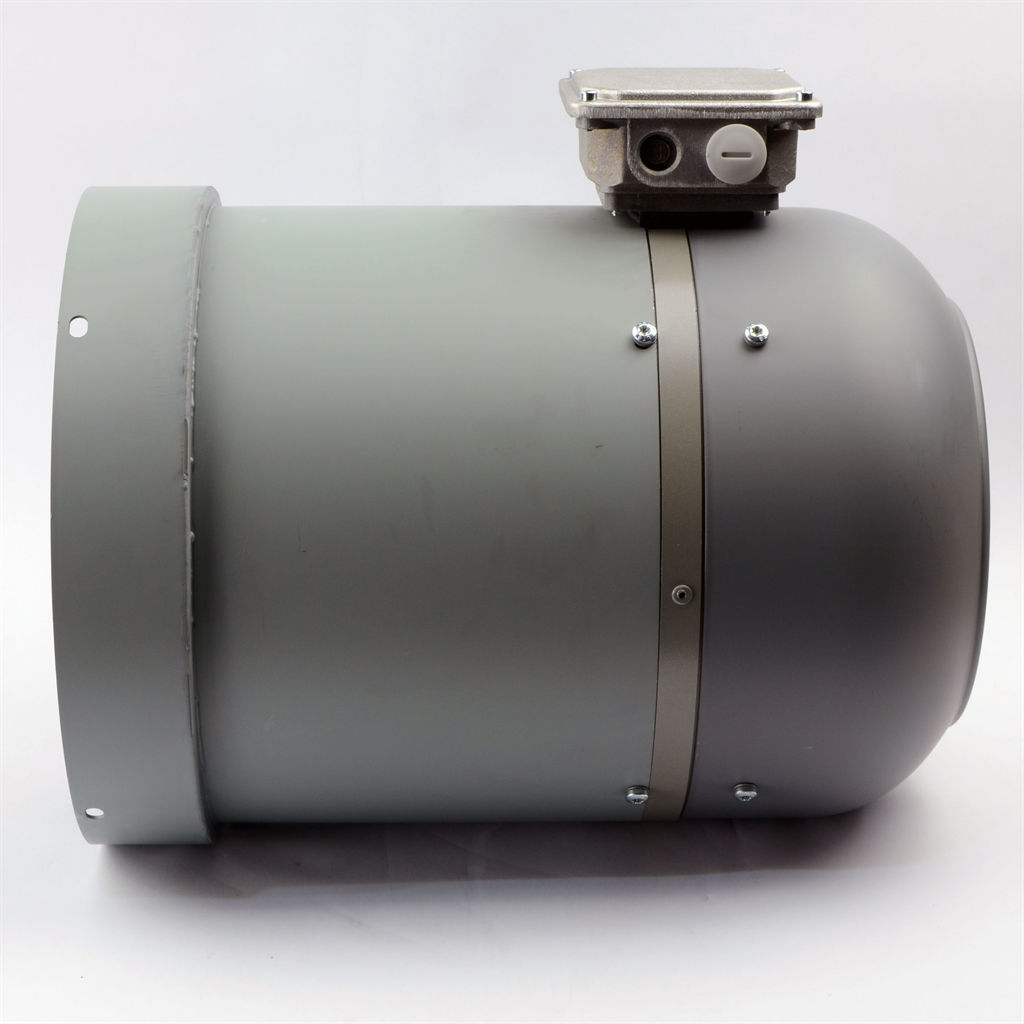

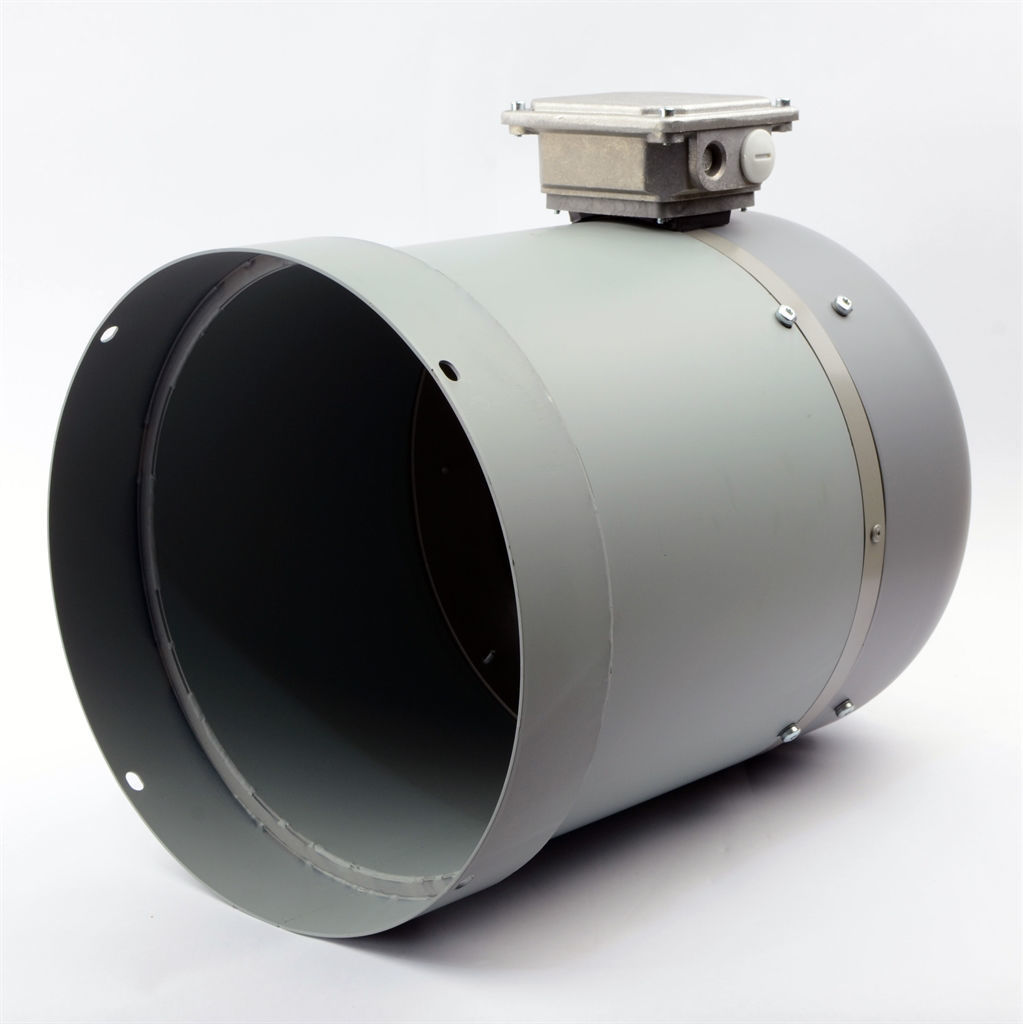

Forced Ventilation Fan 112/132 S RBK to fit SEW DT electric motors with brake and an internal diameter of 219mm.
Manufacturer: Axis Controls
SKU: FV SEW 112 0K 219 309
£230.66 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV SEW 112 0K 219 309
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorSEW
SeriesDT
Frame Size112/132

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size100/112
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)219
Length (mm)309
