SEW Force Vent Fan DT 071/080-2 Brake RBK
SEW Force Vent Fan DT 071/080-2 Brake RBK SEW Force Vent Fan DT 071/080-2 Brake RBK RBK Terminal Connections

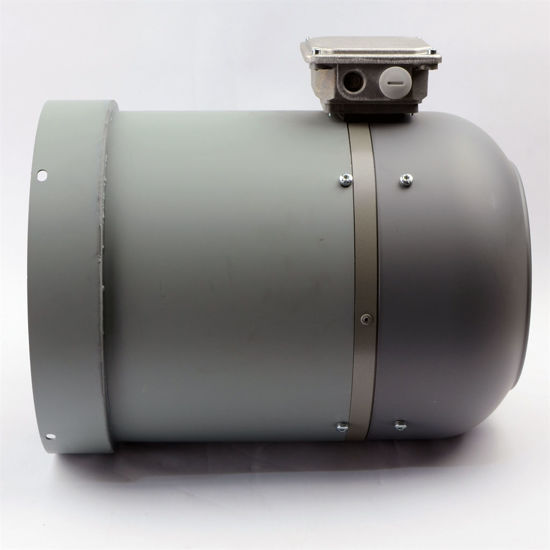

SEW Force Vent Fan DT 071/080-2 Brake RBK

Forced Ventilation Fan 071/080 VS RBK to fit SEW DT electric motors with brake and an internal diameter of 145mm.
Manufacturer: Axis Controls
SKU: FV SEW 071 0K 145 245
£217.71 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV SEW 071 0K 145 245
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorSEW
SeriesDT
Frame Size071/080

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

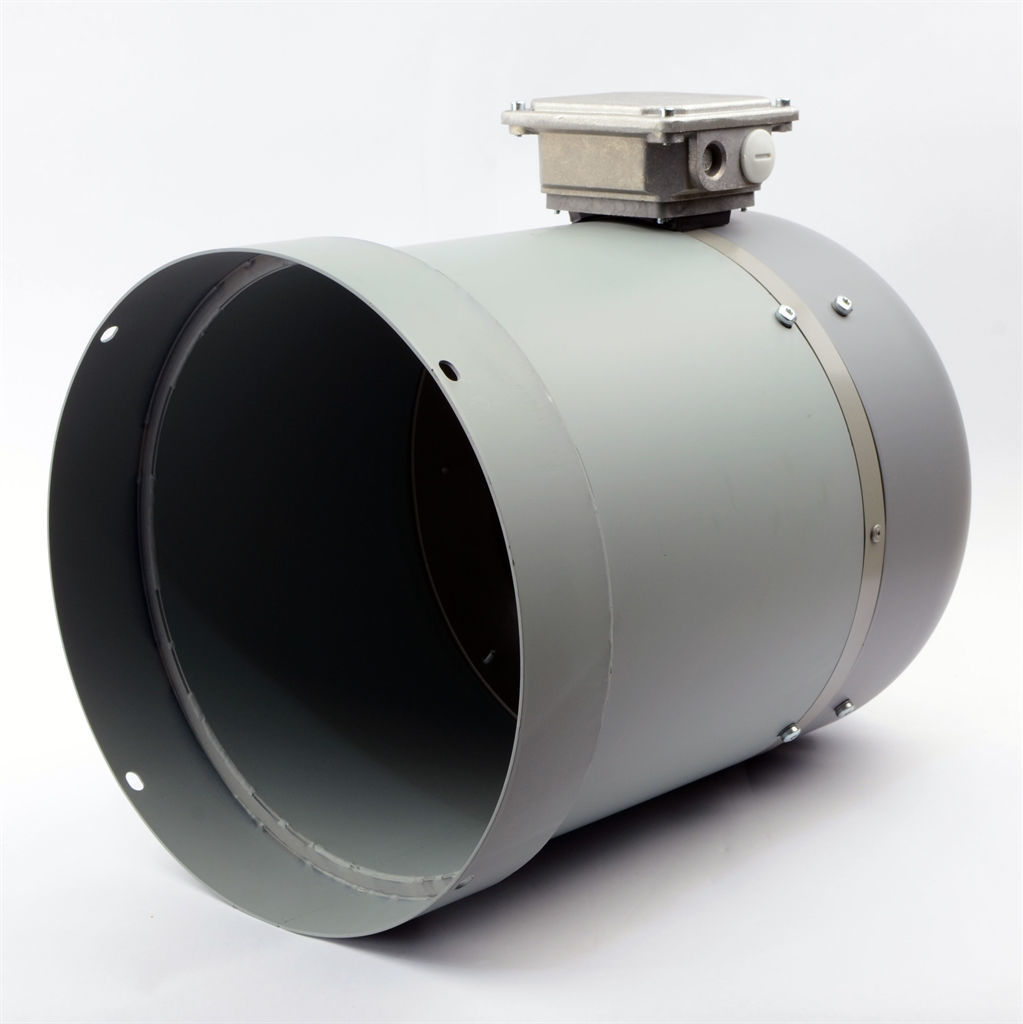

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size071/080
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)145
Length (mm)245
