SEW Force Vent Fan DR 090-2 Brake RBK

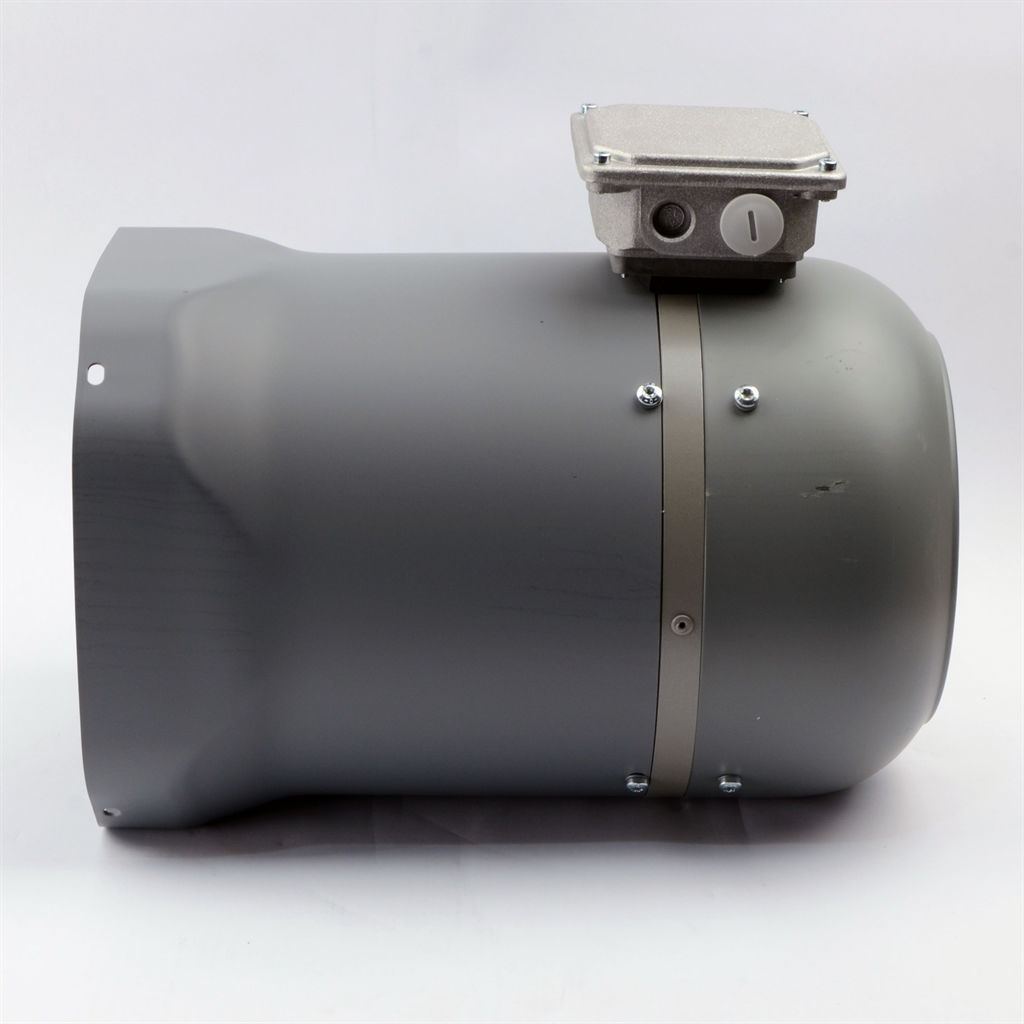

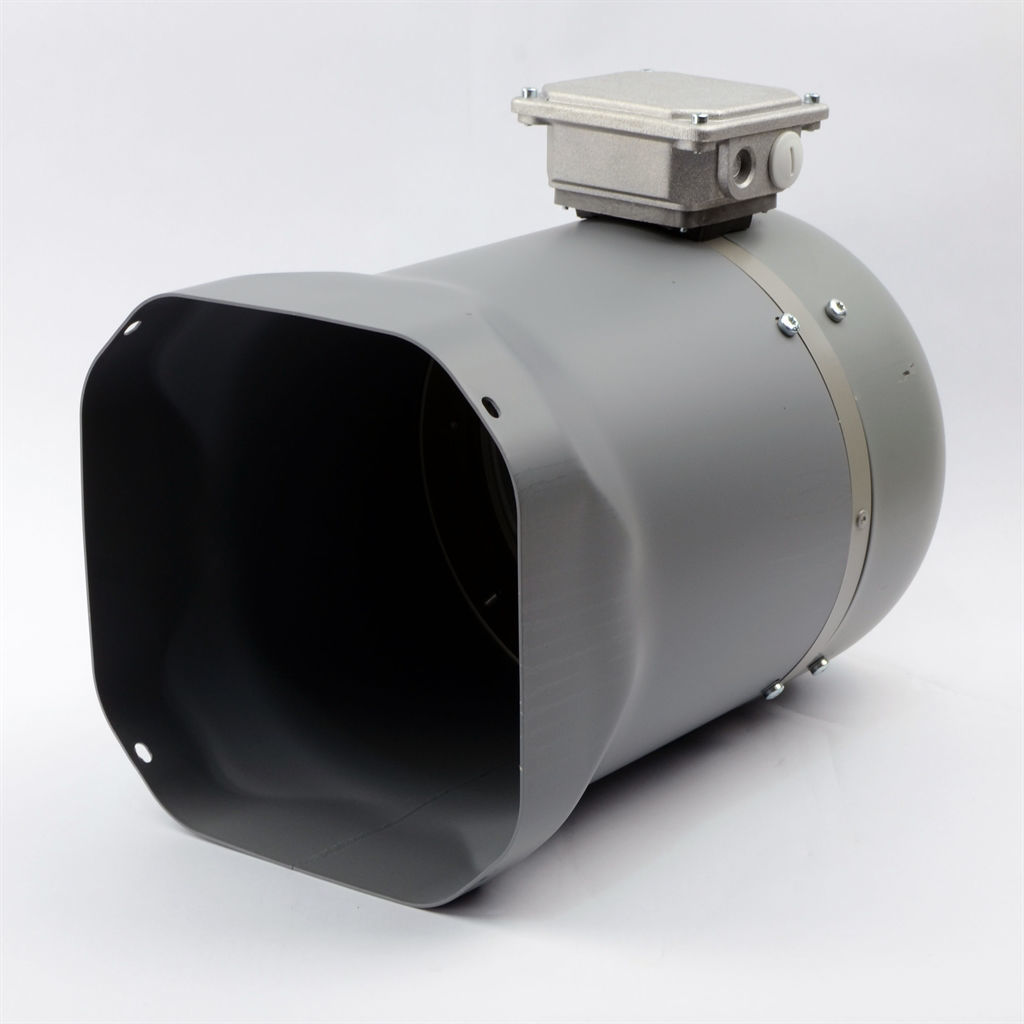

Forced Ventilation Fan 090 RBK to fit SEW DR electric motors with brake and an internal diameter of 203mm.
Manufacturer: Axis Controls
SKU: FV SEW 090 0K 203 285
£247.78 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV SEW 090 0K 203 285
IP RatingIP66

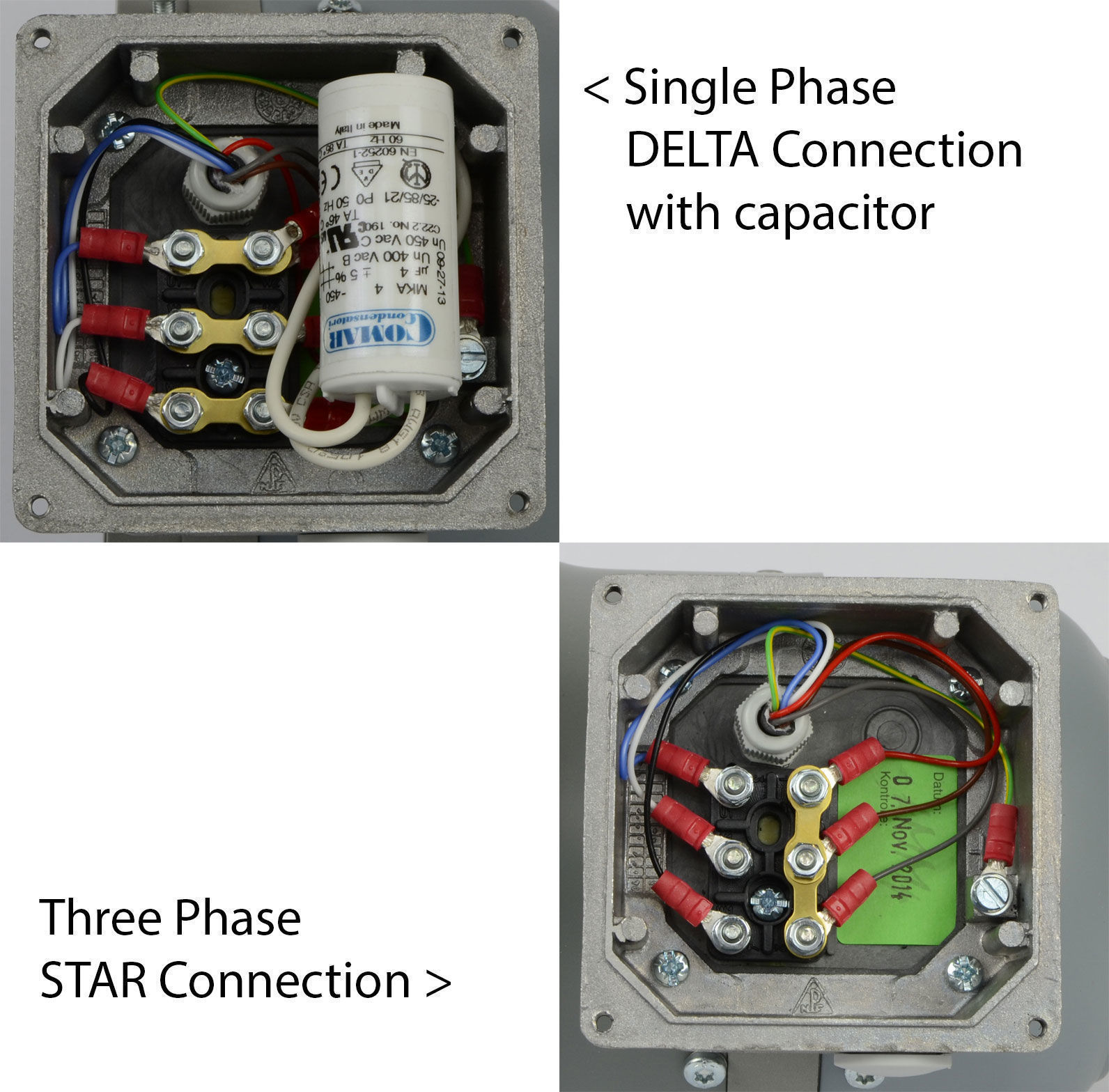

Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorSEW
SeriesDR
Frame Size90

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size090
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)203
Length (mm)285
