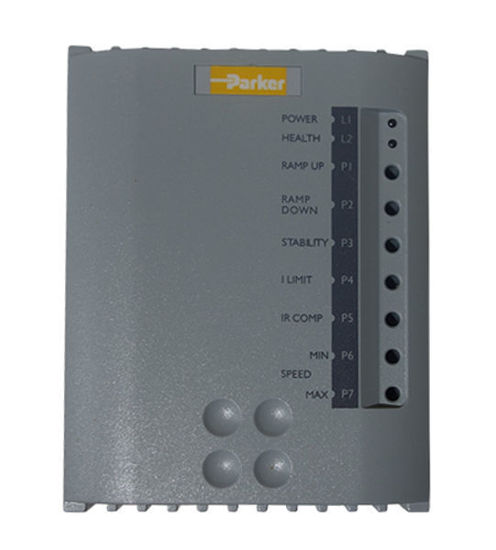

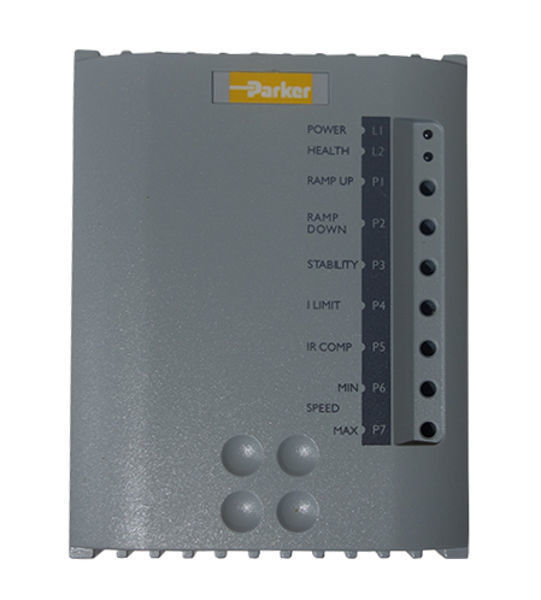

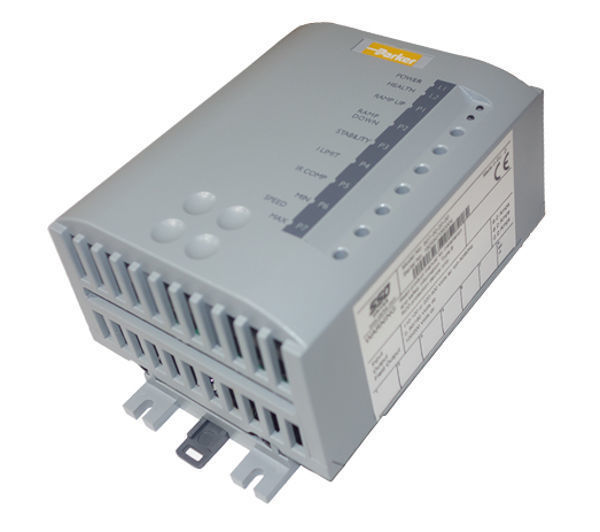

Parker SSD Drives 507 DC Motor Speed Controller

Parker 507 DC Drive. Non isolated thyristor drive designed for speed or torque control of shunt wound or permanent magnet DC motors.

Dimensions : H.140 W.105 D.80mm

Supply voltage : 110V AC : Armature current 0.5 - 6A, Armature voltage 90V DC
                          230V AC : Armature current 0.5 - 6A, Armature voltage 180V DC

Switch Selectable Features
Tacho / armature voltage feedback
Speed calibration
Supply voltage - 110 / 230V AC
Current calibration

Potentiometer Adjustment
Maximum speed
Minimum speed
Acceleration ramp ( 1 - 15s )
Deceleration ramp ( 1 - 15s )
Speed stability
IR compensation
Current limit ( 0 - 100% )

DOCUMENT DOWNLOADS

• Parker 506 / 507 / 508 Catalogue (1.9 MB)
• Parker 506 / 507 / 508 User Manual (579 KB)
