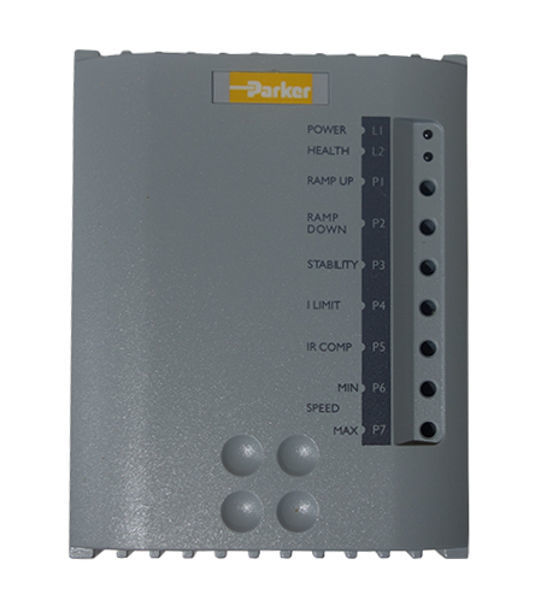

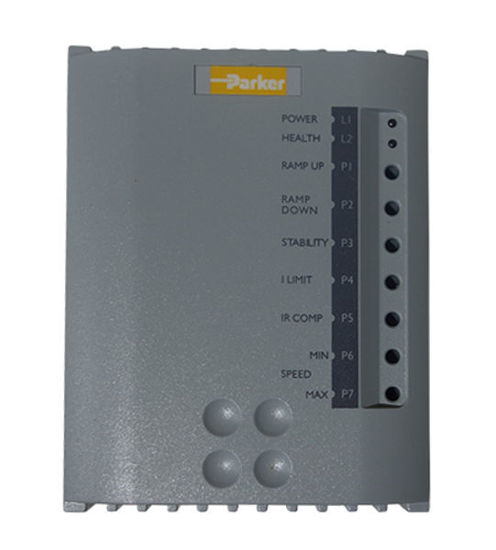

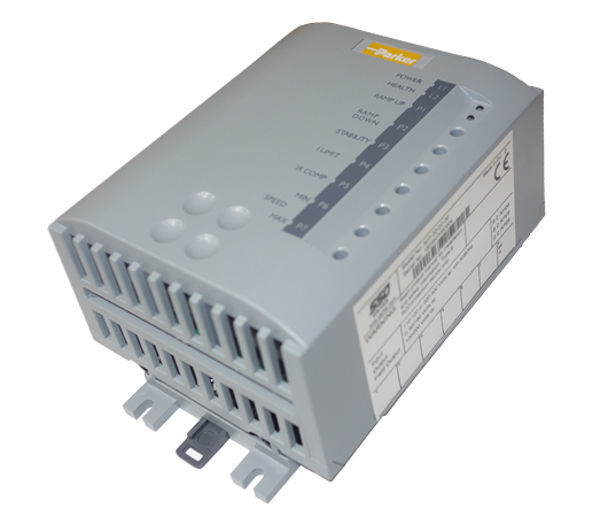

Parker SSD Drives 506 DC Motor Speed Controller

Parker 506 DC Drive. Non isolated thyristor drive designed for speed or torque control of shunt wound or permanent magnet DC motors.

Dimensions : H.140 W.105 D.80mm

Supply voltage : 110V AC : Armature current 0.25 - 3A, Armature voltage 90V DC
                          230V AC : Armature current 0.25 - 3A, Armature voltage 180V DC

Switch Selectable Features
Tacho / armature voltage feedback
Speed calibration
Supply voltage - 110 / 230V AC
Current calibration

Potentiometer Adjustment
Maximum speed
Minimum speed
Acceleration ramp ( 1 - 15s )
Deceleration ramp ( 1 - 15s )
Speed stability
IR compensation
Current limit ( 0 - 100% )
