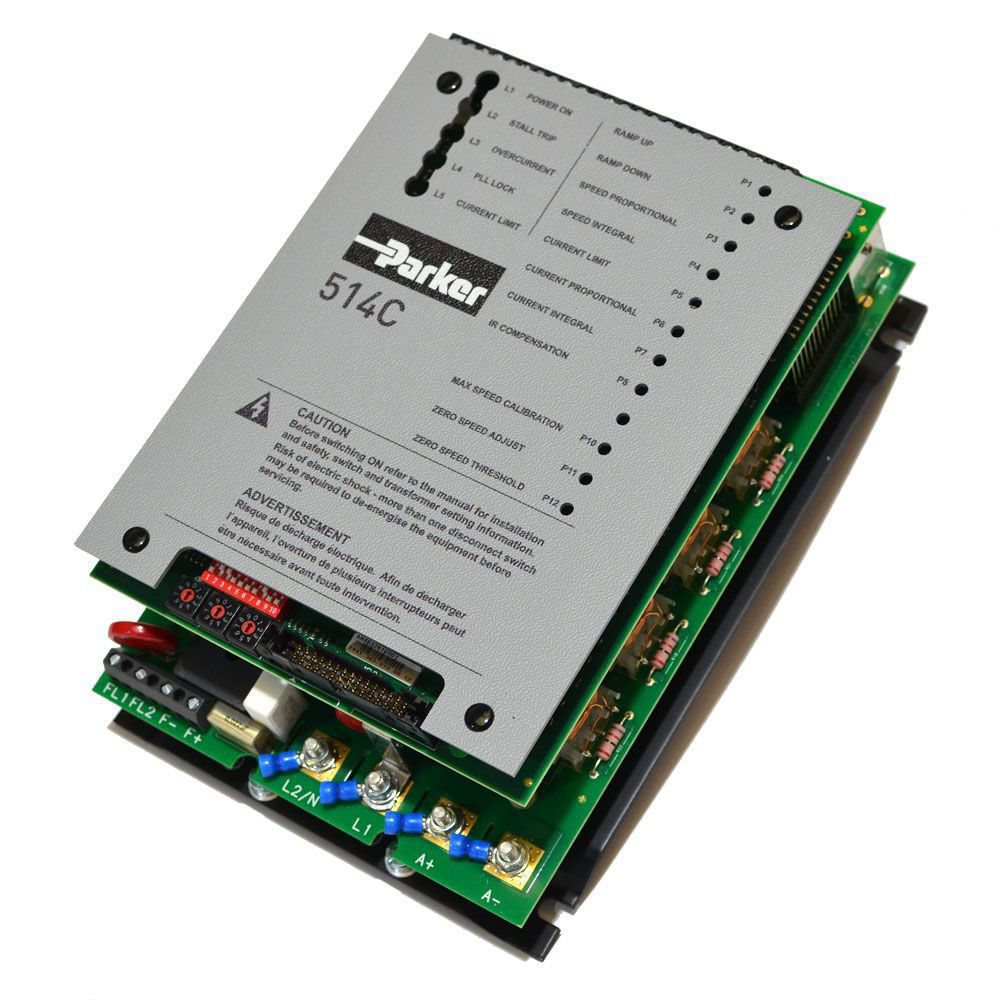

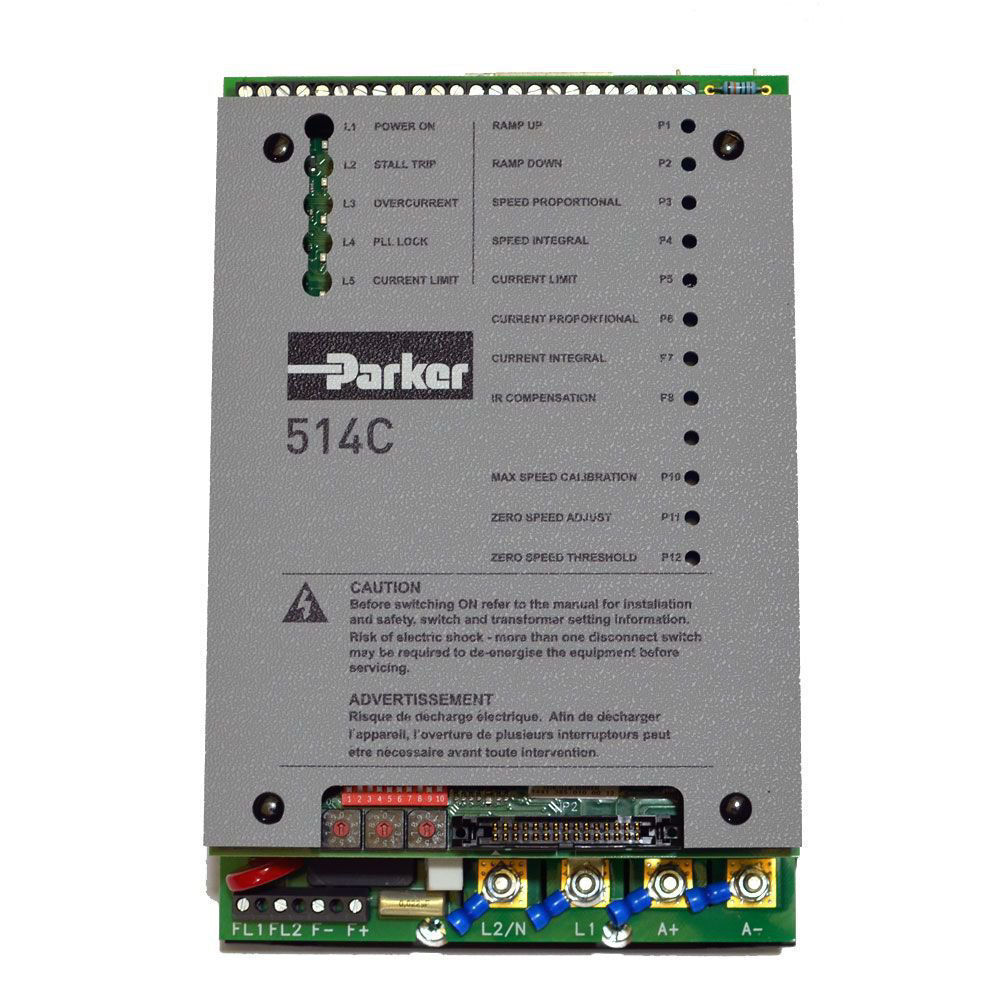

Parker 514C-32 DC Drive 32 Amp

32 Amp Isolated DC Drive. 4 Quadrant Control.

• Fully isolated control circuits
• Onboard power contactor logic
• Multiple input speed and current setpoints
• CE marked & EMC compliant
• User configurable for 110V / 230V / 400V / 480V AC supplies
• Extremely linear control loops
• 3 Amp DC field output

Dimensions : H.264 W.165 D.200mm

Potentiometer Adjustment
Maximum speed
Minimum speed
Current limit
Acceleration ramp ( 1 - 40s )
Deceleration ramp ( 1 - 40s )
Current loop gain proportional
Current loop gain integral
Speed loop gain proportional
Speed loop gain integral
IR compensation
Zero speed offset
Zero speed threshold

Digital Inputs
Run
Enable

Digital Outputs
Healthy
Zero speed / setpoint
Stall override

Analogue Inputs
Speed setpoint ramped
Positive trim
Negative trim
Current limit
Current demand
Tacho feedback
Thermistor
Minimum speed

Analogue Outputs
Setpoint ramp
Total setpoint
Inverted total setpoint
Speed
Current demand
Current actual
+10V reference
-10V reference

Part No: 514C-32-00-00-00

DOCUMENT DOWNLOADS

• Parker 514C Catalogue (1.9 MB)
• Parker 514C User Manual (917 KB)
