Marelli Force Vent Fan MAA 071 RBK Enc
Marelli Force Vent Fan MAA 071 RBK Enc Marelli Force Vent Fan MAA 071 RBK Enc RBK Terminal Connections

Marelli Force Vent Fan MAA 071 RBK Enc

Forced Ventilation Fan 071 RBK to fit Marelli MAA electric motors with encoder and an internal diameter of 136mm.
Manufacturer: Axis Controls
SKU: FV MAA 071 0K 136 260
£177.86 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

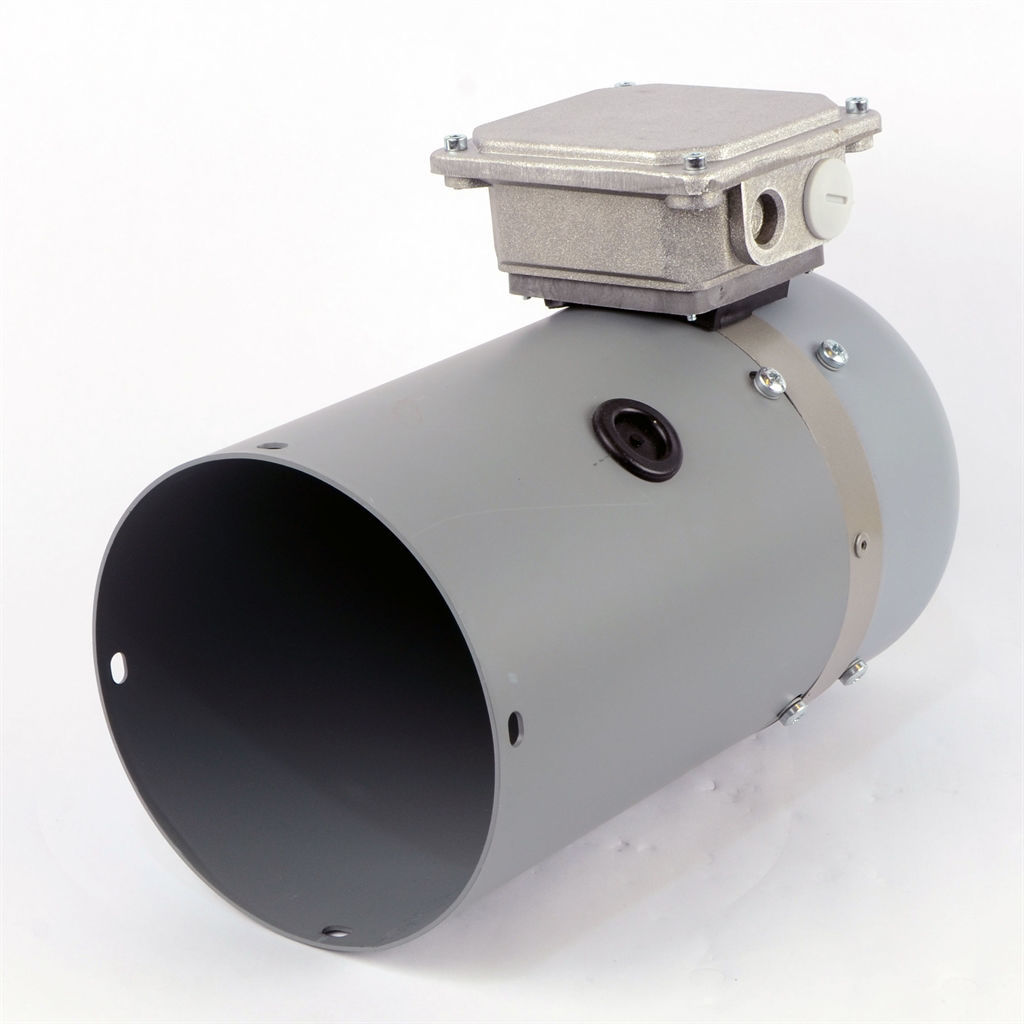

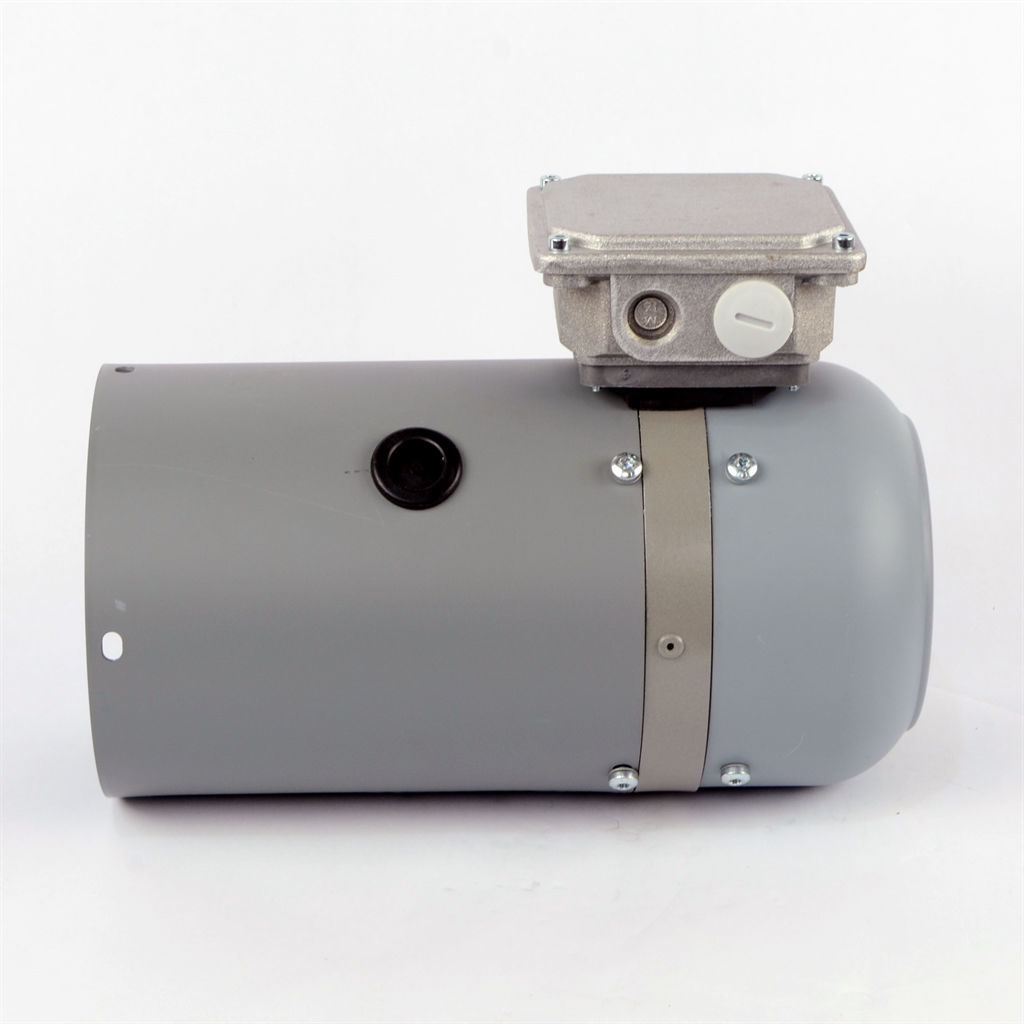

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV MAA 071 0K 136 260
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorMarelli
SeriesMAA
Frame Size71


DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size071
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)136
Length (mm)260
