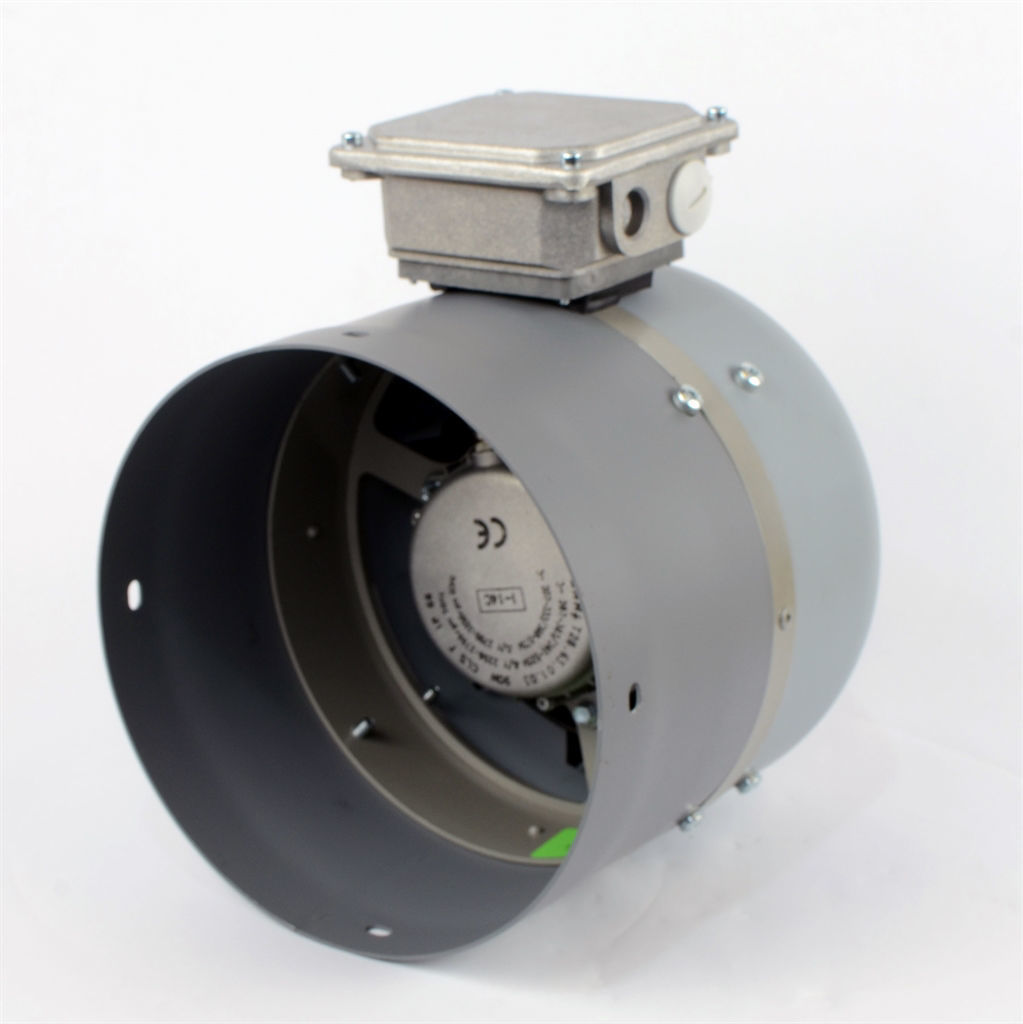

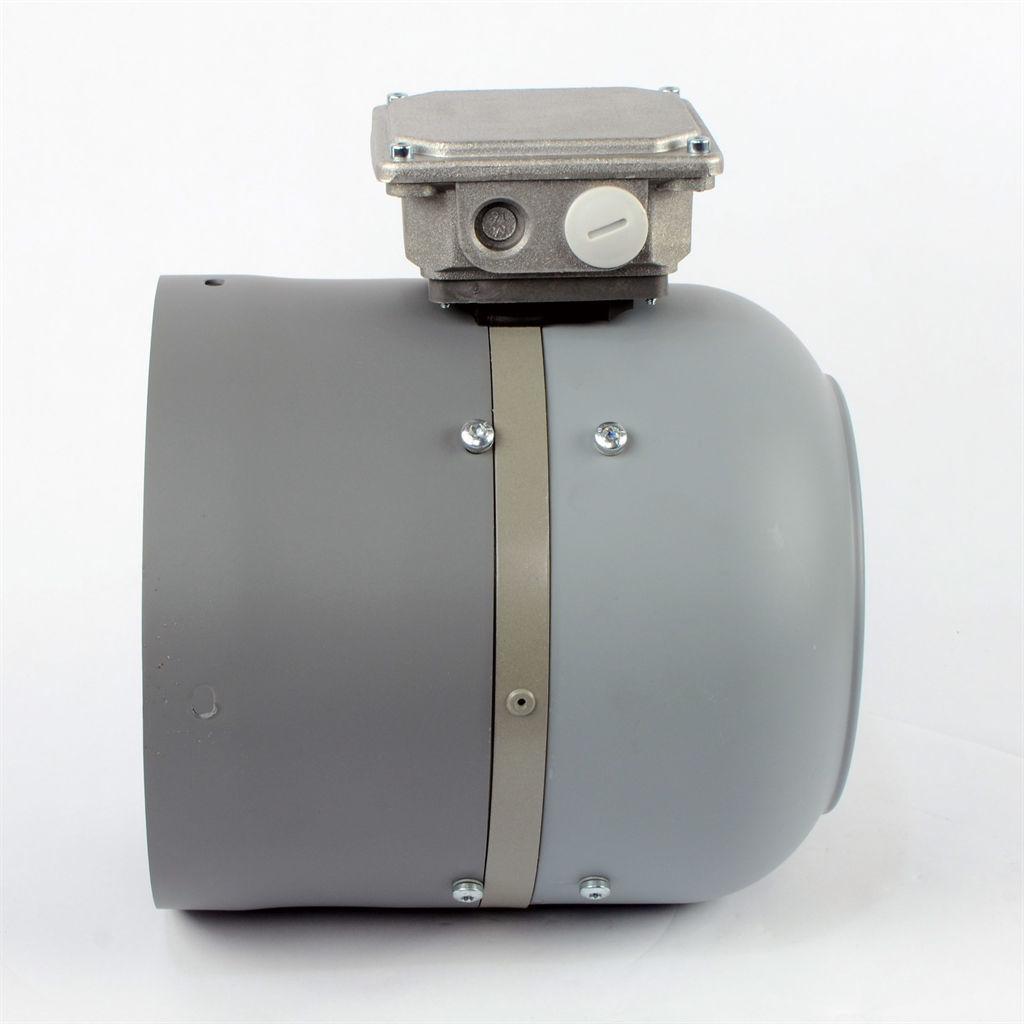

Marelli Force Vent Fan MA 100/112-2 RBK
Marelli Force Vent Fan MA 100/112-2 RBK Marelli Force Vent Fan MA 100/112-2 RBK RBK Terminal Connections

Marelli Force Vent Fan MA 100/112-2 RBK

Forced Ventilation Fan 100/112-2 RBK to fit Marelli MA electric motors with an internal diameter of 195mm.
Manufacturer: Axis Controls
SKU: FV MAR 100 0K 195 209
£199.68 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV MAR 100 0K 195 209
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorMarelli
SeriesMA
Frame Size100/112

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size100/112
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)195
Length (mm)209
