Marelli Force Vent Fan MA 090-2 RBK
Marelli Force Vent Fan MA 090-2 RBK Marelli Force Vent Fan MA 090-2 RBK RBK Terminal Connections

Marelli Force Vent Fan MA 090-2 RBK

Forced Ventilation Fan 090-2 RBK to fit Marelli MA electric motors with an internal diameter of 176mm.
Manufacturer: Axis Controls
SKU: FV MAR 090 0K 176 191
List price: £238.00 excl VAT
£178.50 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV MAR 090 0K 176 191
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorMarelli
SeriesMA
Frame Size90

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

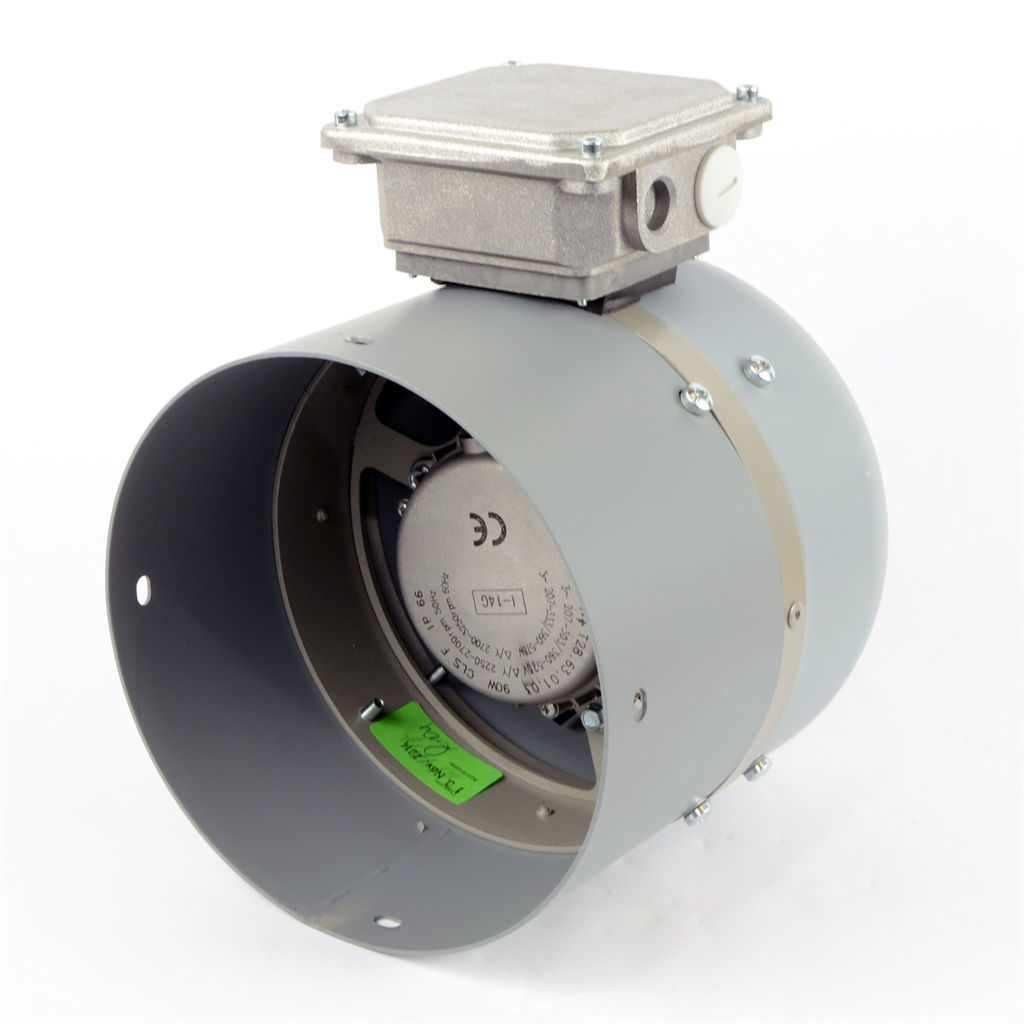

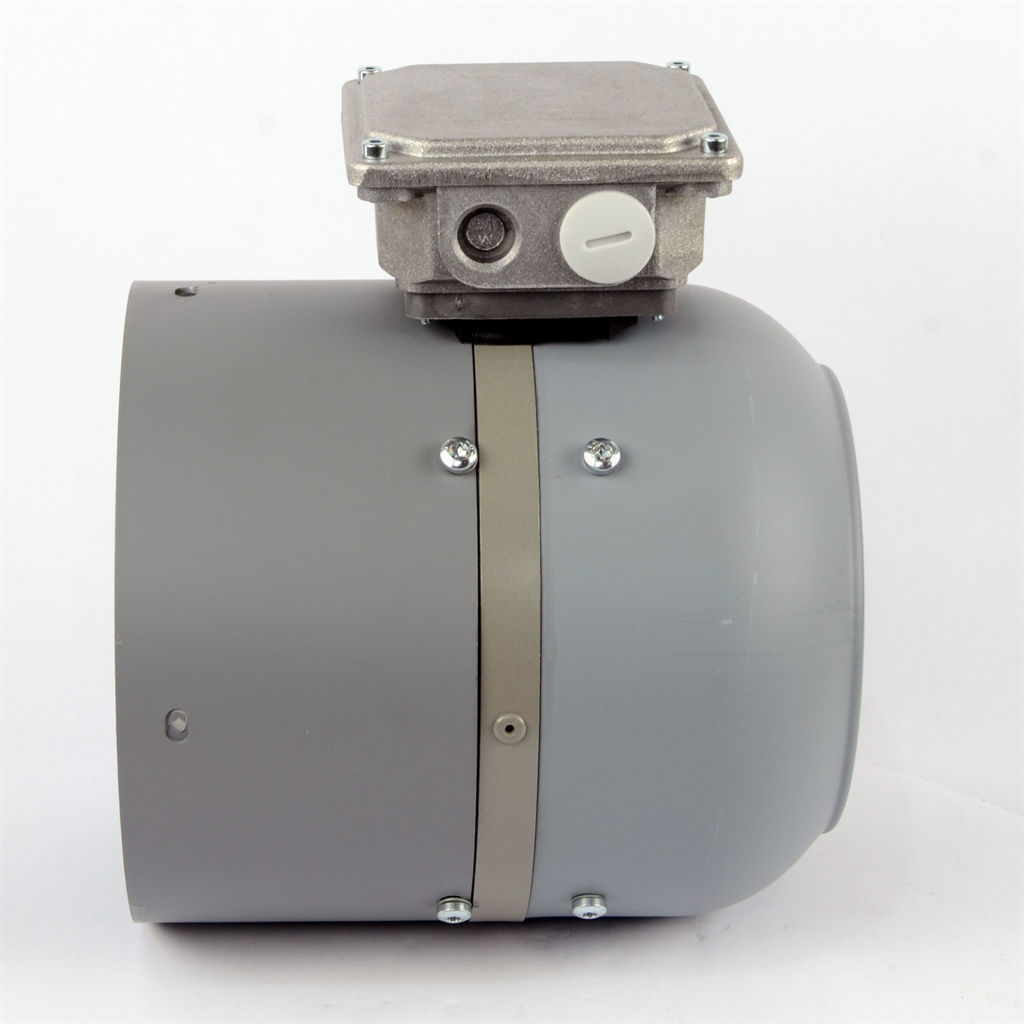

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size090
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)176
Length (mm)191
