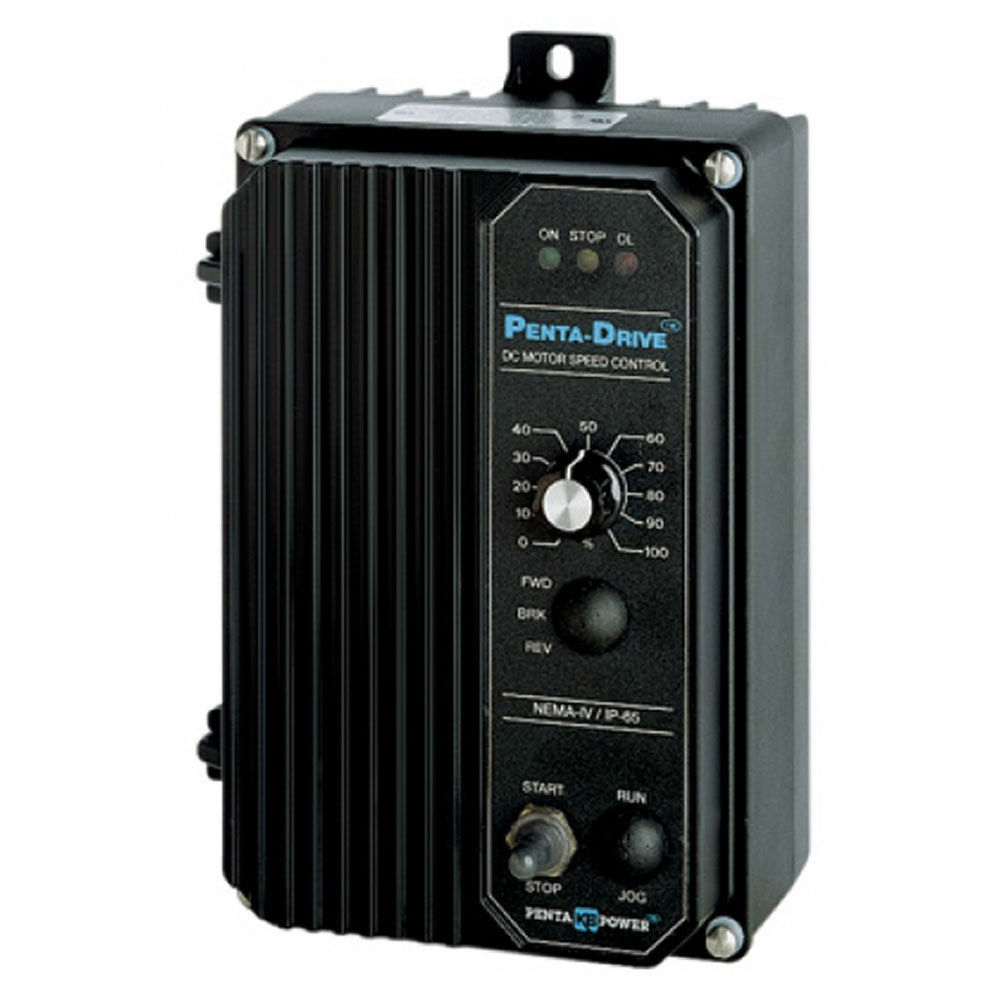

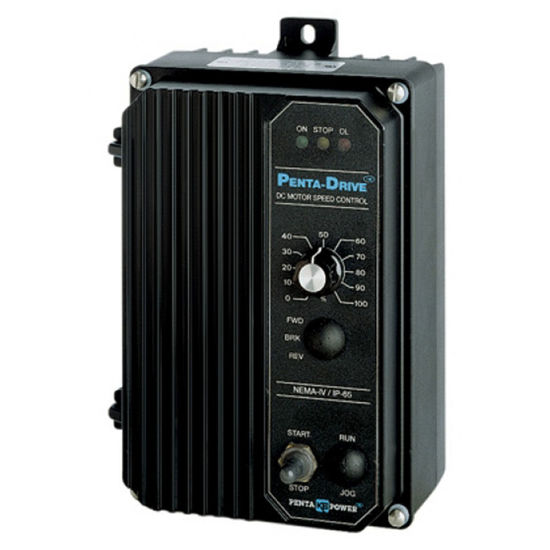

KBPC-225D Black IP65 DC Motor Speed Controller

The KBPC series of IP65 (NEMA-4X) SCR DC motor speed and torque controllers are designed for applications requiring washdown and watertight integrity. The housing is constructed of die cast aluminium protected with an acrylic coating. Exclusive short circiut and timed current limit circuitry prevents motor burnout and demagnetization of PM motors.

Selectable features on the main board include :-
Motor current range
Input signal voltage
Armature or Tacho feedback

Model Number : KBPC-225D
Part Number : 9391
Description : Black IP65 DC Motor Speed Controller
Manufacturer : KB Electronics

Line Supply Voltage : 230V AC
Armature Voltage : 180V DC
Maximum DC Output Current :15 Amps

This product may also be known as kb9391, kb-9391, kbpc225d

DOCUMENT DOWNLOADS

• KBPC 225D Datasheet (179KB)
• KBPC 225D User Manual (809 KB)
