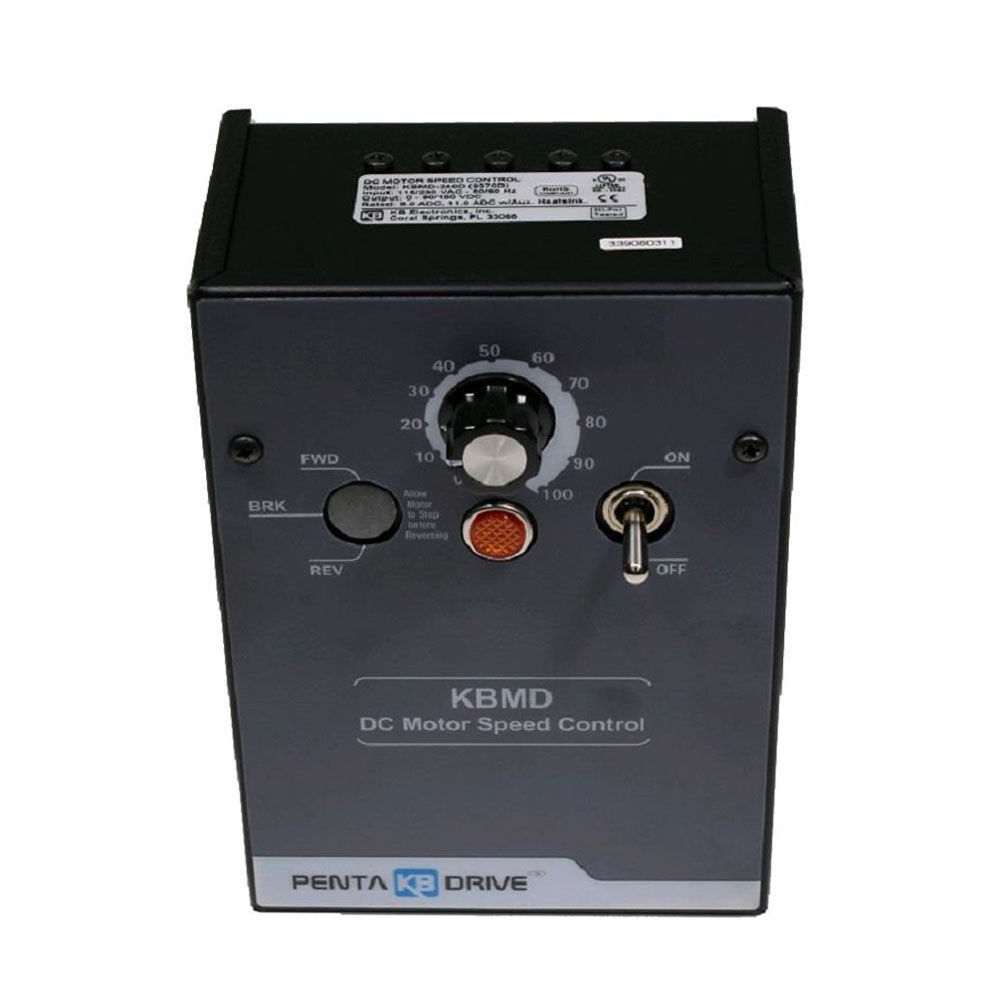

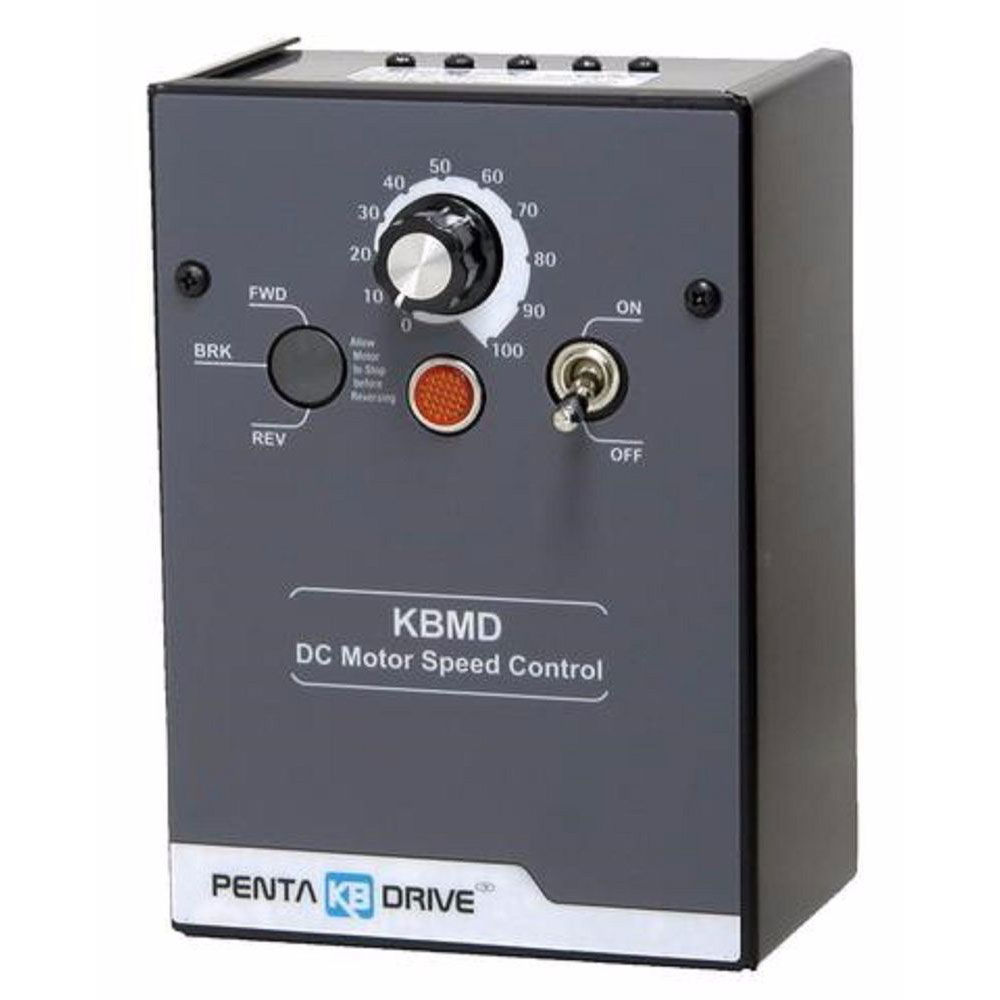

KBMD-240D DC Motor Speed Controller

KBMD-240D ( 9370 ) DC Motor Speed Controller 115/230V AC Input, 90/180V DC Output, 8 / 11 Amps

SKU: KBMD-240D (9370)

£153.00 excl VAT

Qty:

A separately ordered horsepower resistor must be fitted to this DC drive for it to operate. See the table below to select the correct resistor.

Manufacturer : KB Electronics
Model Number : KBMD-240D
Part Number : 9370
AC Input Voltage : 115/230V AC
Max DC Output : 90/180V DC
Max Power No Heatsink @ 180V : 1.5 horsepower (1.13 kW) 8 Amps
Max Power No Heatsink @ 90V : 3/4 horsepower (0.56 kW) 8 Amps
Max Power c/w Heatsink @ 180V : 2 horsepower (1.5 kW) 11 Amps
Max Power c/w Heatsink @ 90V : 1 horsepower (0.75 kW) 11 Amps

This product may also be known as : DC drive, DC variable speed drive, DC motor drive, DC motor speed controller, DC drives, DC variable speed drives, DC motor drives, DC motor speed controllers. kb9370, kb-9370, kbmd240d

DOCUMENT DOWNLOADS

PLUG-IN HORSEPOWER RESISTOR® CHART

Motor Horsepower Range**		Plug-in-Horsepower Resistor®
Armature Voltage 90-130 VDC	Armature Voltage 180 VDC	Resistance Value (ohms)
1/100 - 1/50	1/50 - 1/25	1.0
1/50 -1/30	1/25 - 1/15	.51
1/30 - 1/20	1/15 - 1/10	.35
1/20 - 1/12	1/10 - 1/6	.25
1/12 - 1/8	1/6 - 1/4	.18
1/8 - 1/5	1/4 - 1/3	.1
1/4	1/2	.05
1/3	3/4	.035
1/2	1	.025
3/4*	11⁄2*	.015
1*	2*	.01
11⁄2*	3*	.006
* Use with Auxiliary Heatsink. ** For overlapping motor horsepower range use lower value Plug-in Horsepower Resistor®.

KBMD-240D DC Motor Speed Controller

KB DC Resistor & Fuse Kit

Auxiliary Heatsink

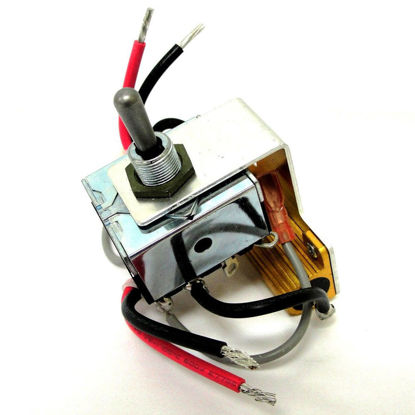

Forward Stop Reverse Switch
