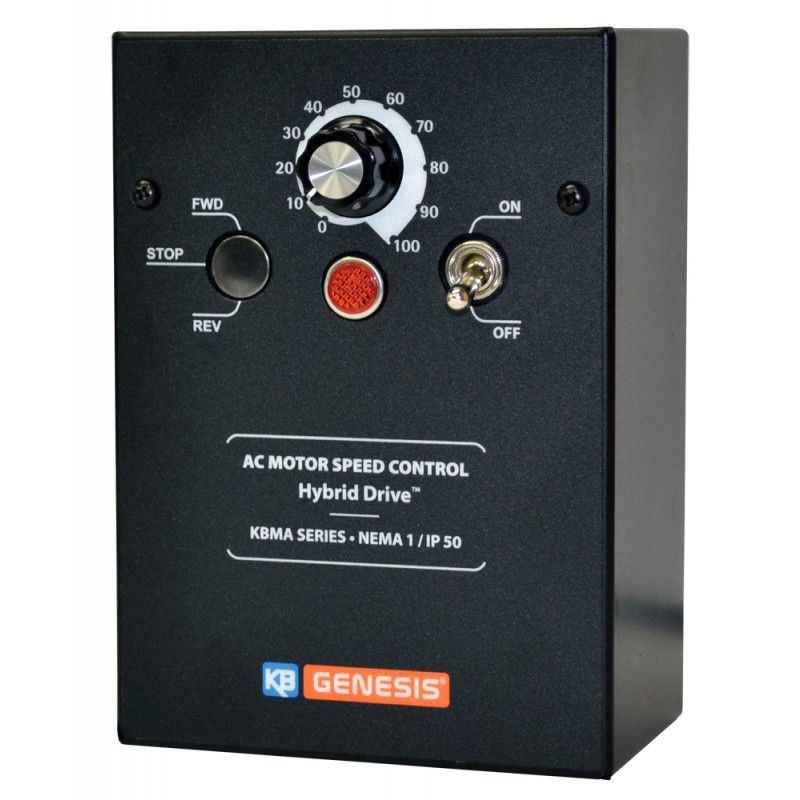

KBMA-24DF IP40 AC Variable Speed Drive

The KB Electronics KBMA Series of VFDs consist of 2 inverter models rated from 1/8 through 1.0 horsepower housed in a NEMA-1/(IP-50) aluminium enclosure. The KBMA-24DF contains a built-in AC line Class A RFI/EMI filter. Jumper selectable functions and simple trimpot adjustments make the KBMA Series quick and easy to use. For OEMs these Drives can be customised for many demanding applications.

• Manufacturer : KB Electronics
• Model Number : KBMA-24DF
• Part Number : 9534
• Power Rating : 0.75 kW (1 H.P.)
• Input Voltage : 230V, 1 Phase
• Output Current : 3.6 Amps
• Dimensions : H.178 x W.126 x D.81 mm
• Weight : 1.12 Kg
• IP Class : IP40
