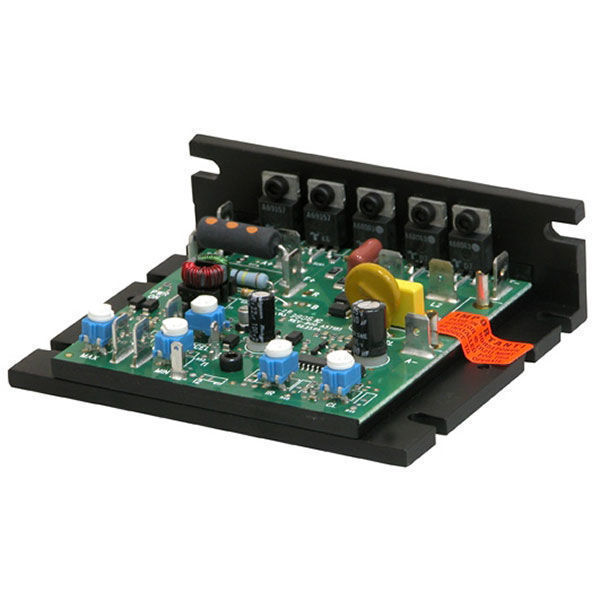

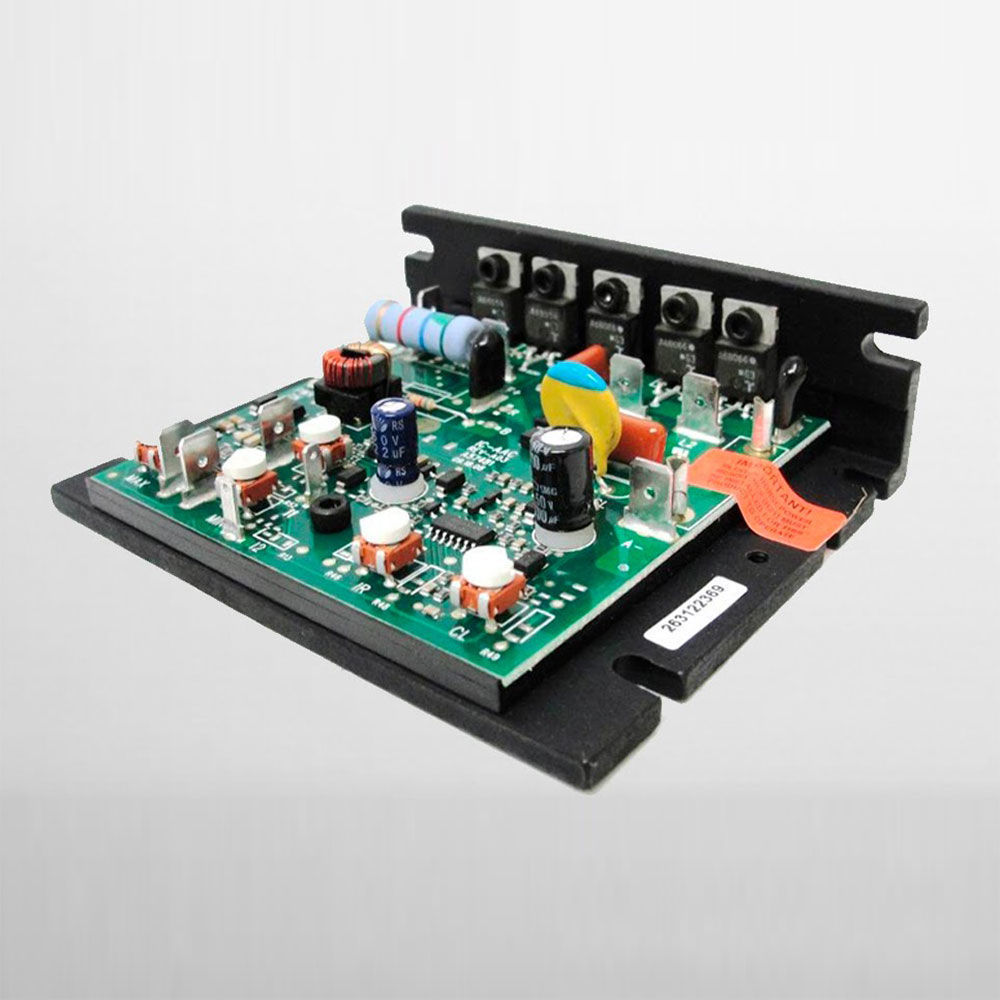

KBIC-240DS DC Motor Speed Controller
KBIC-240DS (9423) DC Motor Speed Controller 115/230V AC Input, 90/180V DC Output, 6 Amps without auxiliary heatsink, 12 Amps with auxiliary heatsink
A separately ordered horsepower resistor must be fitted to this DC drive for it to operate. See the table below to select the correct resistor.
Manufacturer : KB Electronics
Model Number : KBIC-240DS
Part Number : 9423
AC Input Voltage : 115/230V AC
Max DC Output : 90 DC
Max Power No Heatsink @ 90V : 1/2 horsepower (0.37 kW) 6 Amps
Max Power c/w Heatsink @ 90V : 1 horsepower (0.75 kW) 12 Amps
This product may also be known as : DC drive, DC variable speed drive, DC motor drive, DC motor speed controller, DC drives, DC variable speed drives, DC motor drives, DC motor speed controllers, kb-9423, kb9423, kbic240ds.
This product may also be known as : DC drive, DC variable speed drive, DC motor drive, DC motor speed controller, DC drives, DC variable speed drives, DC motor drives, DC motor speed controllers, kb-9464, kb9464, kbic240d.
DOCUMENT DOWNLOADS
PLUG-IN HORSEPOWER RESISTOR® CHART
| Motor Horsepower Range** | Plug-in-Horsepower
Resistor® |
Armature Voltage
90-130 VDC | Armature Voltage
180 VDC | Resistance Value
(ohms) |
| 1/100 - 1/50 | 1/50 - 1/25 | 1.0 |
| 1/50 -1/30 | 1/25 - 1/15 | .51 |
| 1/30 - 1/20 | 1/15 - 1/10 | .35 |
| 1/20 - 1/12 | 1/10 - 1/6 | .25 |
| 1/12 - 1/8 | 1/6 - 1/4 | .18 |
| 1/8 - 1/5 | 1/4 - 1/3 | .1 |
| 1/4 | 1/2 | .05 |
| 1/3 | 3/4 | .035 |
| 1/2 | 1 | .025 |
| 3/4* | 11⁄2* | .015 |
| 1* | 2* | .01 |
| 11⁄2* | 3* | .006 |
* Use with Auxiliary Heatsink.
** For overlapping motor horsepower range use lower value
Plug-in Horsepower Resistor®. |
