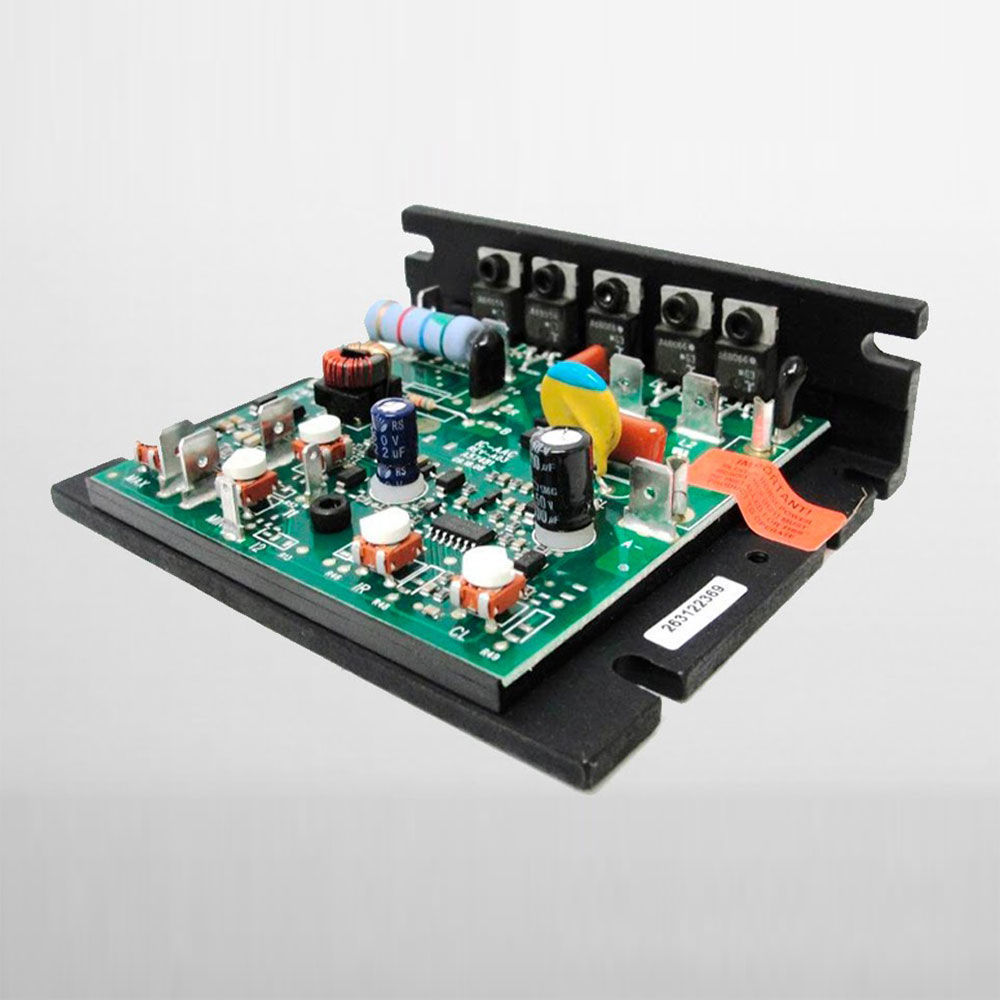

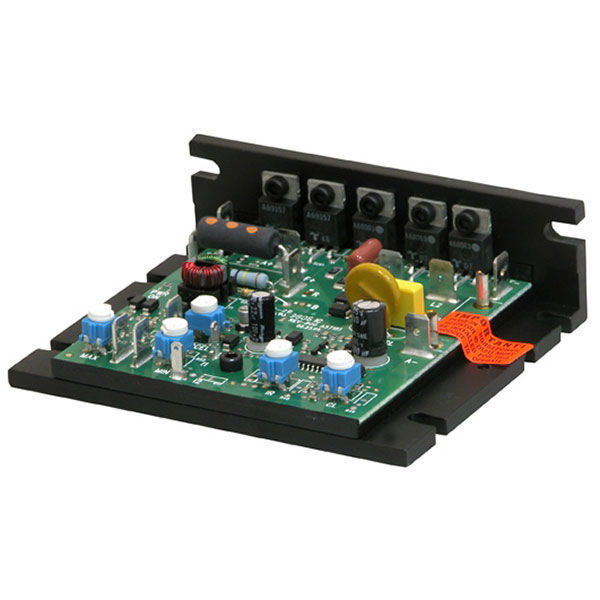

KBIC-240 DC Motor Speed Controller

KBIC-240 ( 9428 ) DC Motor Speed Controller 230V AC Input, 180V DC Output, 6 / 12 Amps

SKU: KBIC-240 (9428)

£100.00 excl VAT

Qty:

A separately ordered horsepower resistor must be fitted to this DC drive for it to operate. See the table below to select the correct resistor.

Manufacturer : KB Electronics
Model Number : KBIC-240
Part Number : 9428
AC Input Voltage : 230V AC
Max DC Output : 180V DC
Max Power No Heatsink : 1 horsepower (0.75 kW) 6 Amps
Max Power c/w Heatsink : 2 horsepower (1.5 kW) 12 Amps

This product may also be known as : DC drive, DC variable speed drive, DC motor drive, DC motor speed controller, DC drives, DC variable speed drives, DC motor drives, DC motor speed controllers, kb-9428, kb9428, kbic240.

DOCUMENT DOWNLOADS

PLUG-IN HORSEPOWER RESISTOR® CHART

Motor Horsepower Range**		Plug-in-Horsepower Resistor®
Armature Voltage 90-130 VDC	Armature Voltage 180 VDC	Resistance Value (ohms)
1/100 - 1/50	1/50 - 1/25	1.0
1/50 -1/30	1/25 - 1/15	.51
1/30 - 1/20	1/15 - 1/10	.35
1/20 - 1/12	1/10 - 1/6	.25
1/12 - 1/8	1/6 - 1/4	.18
1/8 - 1/5	1/4 - 1/3	.1
1/4	1/2	.05
1/3	3/4	.035
1/2	1	.025
3/4*	11⁄2*	.015
1*	2*	.01
11⁄2*	3*	.006
* Use with Auxiliary Heatsink. ** For overlapping motor horsepower range use lower value Plug-in Horsepower Resistor®.
