Economy Force Vent Fan FBI 132/2 S Extended
Economy Force Vent Fan FBI 132/2 S Extended Economy Force Vent Fan FBI 132/2 S Extended Single Phase Terminal Connections

Economy Force Vent Fan FBI 132/2 S Extended

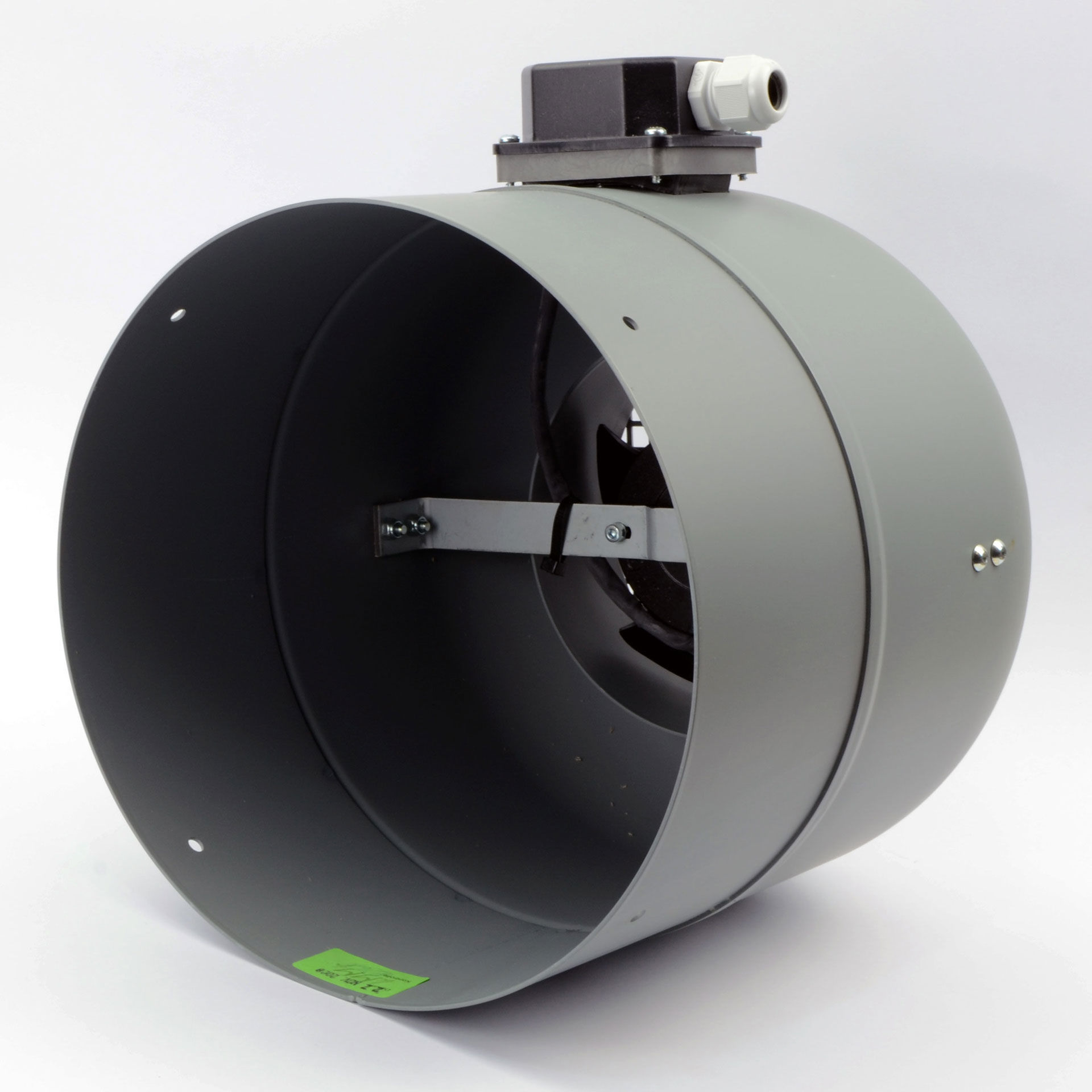

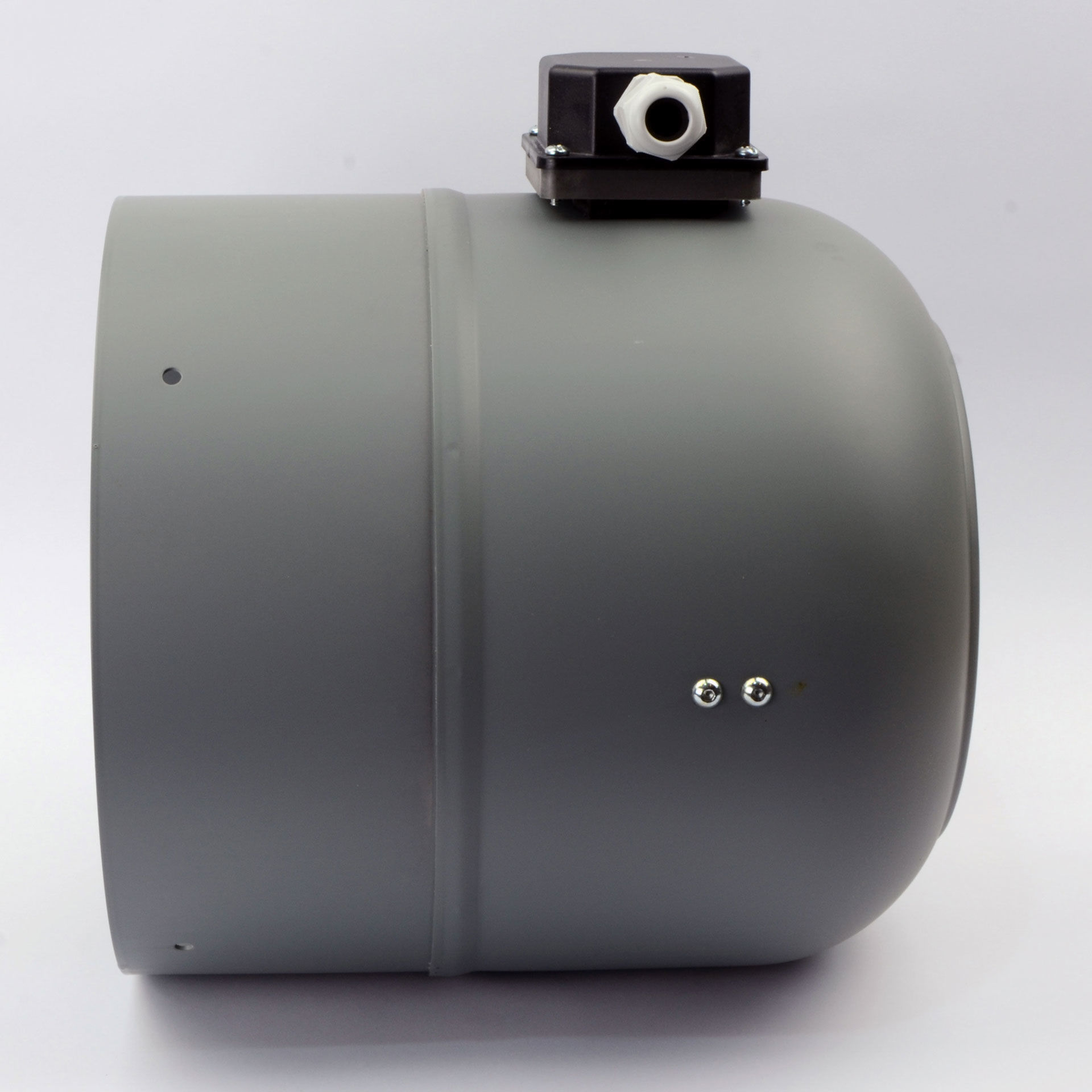

Economy Forced Ventilation Fan with extended cowl FBI 132/2 S to fit electric motors with an internal diameter of 255mm.
Manufacturer: Axis Controls
SKU: FFKMM 132 0S 255 270
£183.75 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

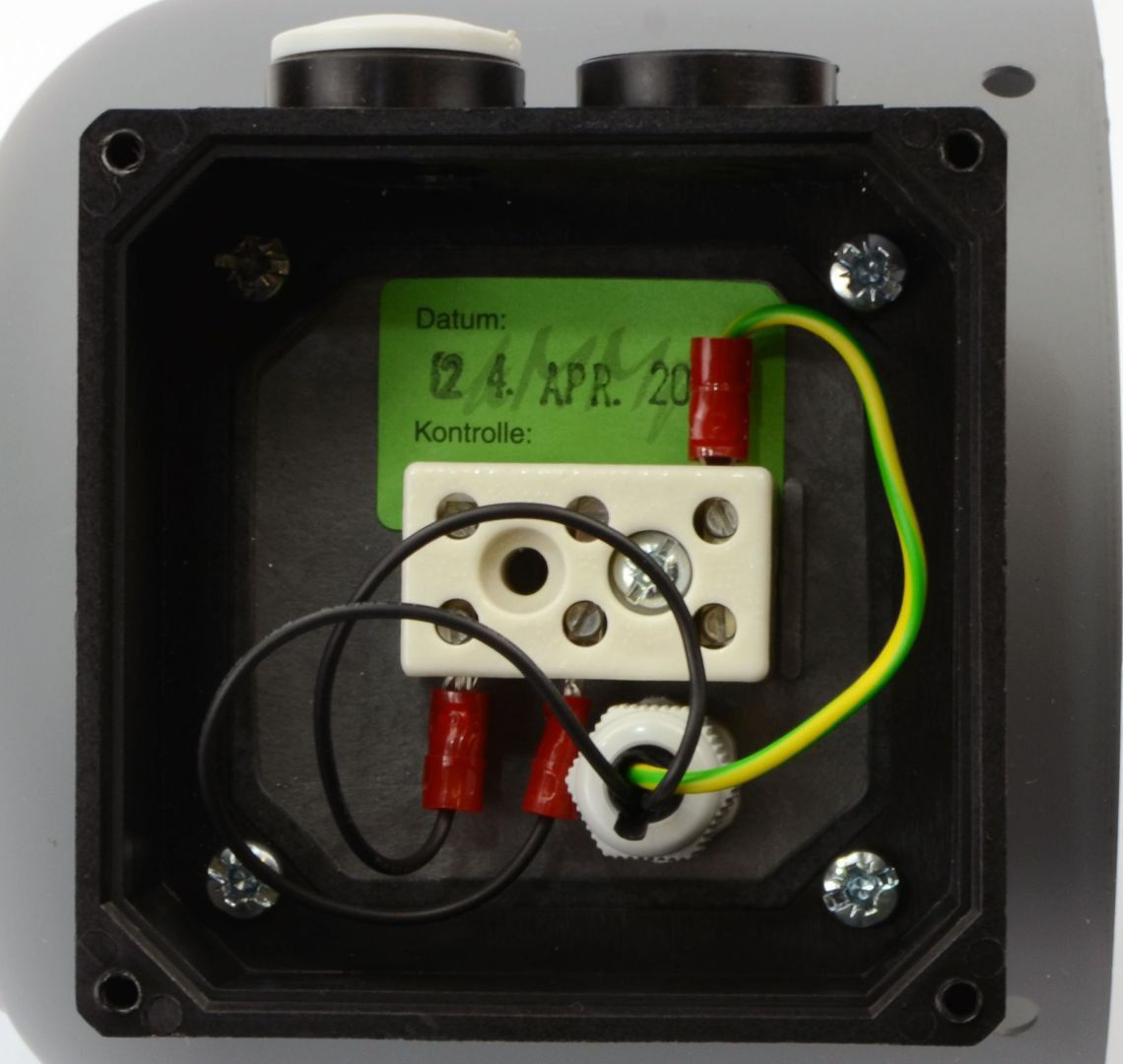

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP55 protection.

Item NumberFFKMM 132 0S 255 270
IP RatingIP55
Airflow @ 50 Hz276 m3/hour
Fan Speed2776 rpm
Noise Level66 dB
Single Phase ConnectionYes
Three Phase ConnectionNo
Fan Power @ 50 Hz34 watts
Amps @ 230V Single Phase 50 Hz0.24
Frame Size132

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size132
Voltage230V AC
Phases1
IP RatingIP55
Internal Ø (mm)255
Length (mm)270
