Economy Force Vent Fan FBI 112/2 S

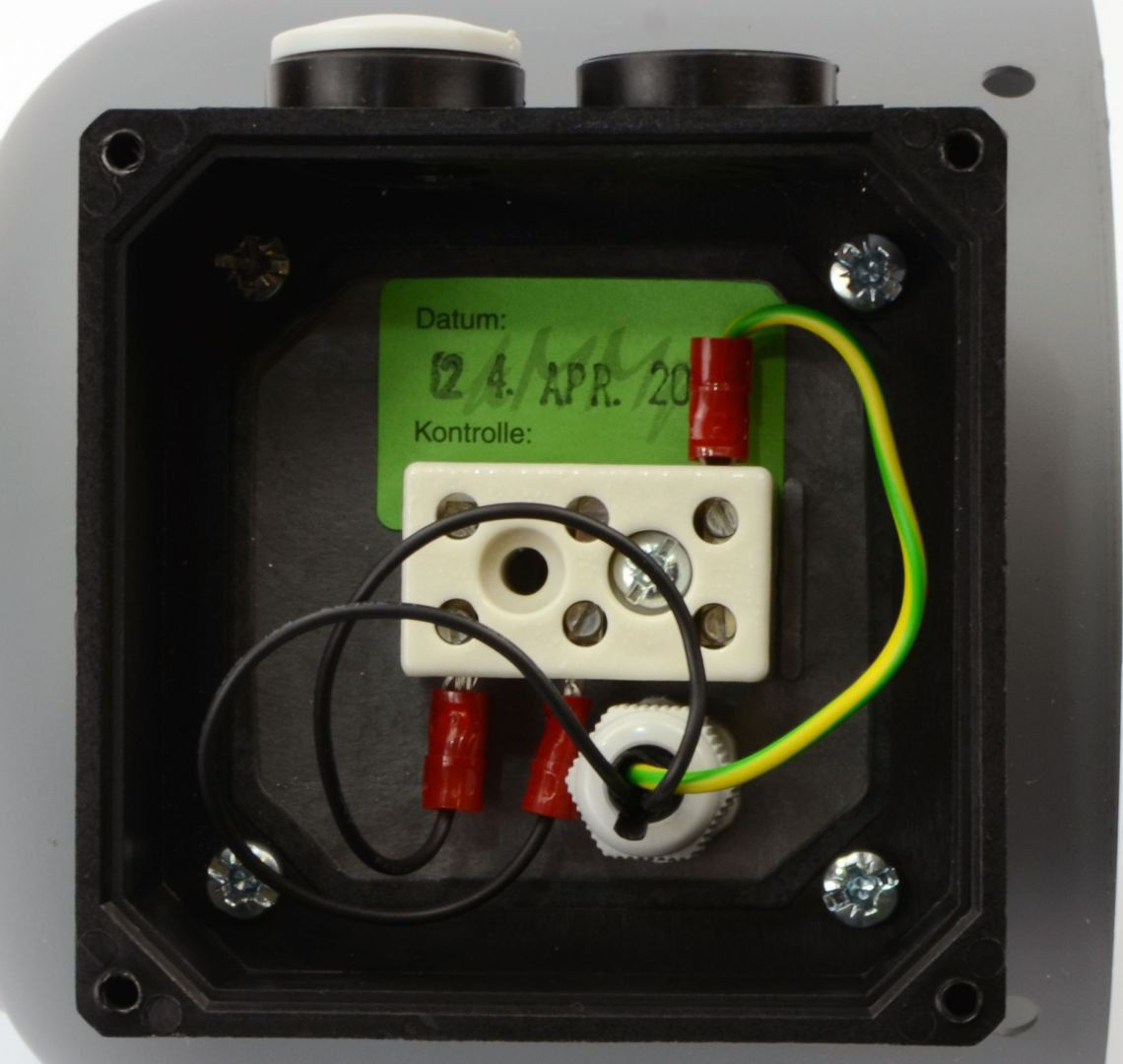

Economy Force Vent Fan FBI 112/2 S Economy Force Vent Fan FBI 112/2 S Single Phase Terminal Connections

Economy Force Vent Fan FBI 112/2 S

Economy Forced Ventilation Fan FBI 112/2 S to fit electric motors with an internal diameter of 216mm.
Manufacturer: Axis Controls
SKU: FFKMM 112 0S 216 170
£146.46 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

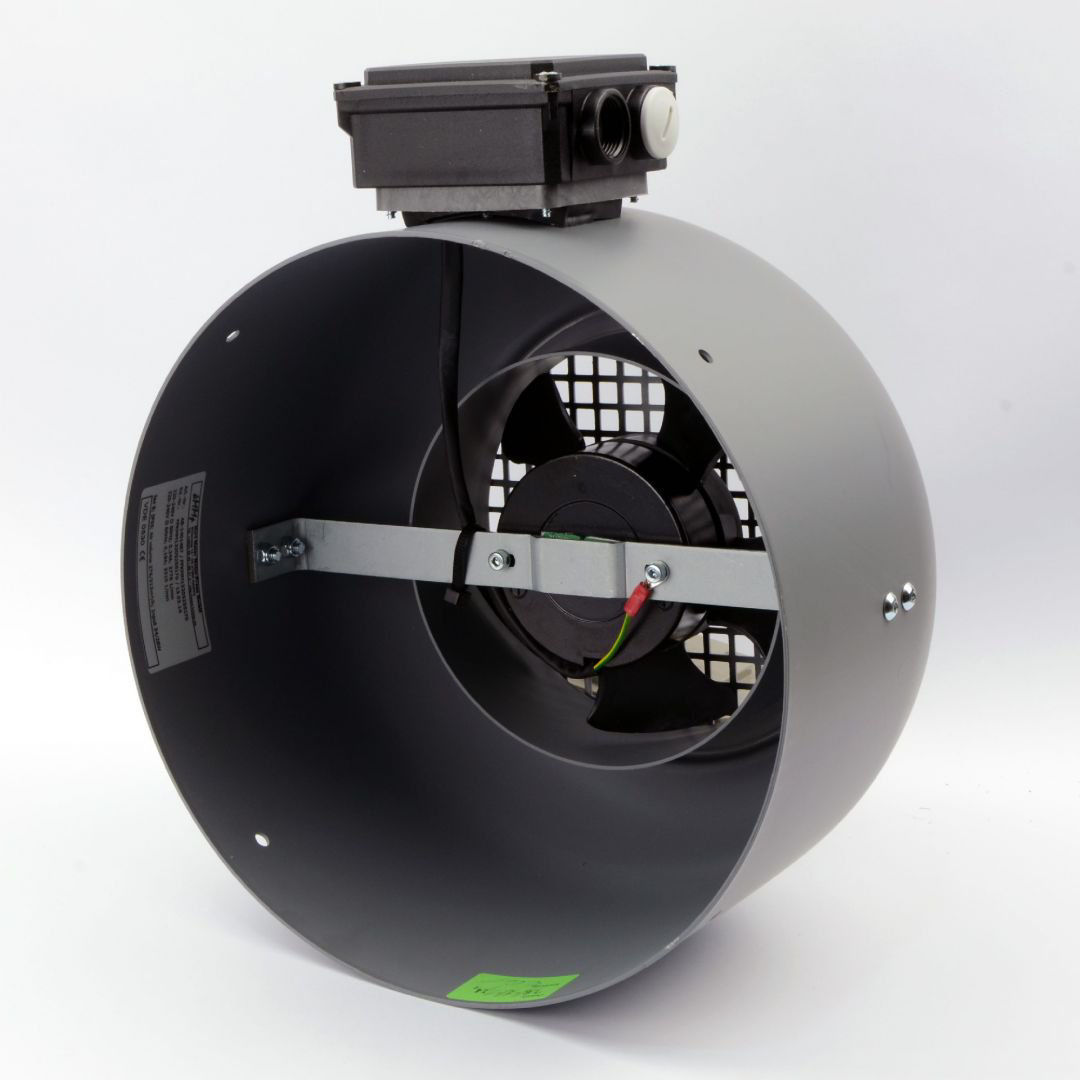

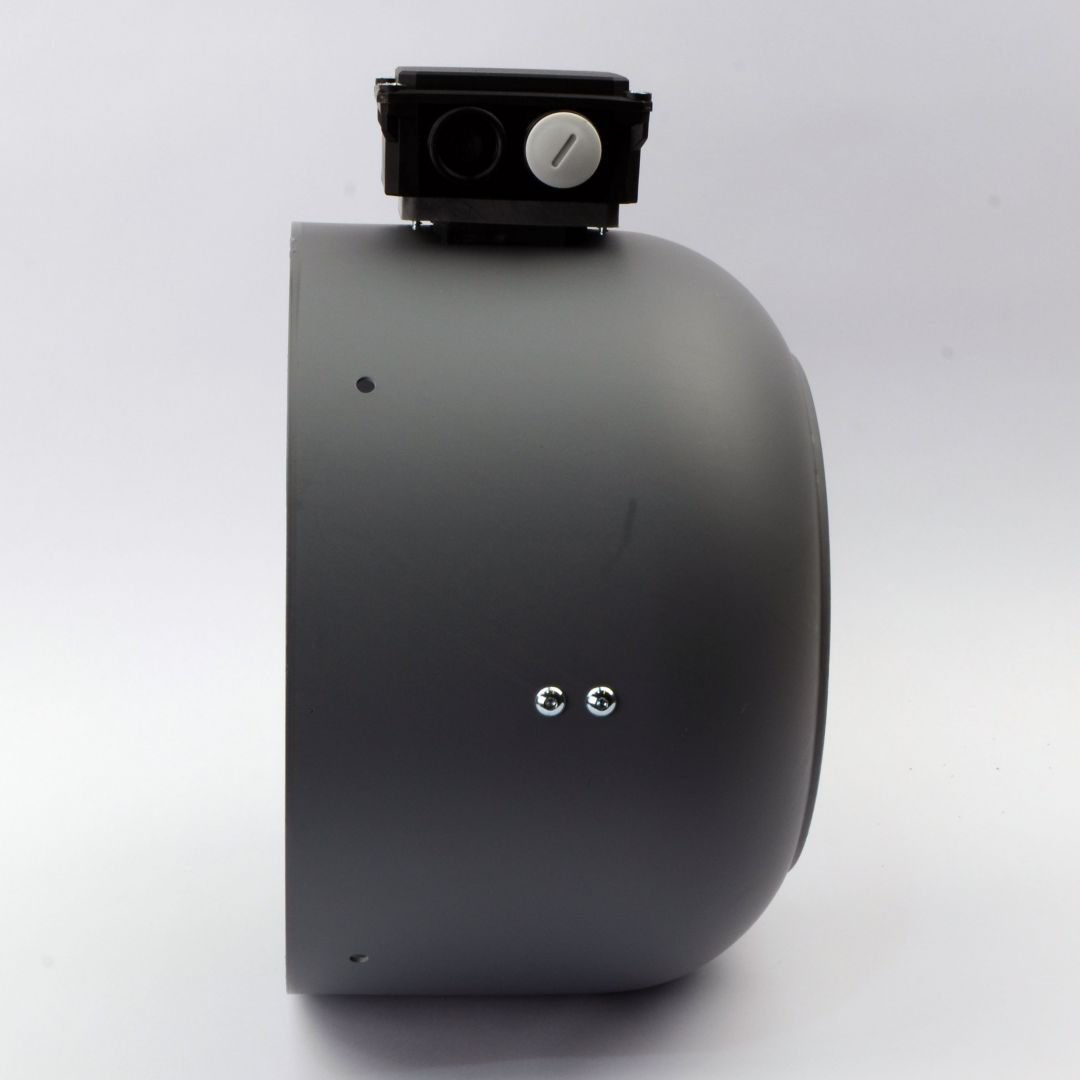

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP55 protection.

Item NumberFFKMM 112 0S 216 170
IP RatingIP55
Airflow @ 50 Hz221 m3/hour
Fan Speed2744 rpm
Noise Level64 dB
Single Phase ConnectionYes
Three Phase ConnectionNo
Fan Power @ 50 Hz32 watts
Amps @ 230V Single Phase 50 Hz0.24
Frame Size112

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size112
Voltage230V AC
Phases1
IP RatingIP55
Internal Ø (mm)216
Length (mm)170
