Economy Force Vent Fan FBI 071/2 S

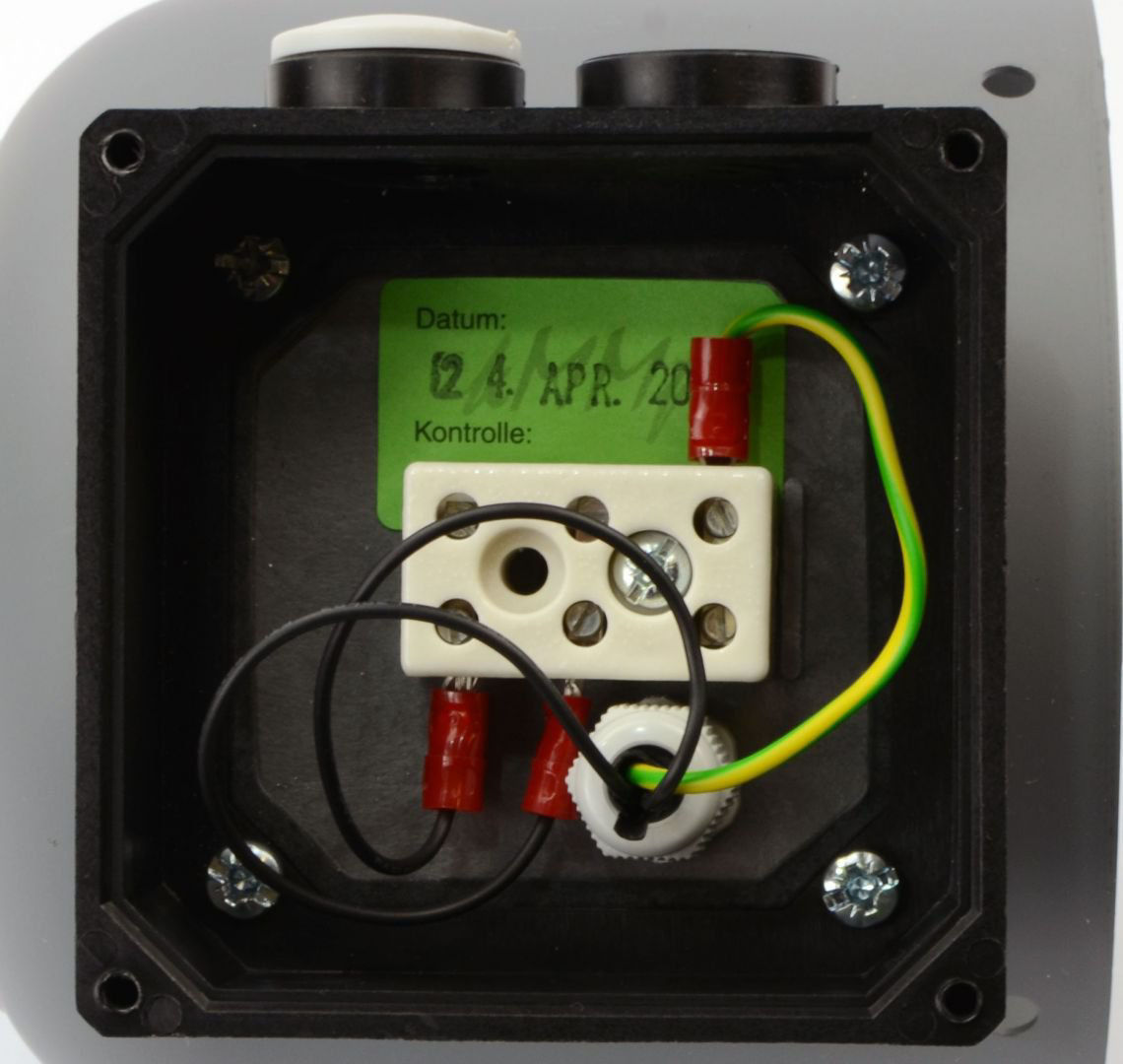

Economy Force Vent Fan FBI 071/2 S Economy Force Vent Fan FBI 071/2 S Single Phase Terminal Connections

Economy Force Vent Fan FBI 071/2 S

Economy Forced Ventilation Fan FBI 071/2 S to fit electric motors with an internal diameter of 136mm.
Manufacturer: Axis Controls
SKU: FFKMM 071 0S 136 126
£91.74 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

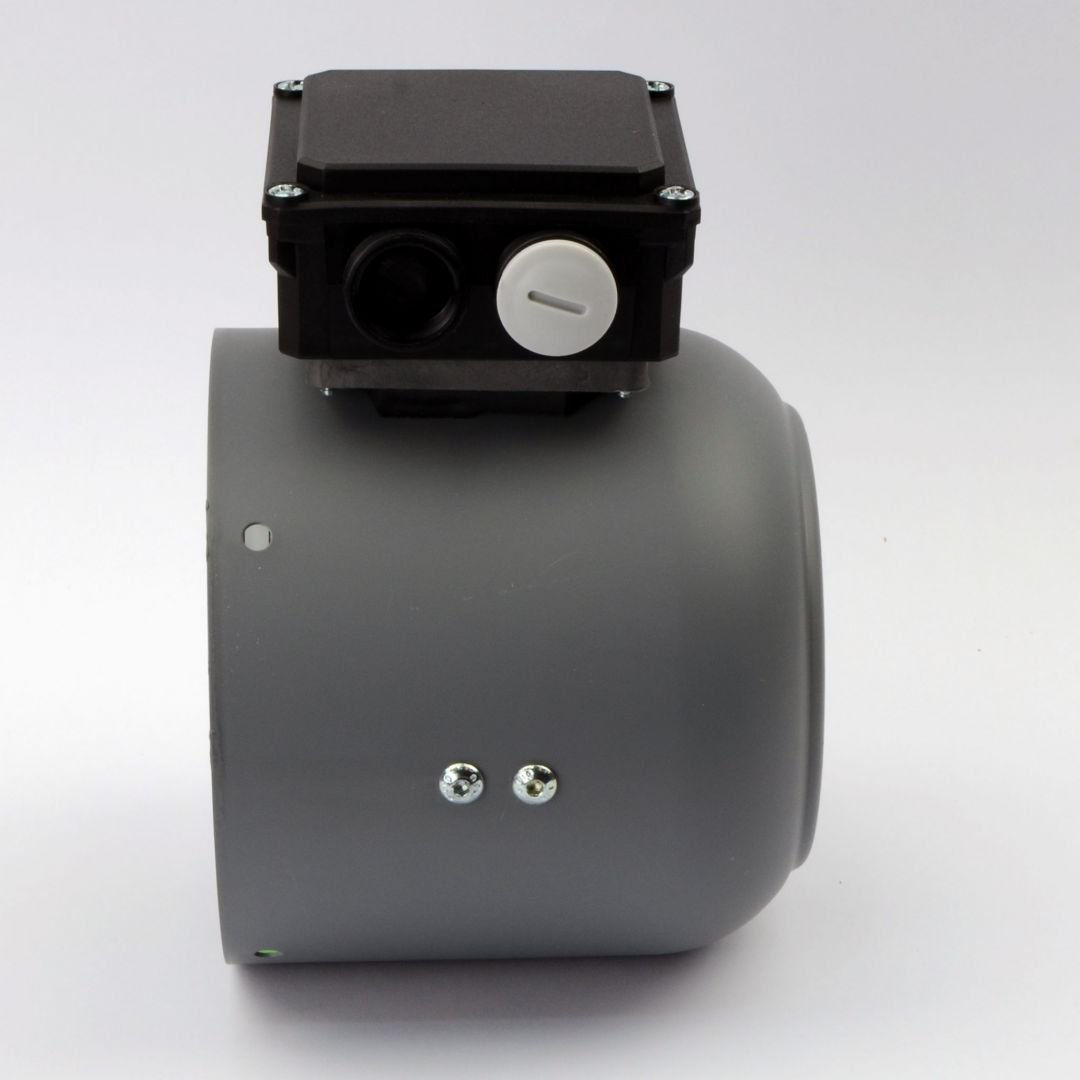

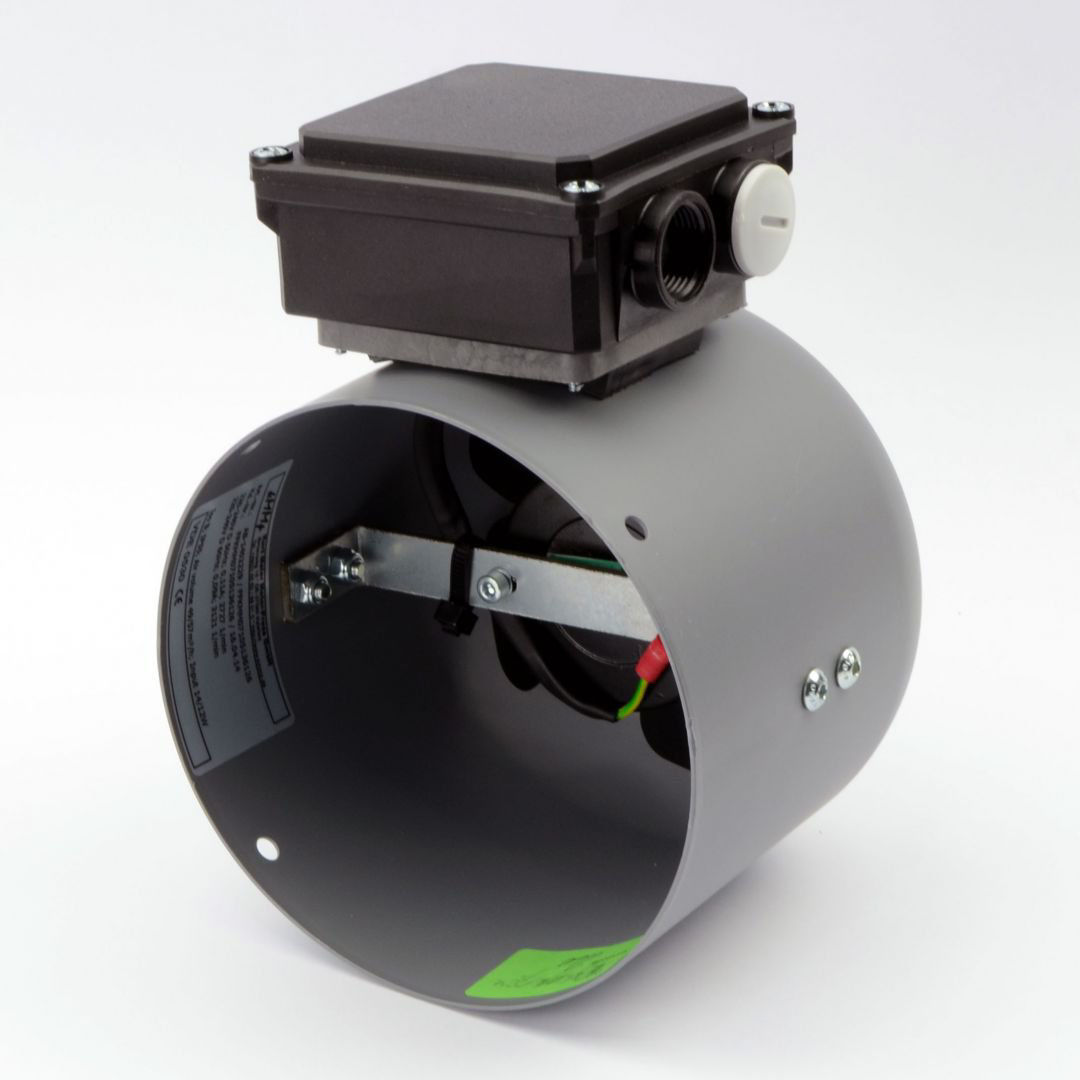

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP55 protection.

Item NumberFFKMM 071 0S 136 126
IP RatingIP55
Airflow @ 50 Hz49 m3/hour
Fan Speed2727 rpm
Noise Level56 dB
Single Phase ConnectionYes
Three Phase ConnectionNo
Fan Power @ 50 Hz14 watts
Amps @ 230V Single Phase 50 Hz0.11
Frame Size71


DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size071
Voltage230V AC
Phases1
IP RatingIP55
Internal Ø (mm)136
Length (mm)126
