Economy Force Vent Fan FBI 063/2 S Extended

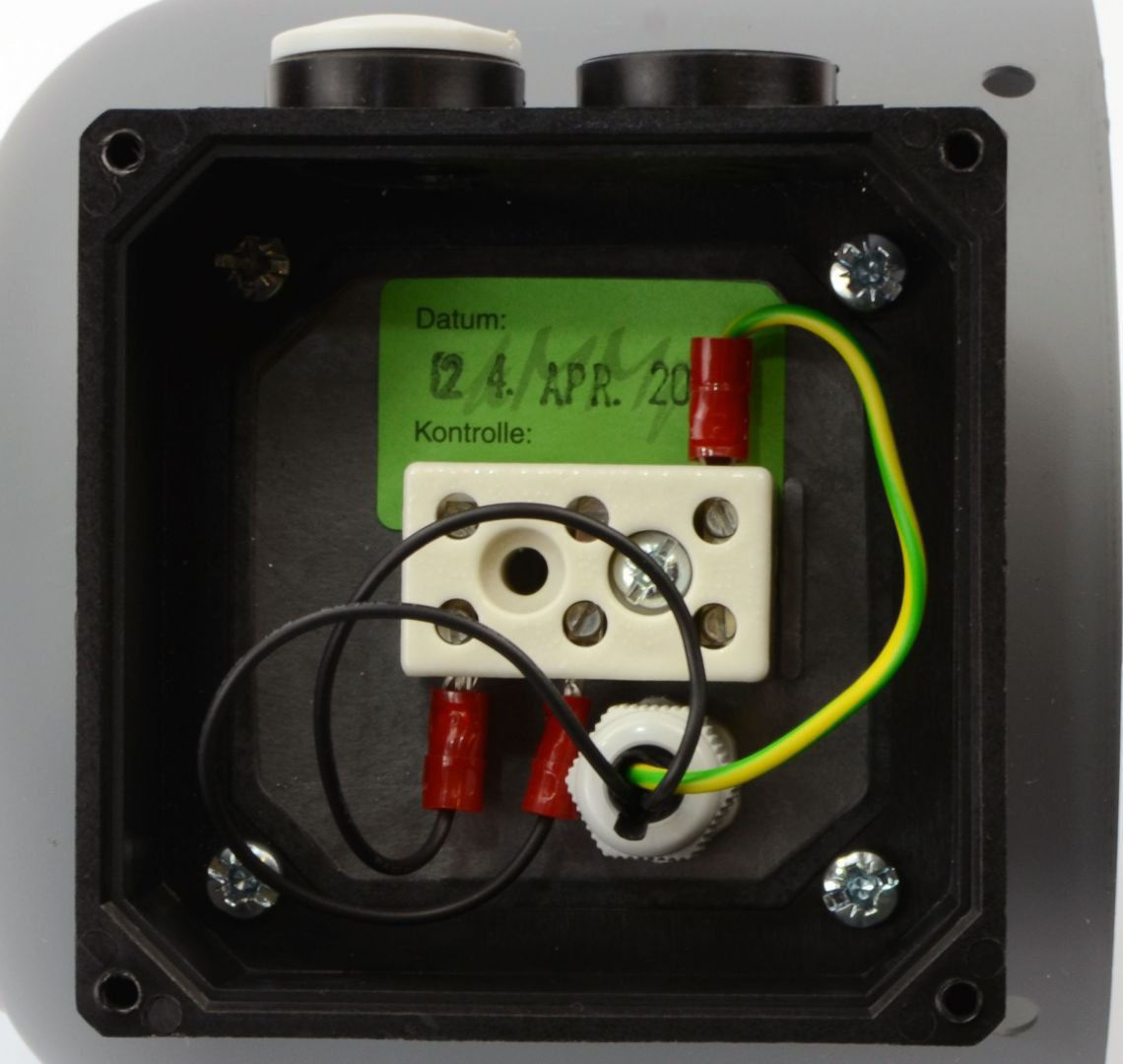

Economy Force Vent Fan FBI 063/2 S Extended Economy Force Vent Fan FBI 063/2 S Extended Single Phase Terminal Connections

Economy Force Vent Fan FBI 063/2 S Extended

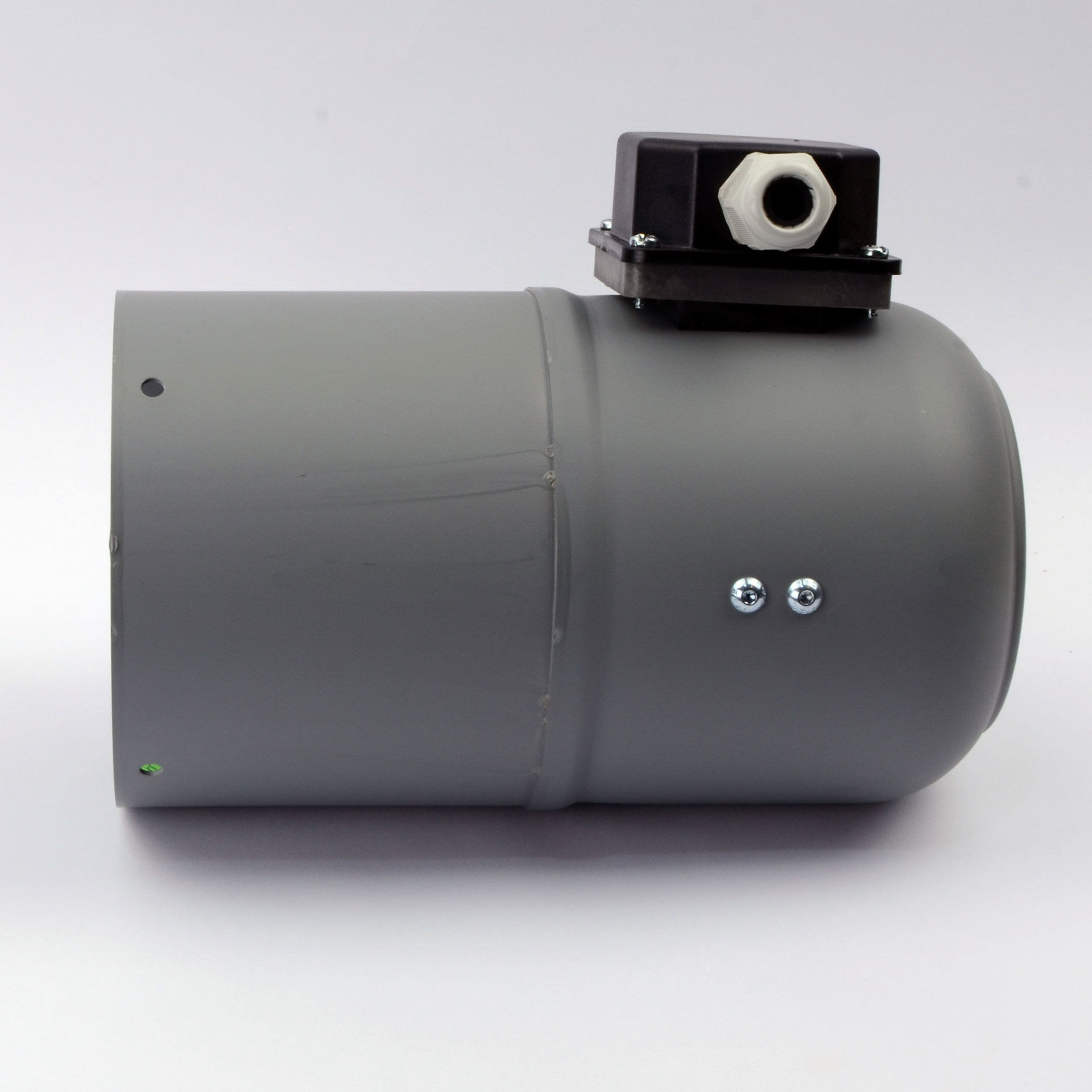

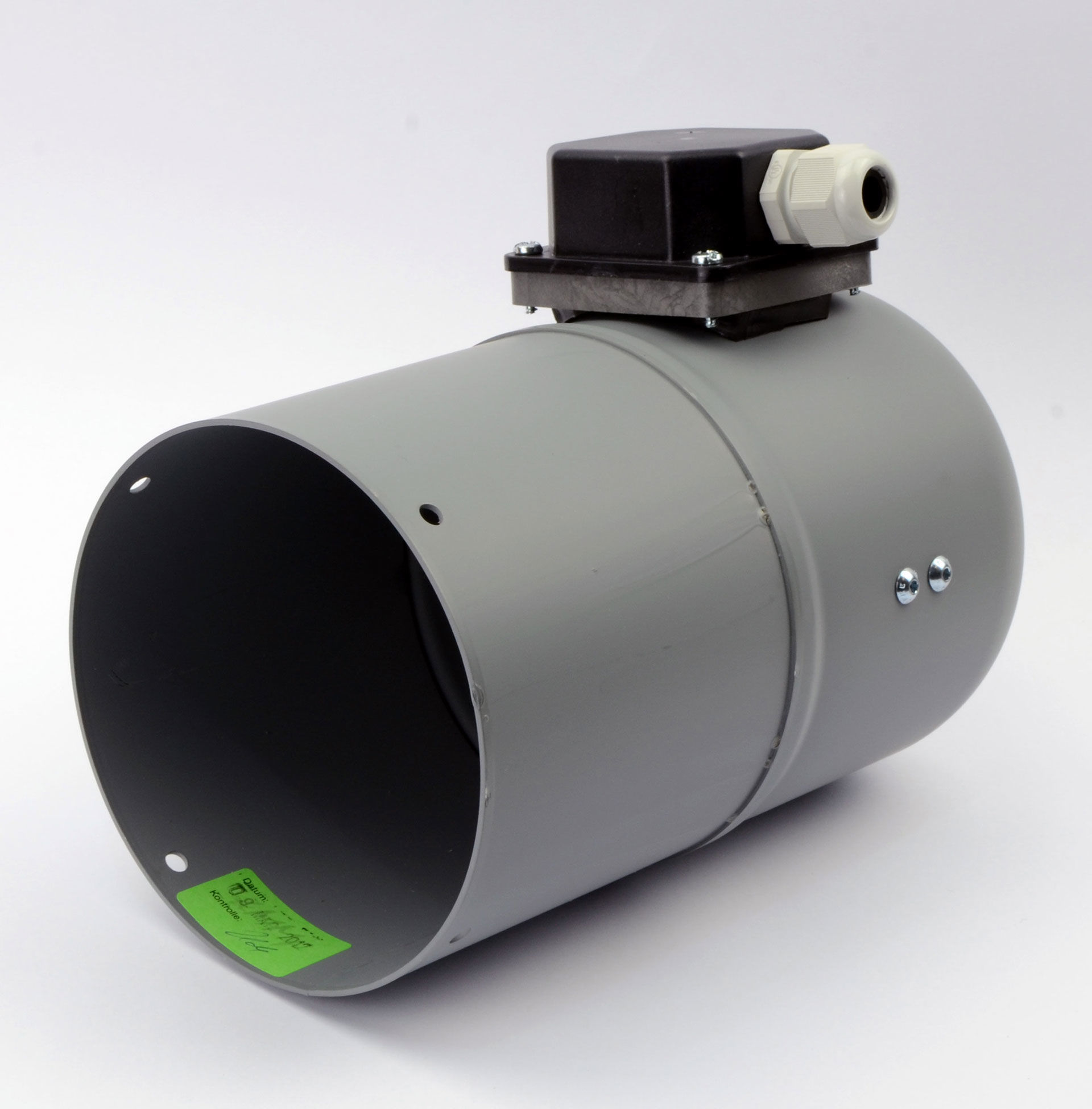

Economy Forced Ventilation Fan with extended cowl FBI 063/2 S to fit electric motors with an internal diameter of 121mm.
Manufacturer: Axis Controls
SKU: FFKMM 063 0S 121 210
£103.44 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP55 protection.

Item NumberFFKMM 063 0S 121 210
IP RatingIP55
Airflow @ 50 Hz51 m3/hour
Fan Speed2715 rpm
Noise Level56 dB
Single Phase ConnectionYes
Three Phase ConnectionNo
Fan Power @ 50 Hz14 watts
Amps @ 230V Single Phase 50 Hz0.12
Frame Size63

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size063
Voltage230V AC
Phases1
IP RatingIP55
Internal Ø (mm)121
Length (mm)210
