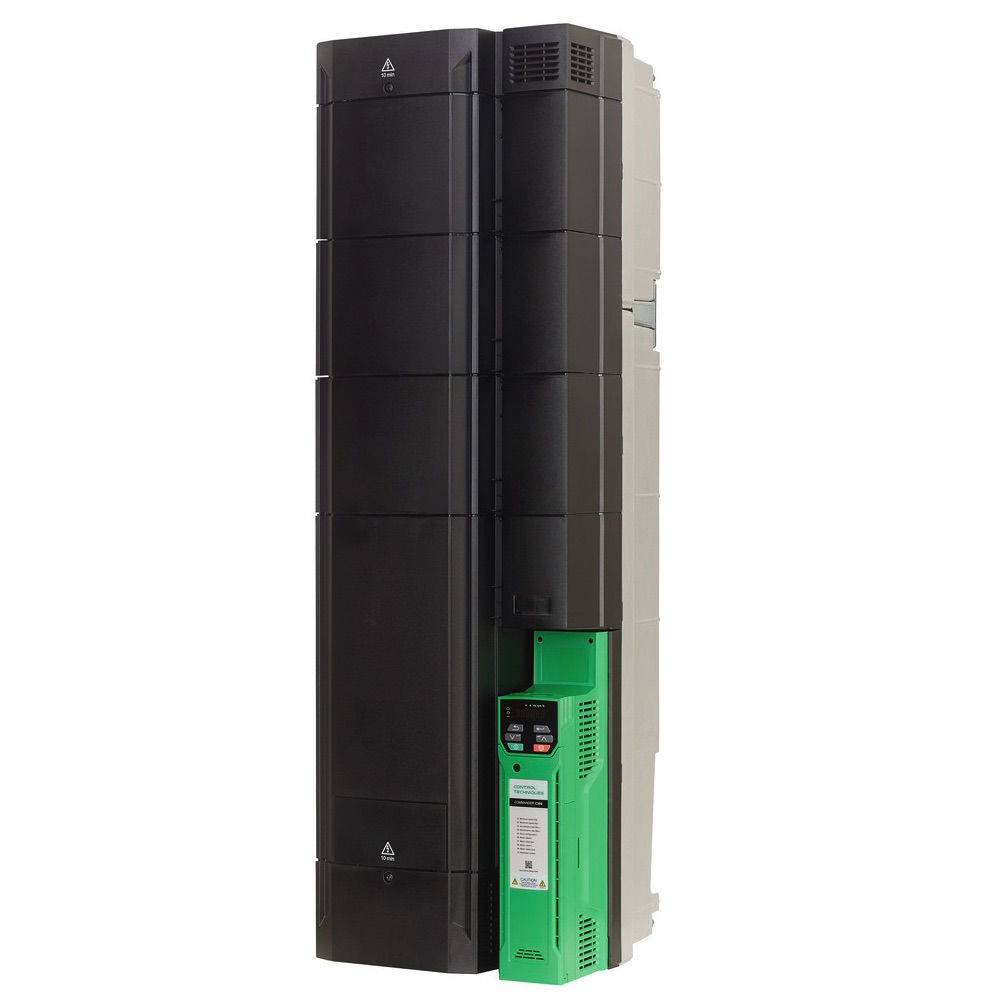

Control Techniques Commander C300 90kW 380V / 480V - Frame 9E

Control Techniques Commander C300 is an AC induction variable speed drive, compatible with a vast range of software to deliver optimum service. Due to its durability and efficiency, you are provided with an effortless performance. The Commander C300 adds a dual Safe-Torque Off (STO) input, certified to SIL3/PLe safety rating and compliant with EN/ IEC 61800-5-2.

• Model Number : C300-09402000E
• Power Rating : 90kW, 150HP
• Output Current : 200 Amps
• Supply Voltage : 380/480 VAC, three phase, +/- 10%
• Frame Size : 9E
• Frame Dimensions : h.1069mm x w.310mm x d.290mm
• Manufacturer : Control Techniques
• Ambient : -20-40 C
• Overload : 150% for 60 seconds
• IP Class : IP20
• Analogue Inputs : 3
• Digital Inputs : 5
• Relay Outputs : 1
• Remote Keypad Available : Yes

DOCUMENT DOWNLOADS

• Commander C Brochure/Datasheet (4.8 MB)
• Commander C (Frame 7 to 10) Power Installation Guide (11.1 MB)
• Commander C (Frame 5 to 9) Step By Step Guide (21.1 MB)
• Commander C Control User (9.3 MB)
