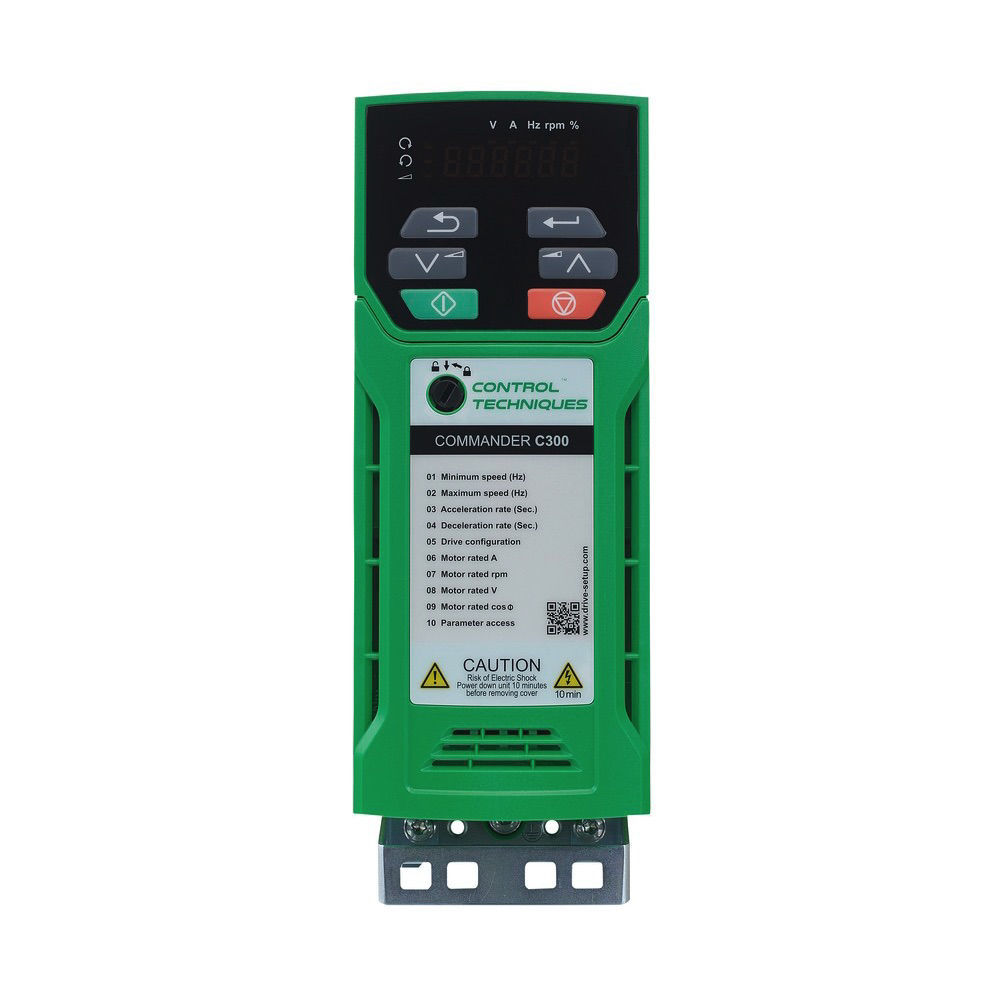

Control Techniques Commander C300 1.1kW 100V / 120V

Control Techniques Commander C300 is an AC induction variable speed drive, compatible with a vast range of software to deliver optimum service. Due to its durability and efficiency, you are provided with an effortless performance. The Commander C300 adds a dual Safe-Torque Off (STO) input, certified to SIL3/PLe safety rating and compliant with EN/ IEC 61800-5-2.

• Model Number : C300-02100056
• Power Rating : 1.1kW, 1.5HP
• Output Current : 5.6 Amps
• Supply Voltage : 100/120 VAC, single phase, +/- 10%
• Frame Size : 2
• Frame Dimensions : h.205mm x w.75mm x d.150mm
• Manufacturer : Control Techniques
• Ambient : -20-40 C
• Overload : 150% for 60 seconds
• IP Class : IP20
• Analogue Inputs : 3
• Digital Inputs : 5
• Relay Outputs : 1
• Remote Keypad Available : Yes

DOCUMENT DOWNLOADS

• Commander C Brochure/Datasheet (4.8 MB)
• Commander C (Frame 1 to 4) Power Installation Guide (6 MB)
• Commander C (Frame 1 to 4) Step By Step Guide (4.7 MB)
• Commander C Control User (9.3 MB)
