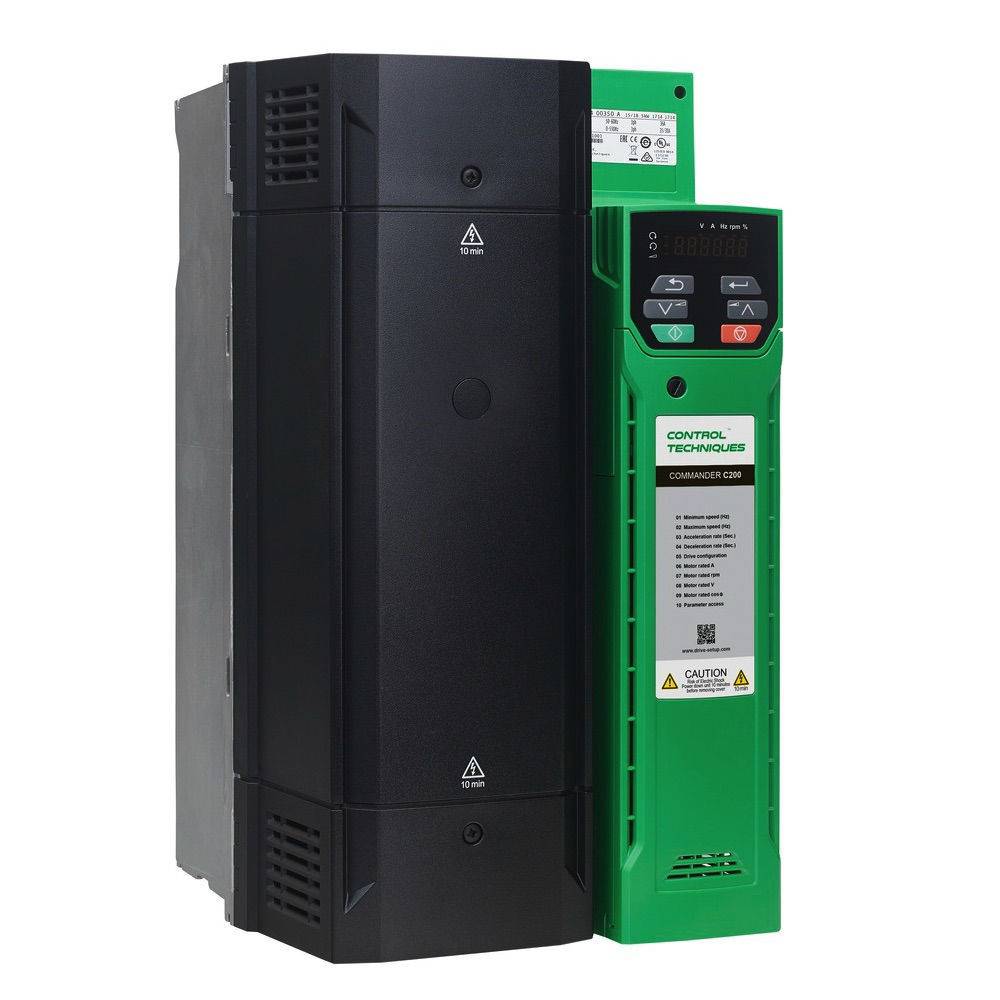

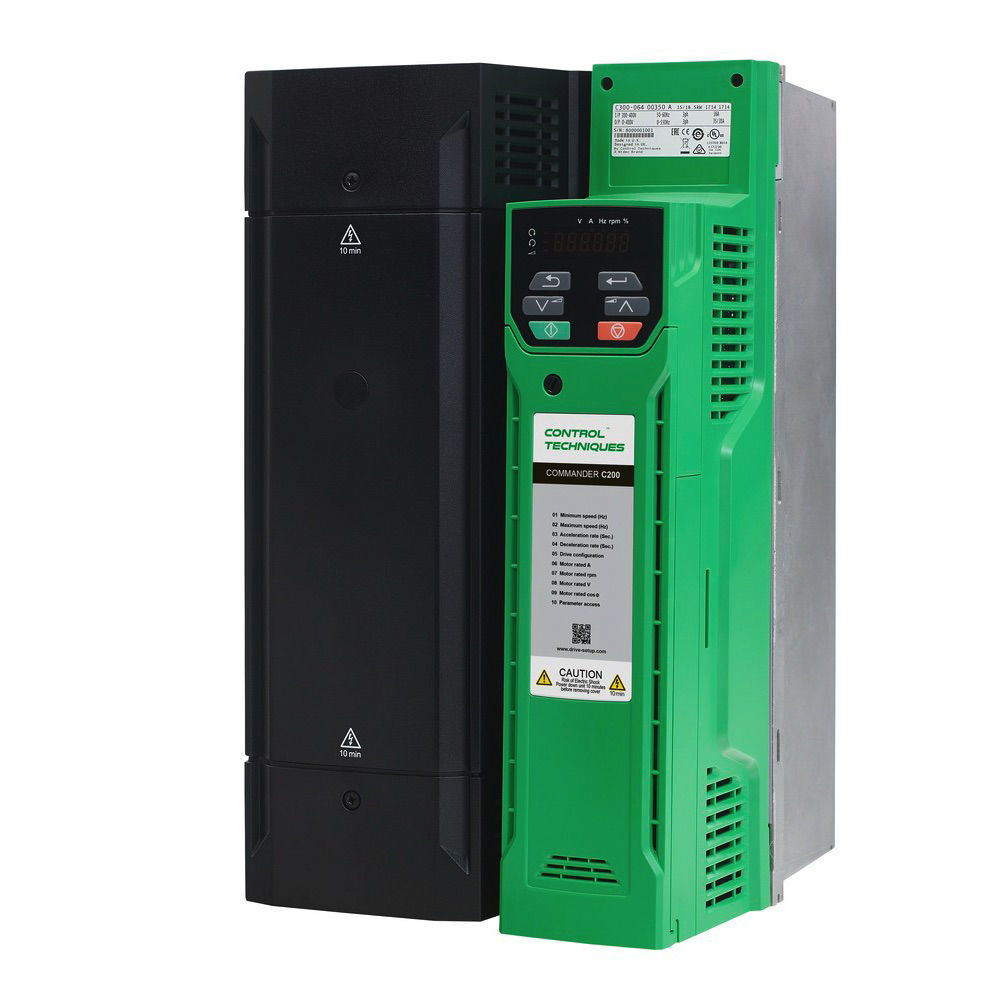

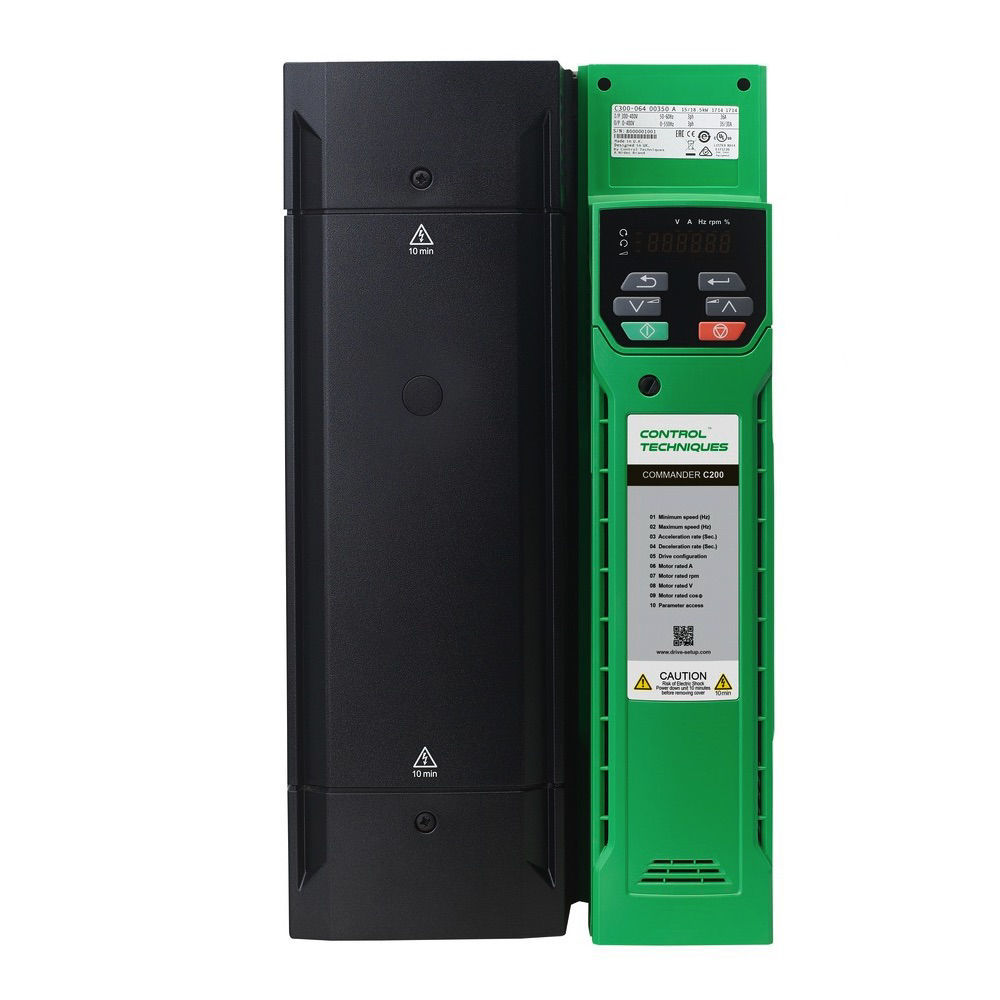

Control Techniques Commander C200 15kW 380V / 480V - 35 Amps

Control Techniques Commander C200 is an AC induction variable speed drive, compatible with a vast range of software to deliver optimum service. Due to its durability and efficiency, you are provided with an effortless performance. The Commander C200 is equipped with the latest energy-saving features as well as built-in PID and onboard PLC for increased control at a lower cost.

• Model Number : C200-06400350
• Power Rating : 15kW, 25HP
• Output Current : 35 Amps
• Supply Voltage : 380/480 VAC, three phase, +/- 10%
• Frame Size : 6
• Frame Dimensions : h.391mm x w. 210mm x d.227mm
• Manufacturer : Control Techniques
• Ambient : -20-40 C
• Overload : 150% for 60 seconds
• IP Class : IP20
• Analogue Inputs : 3
• Digital Inputs : 5
• Relay Outputs : 1
• Remote Keypad Available : Yes

DOCUMENT DOWNLOADS

• Commander C Brochure/Datasheet (4.8 MB)
• Commander C (Frame 5 and 6) Power Installation Guide (8.8 MB)
• Commander C (Frame 5 to 9) Step By Step Guide (21.1 MB)
• Commander C Control User (9.3 MB)
