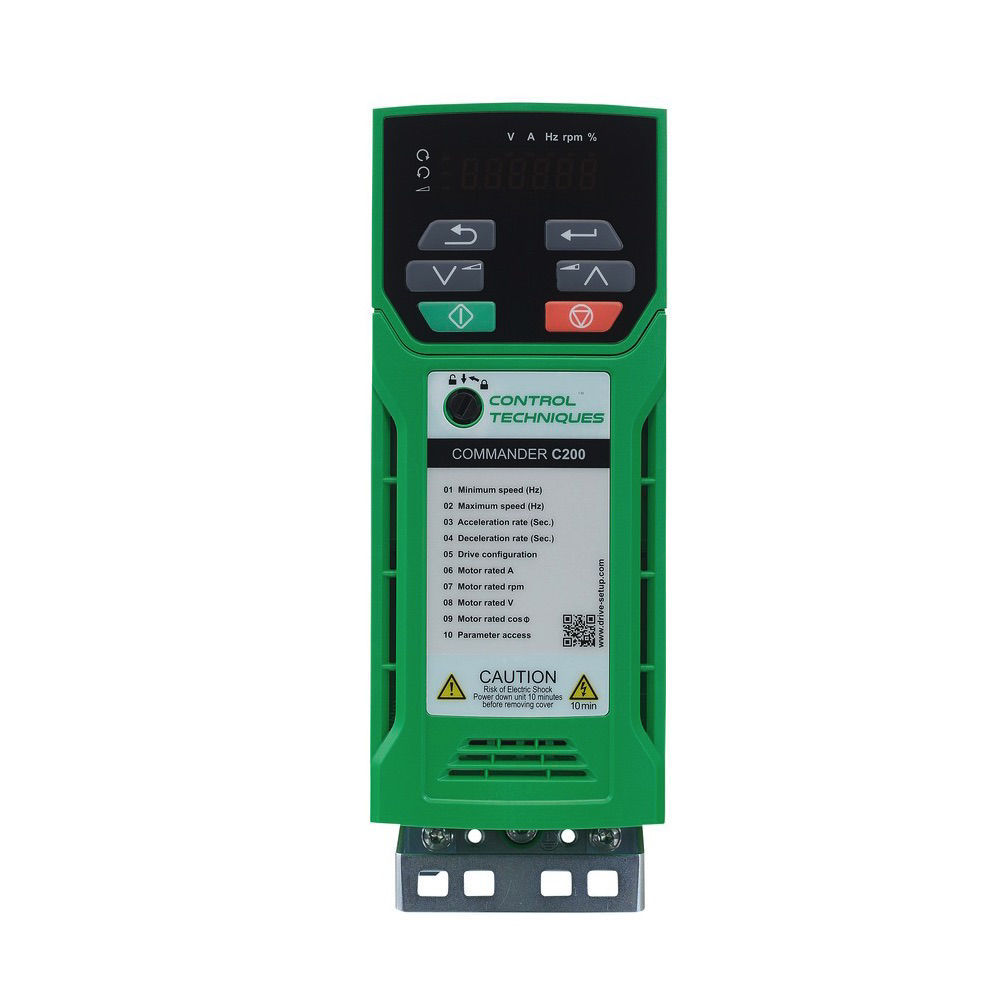

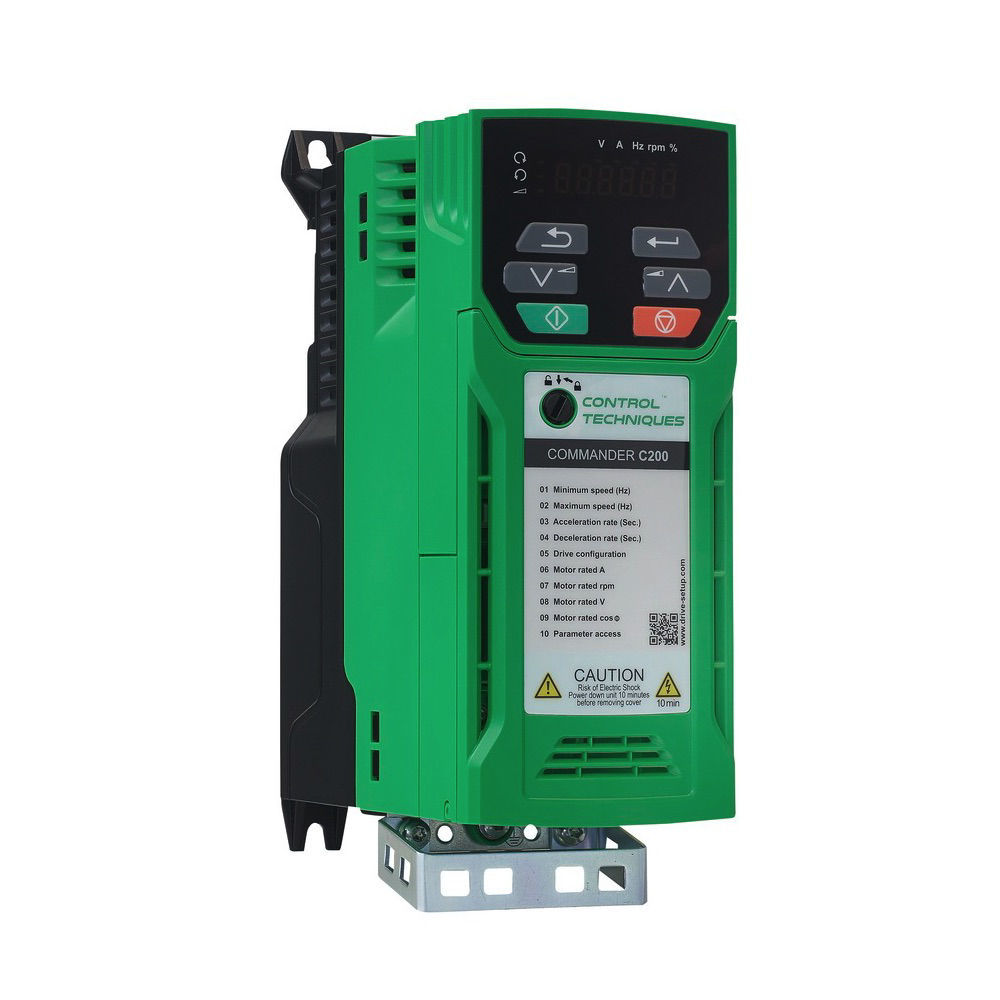

Control Techniques Commander C200 0.75kW 200V / 240V - 1/3 Phase

Control Techniques Commander C200 is an AC induction variable speed drive, compatible with a vast range of software to deliver optimum service. Due to its durability and efficiency, you are provided with an effortless performance. The Commander C200 is equipped with the latest energy-saving features as well as built-in PID and onboard PLC for increased control at a lower cost.

• Model Number : C200-02200042
• Power Rating : 0.75kW, 1HP
• Output Current : 4.2Amps
• Supply Voltage : 200/240 VAC, single/three phase, +/- 10%
• Frame Size : 2
• Frame Dimensions : h.205mm x w.75mm x d.150mm
• Manufacturer : Control Techniques
• Ambient : -20-40 C
• Overload : 150% for 60 seconds
• IP Class : IP20
• Analogue Inputs : 3
• Digital Inputs : 5
• Relay Outputs : 1
• Remote Keypad Available : Yes

DOCUMENT DOWNLOADS

• Commander C Brochure/Datasheet (4.8 MB)
• Commander C (Frame 1 to 4) Power Installation Guide (6 MB)
• Commander C (Frame 1 to 4) Step By Step Guide (4.7 MB)
• Commander C Control User (9.3 MB)
