Brook Crompton Force Vent Fan WD 090 RBK Enc
Brook Crompton Force Vent Fan WD 090 RBK Enc Brook Crompton Force Vent Fan WD 090 RBK Enc RBK Terminal Connections

Brook Crompton Force Vent Fan WD 090 RBK Enc

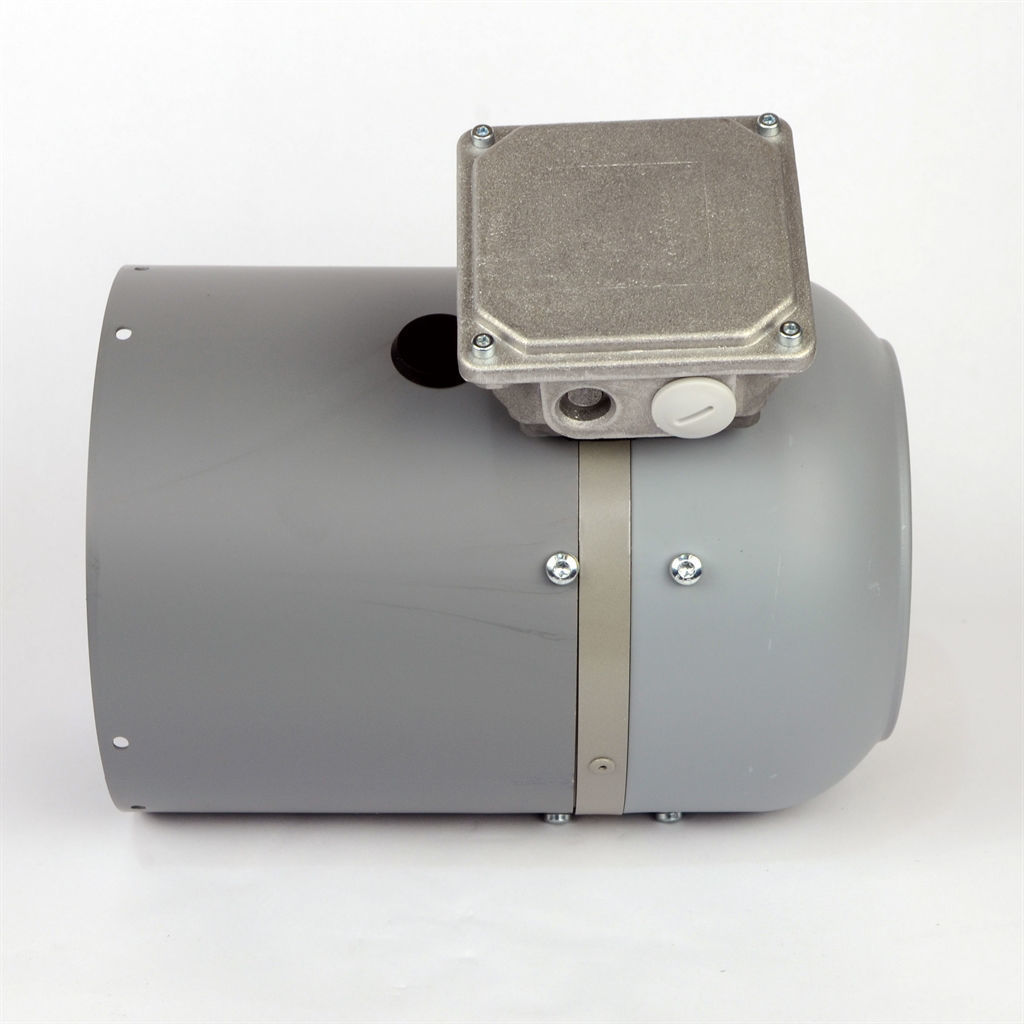

Forced Ventilation Fan 090 RBK with encoder to fit Brook Crompton WD electric motors with an internal diameter of 174mm.
Manufacturer: Axis Controls
SKU: FV INV 090 0K 174 240
£202.63 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

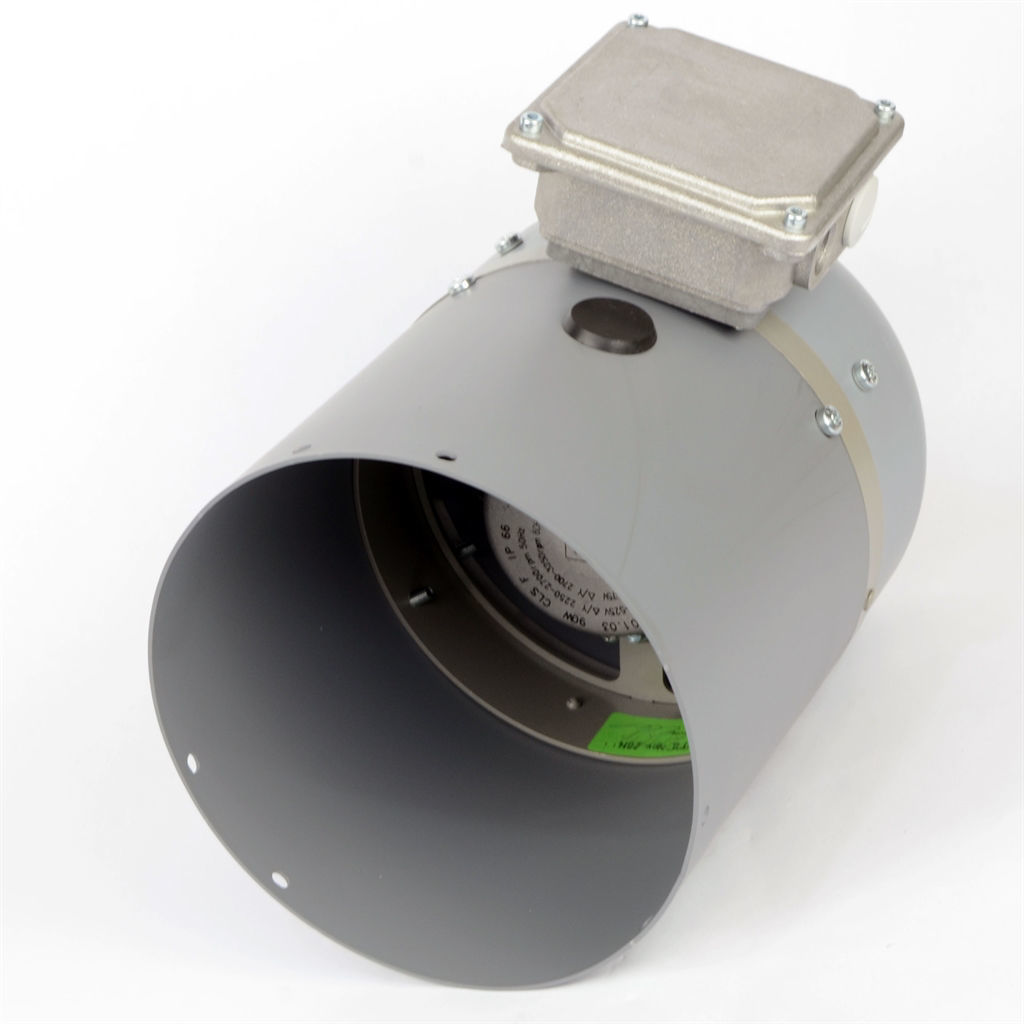

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV INV 090 0K 174 240
IP RatingIP66
Airflow @ 50 Hz207 m3/hour
Fan Speed2895 rpm
Noise Level68 dB

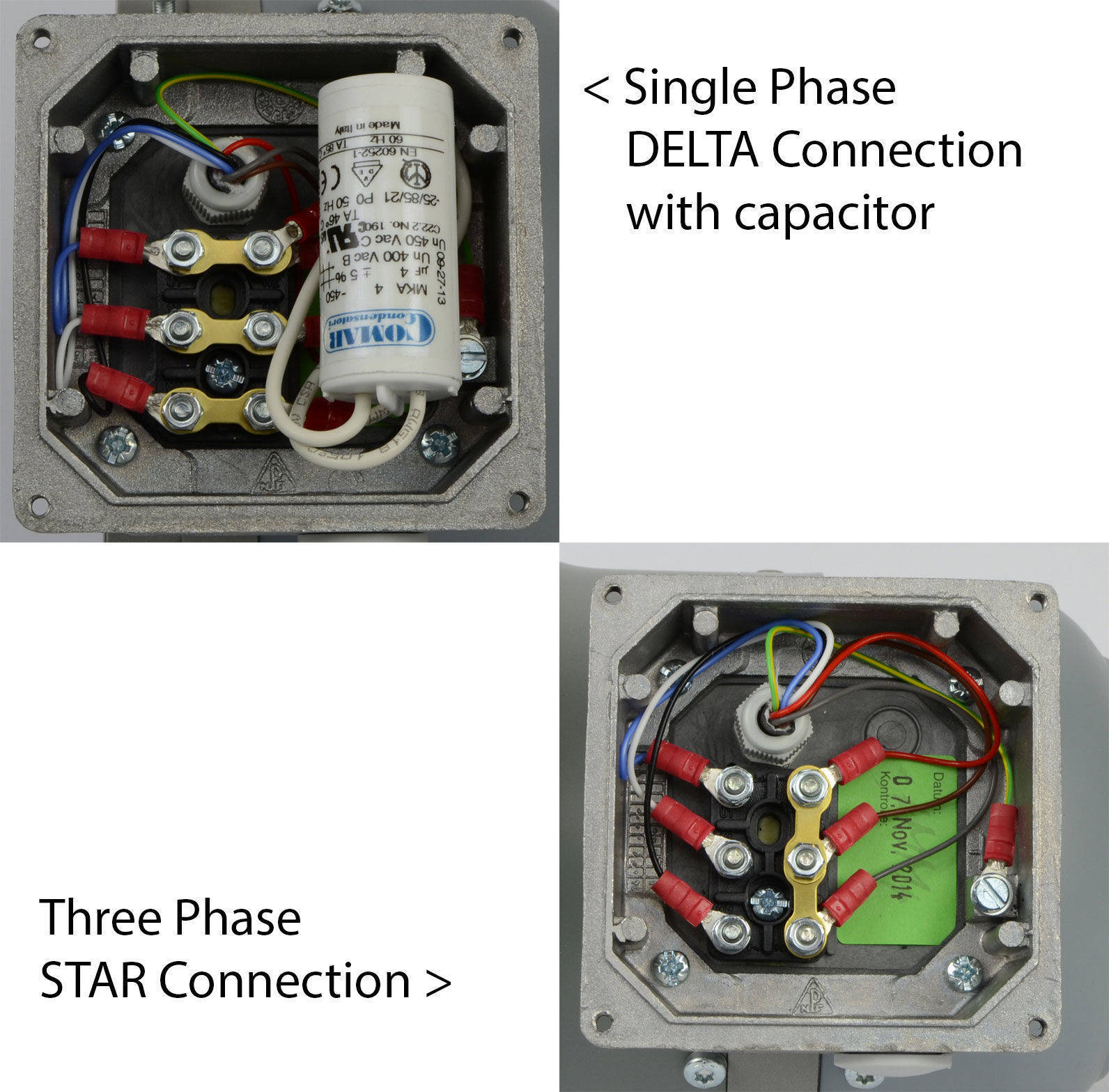

Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
Fan Power @ 50 Hz138 watts
Amps @ 230V Single Phase 50 Hz0.65
Amps @ 230V Three Phase 50 Hz0.67
Amps @ 400V Three Phase 50 Hz0.39
To Fit MotorBrook Crompton
SeriesWD
Frame Size90

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size090
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)174
Length (mm)240
