Brook Crompton Force Vent Fan WD 071 RBK Enc
Brook Crompton Force Vent Fan WD 071 RBK Enc Brook Crompton Force Vent Fan WD 071 RBK Enc RBK Terminal Connections

Brook Crompton Force Vent Fan WD 071 RBK Enc

Forced Ventilation Fan 071 RBK with encoder to fit Brook Crompton WD electric motors with an internal diameter of 133mm.
Manufacturer: Axis Controls
SKU: FV INV 071 0K 133 239
£182.52 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV INV 071 0K 133 239
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorBrook Crompton
SeriesWD
Frame Size71

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

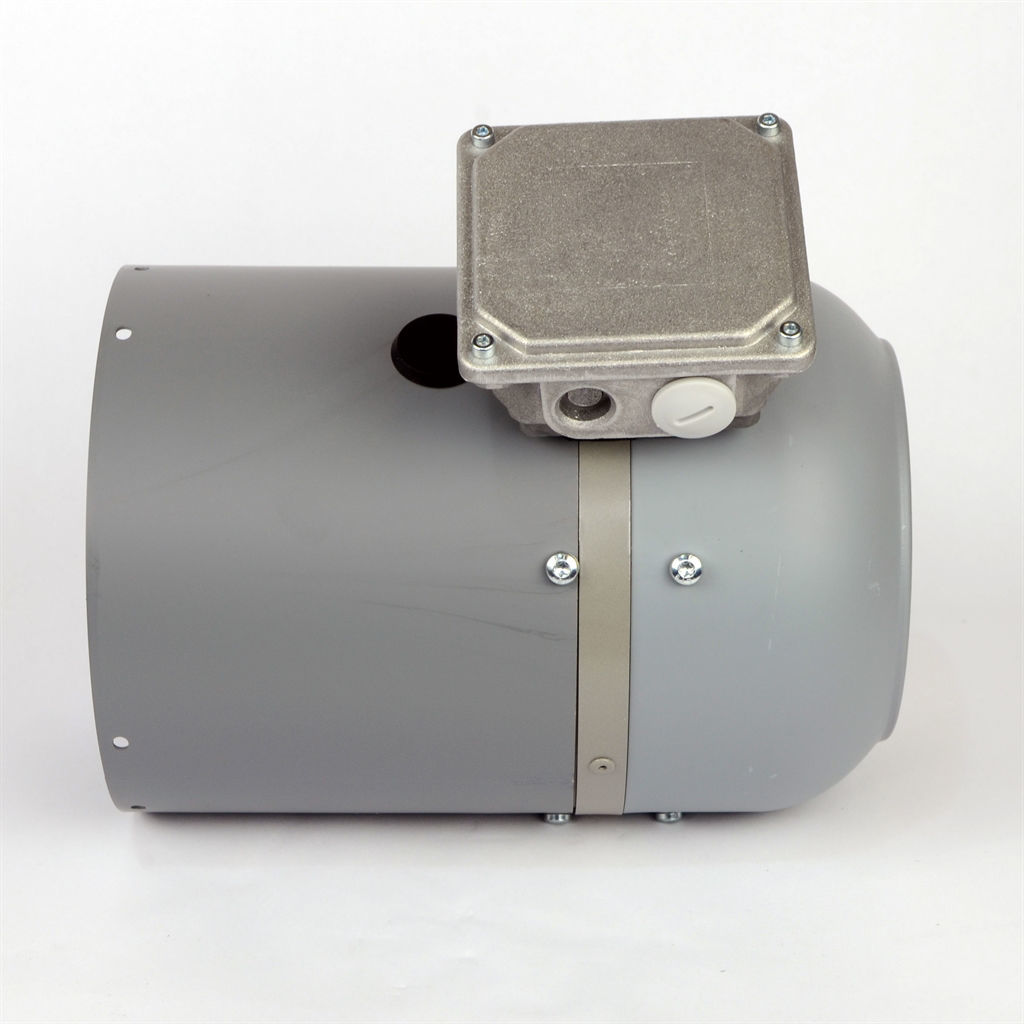

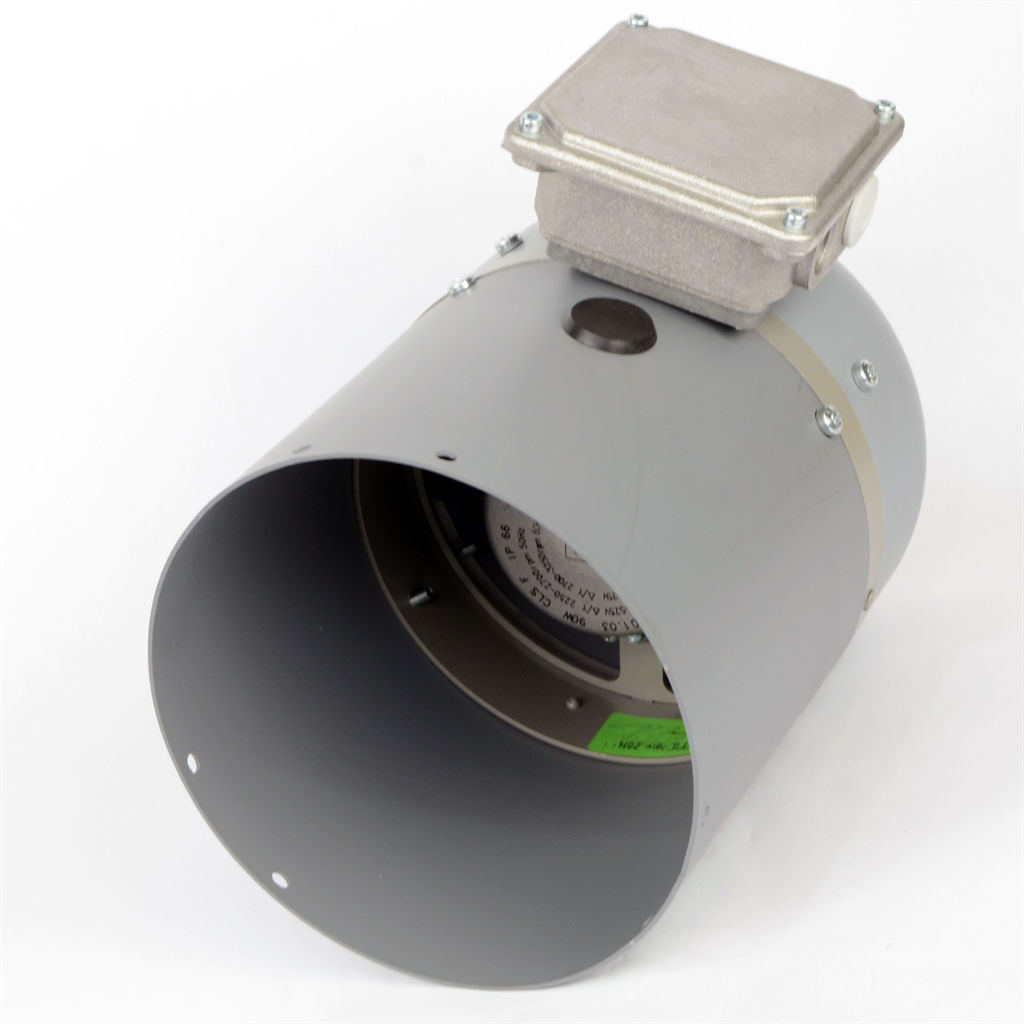

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size071
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)133
Length (mm)239
