Axis-Z-RBK-1F-250
Axis-Z-RBK-1F-250 Axis-Z-RBK-1F-250 RBK Terminal Connections

ABB Force Vent Fan M3BP 280 Z-RBK

Forced Ventilation Fan 280 Z-RBK with encoder to fit ABB M3BP electric motors with an outside case diameter of up to 545mm.
Manufacturer: Axis Controls
SKU: FV ABB 280 1F 545 600
Call for pricing

Recommended for applications where the motor is used with a frequency inverter.

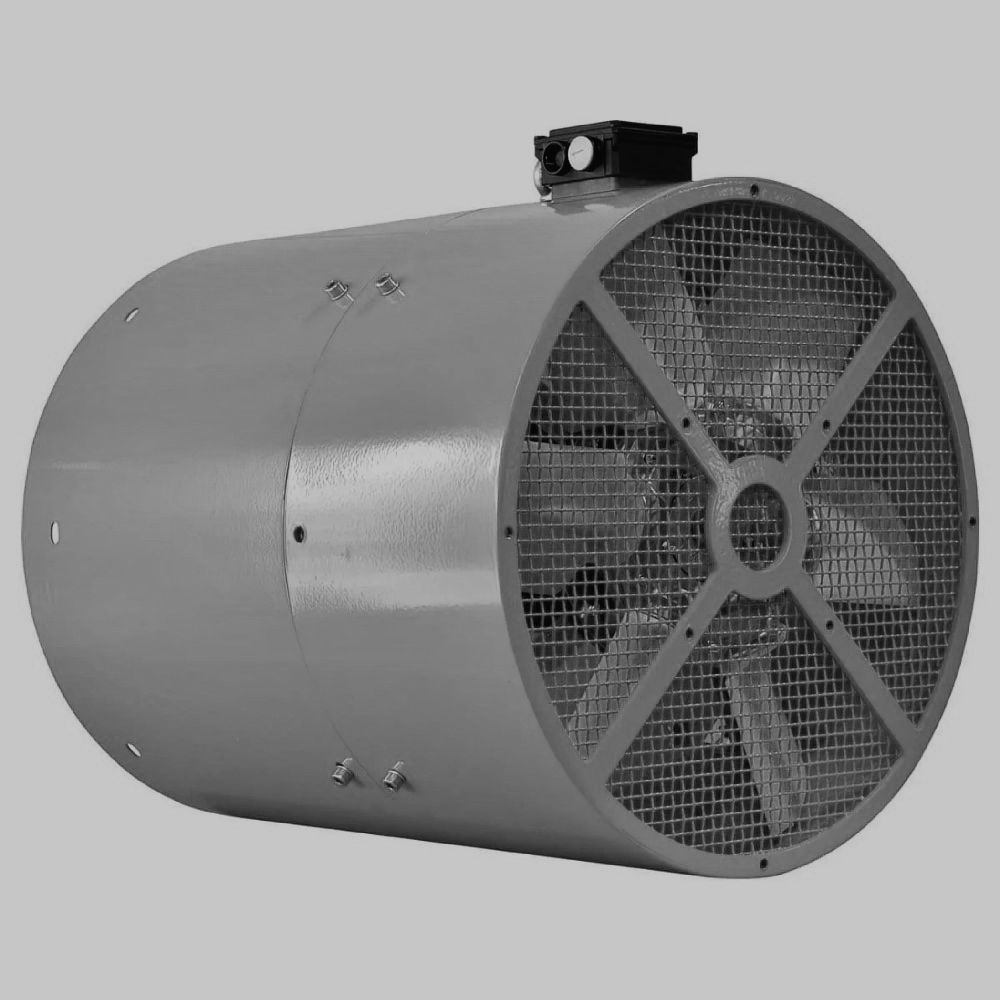

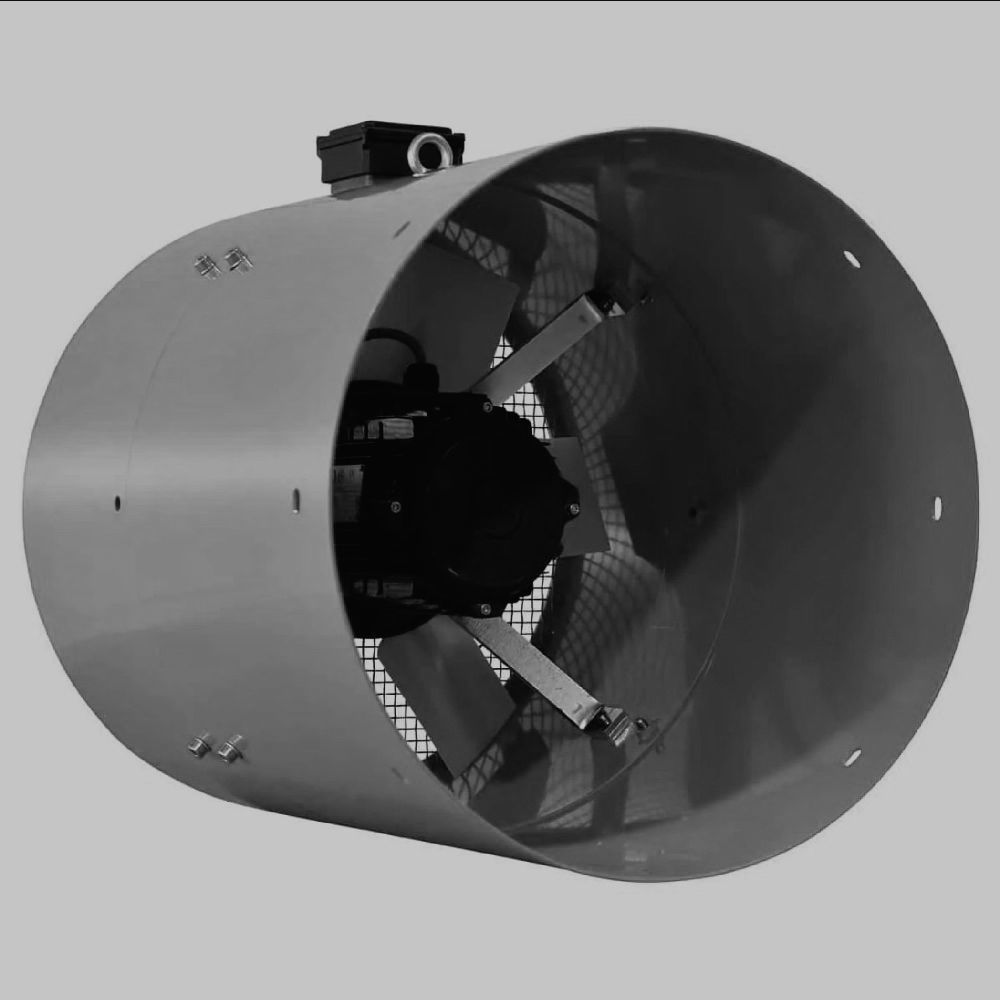

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV ABB 280 1F 545 600
IP RatingIP66

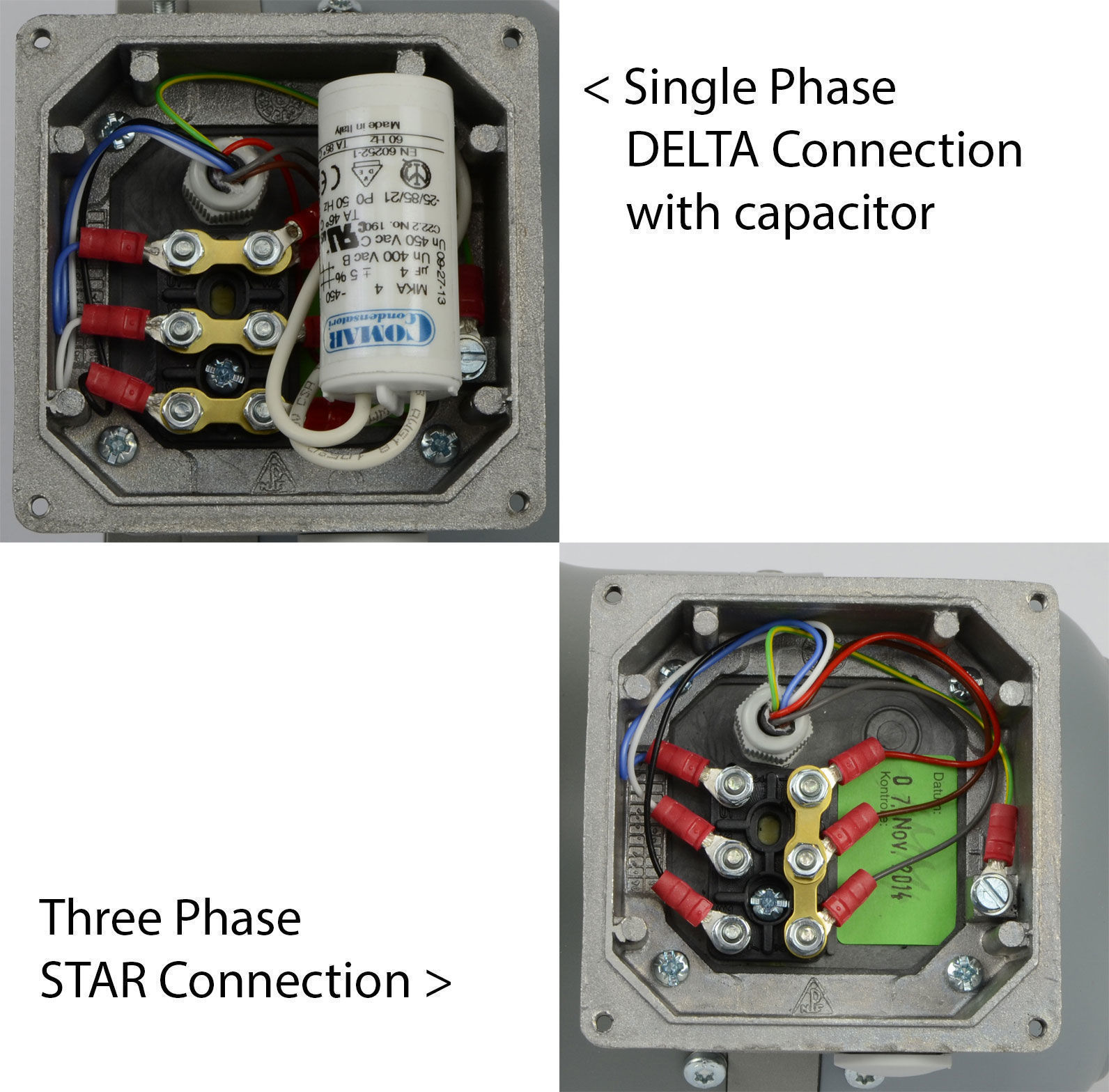

Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorABB
SeriesM3BP
Frame Size280

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size280
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)545
Length (mm)600
