ABB Force Vent Fan M2AA/M3AA/M3BP 250 S-RBK

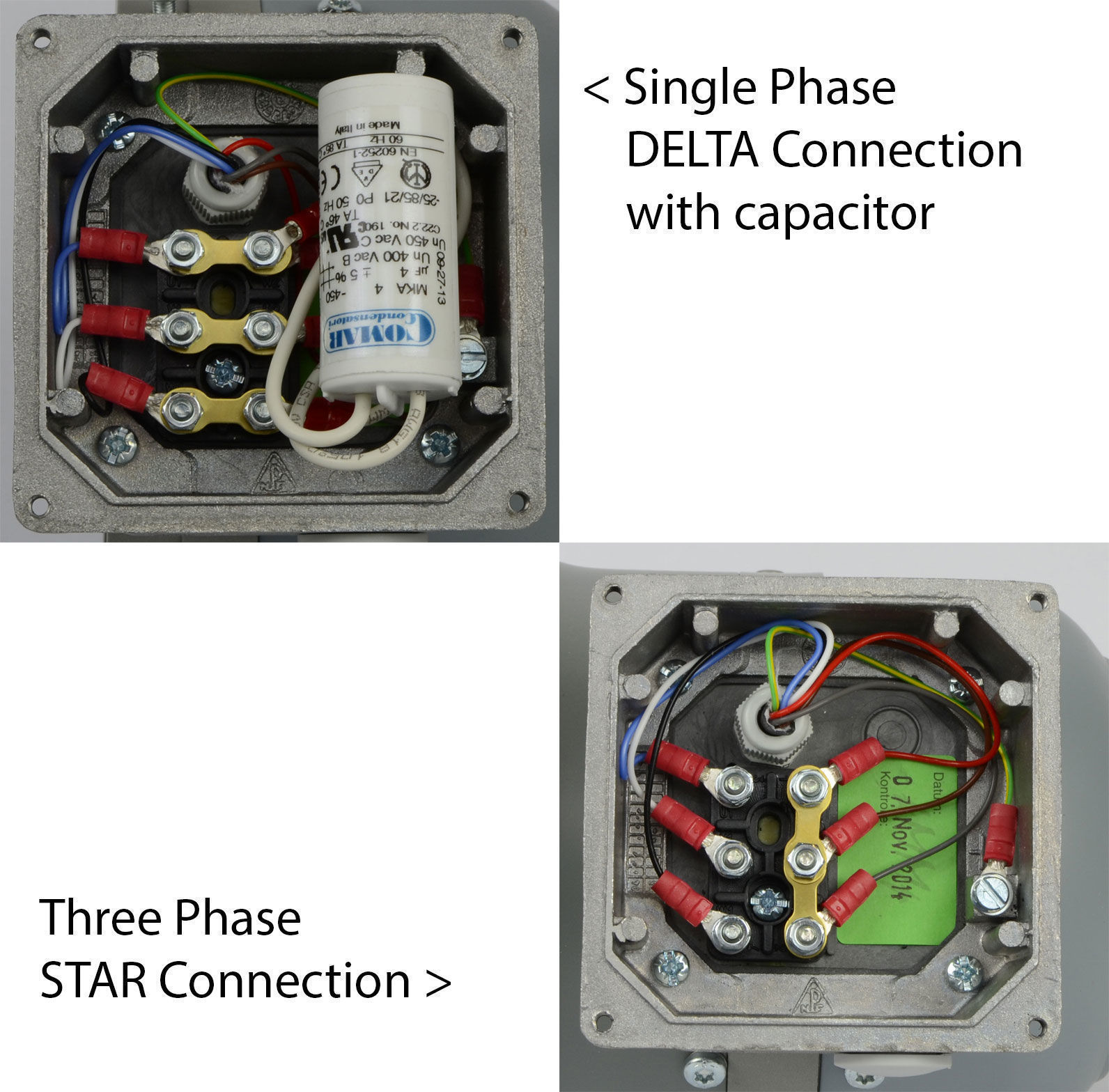

ABB Force Vent Fan M2AA/M3AA/M3BP 250 S-RBK ABB Force Vent Fan M2AA/M3AA/M3BP 250 S-RBK RBK Terminal Connections

ABB Force Vent Fan M2AA/M3AA/M3BP 250 S-RBK

Forced Ventilation Fan 225 S-RBK with encoder to fit ABB M2AA/M3AA/M3BP electric motors with an outside case diameter of up to 506mm.
Manufacturer: Axis Controls
SKU: FV ABB 250 OK 506 441
£1,175.98 excl VAT

Recommended for applications where the motor is used with a frequency inverter.

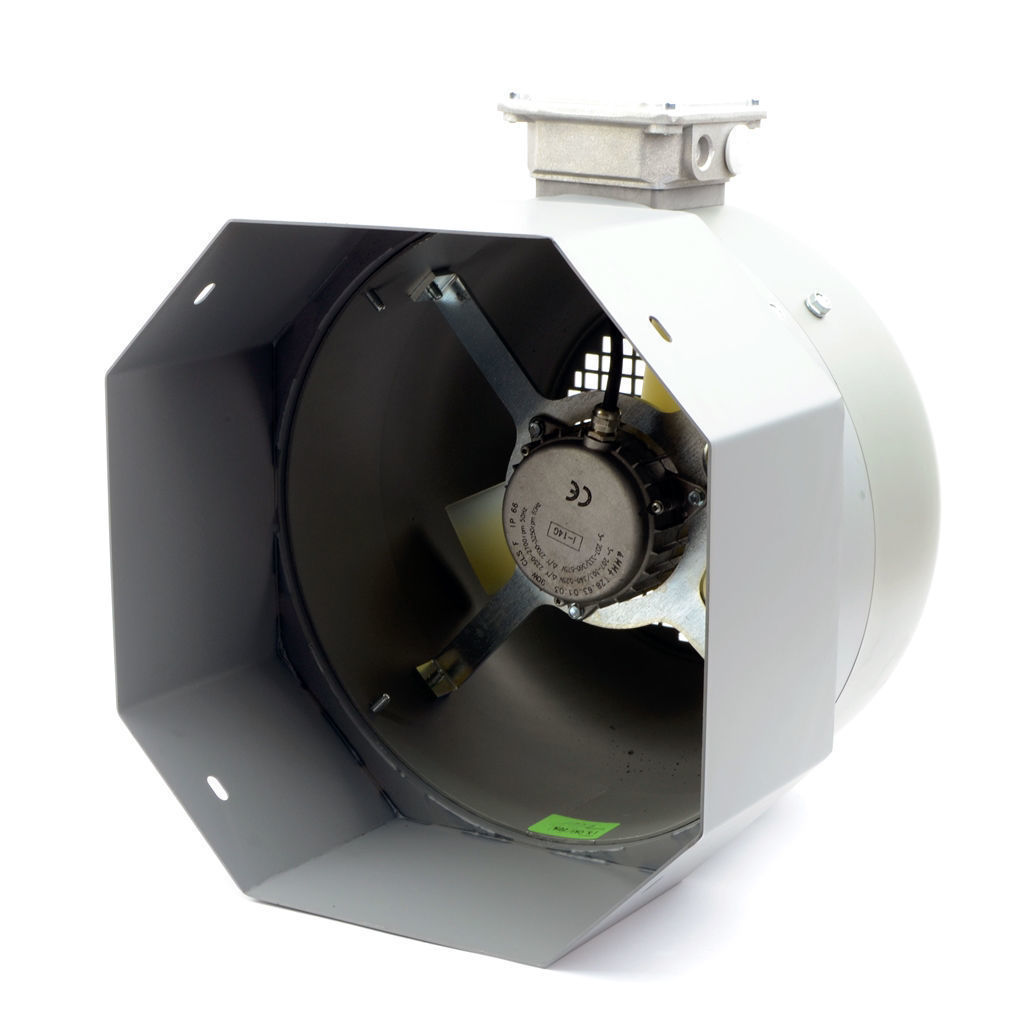

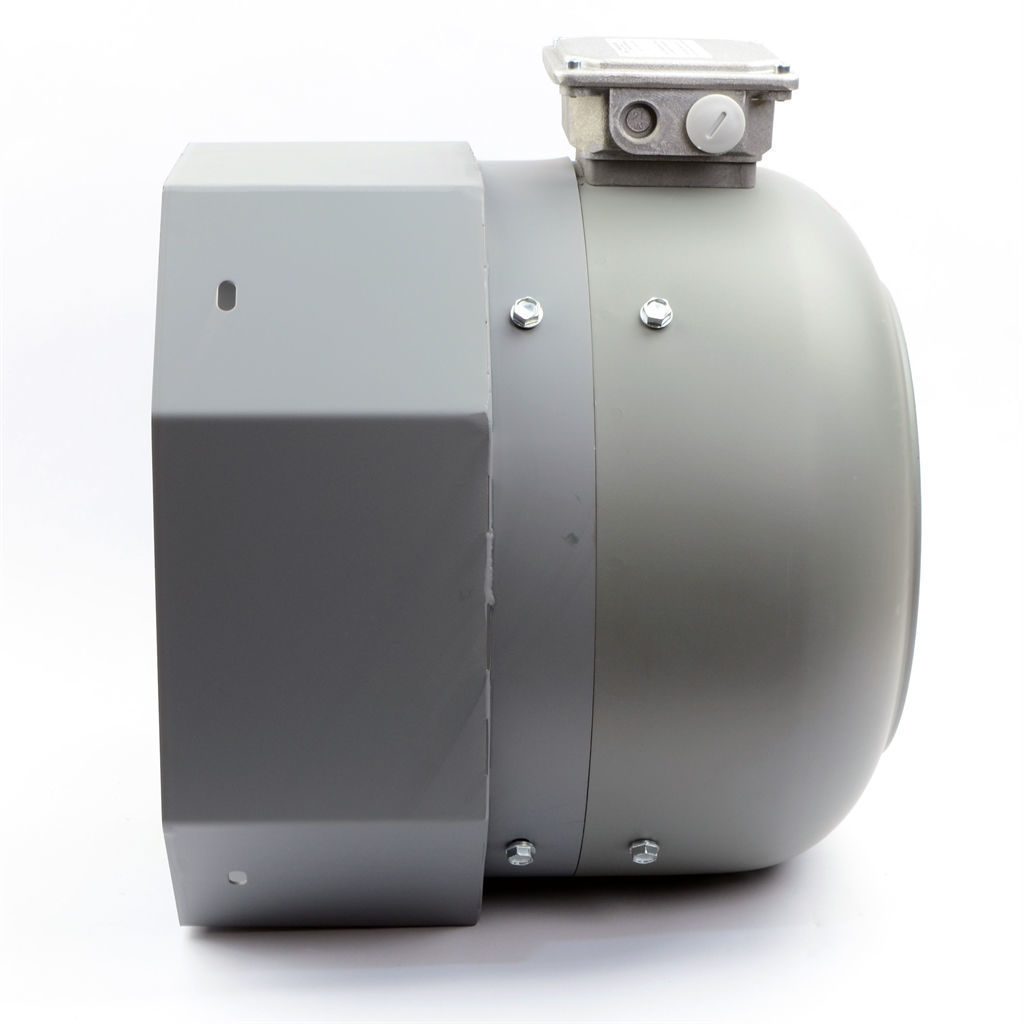

Consists of an extended fan cowl fitted with a motorised fan and a terminal box. The fan is designed to deliver the same (or more) cooling air that is normally delivered by the motors' own fan at the rated speed. Manufactured to provide IP66 protection.

Part NumberFV ABB 250 OK 506 441
IP RatingIP66
Single Phase ConnectionYes, with capacitor
Three Phase ConnectionYes
To Fit MotorABB
SeriesM2AA/M3AA/M3BP
Frame Size250

DOCUMENT DOWNLOADS

Please download the pdf document(s) for full technical information.

Note: The image(s) shown are representative of a typical force ventilation fan for this manufacturer, but may not be the exact frame size as shown in the technical data on this page.

Products specifications
Attribute nameAttribute value
Frame size250
Voltage230V / 400V AC
Phases1 / 3
IP RatingIP66
Internal Ø (mm)506
Length (mm)441
