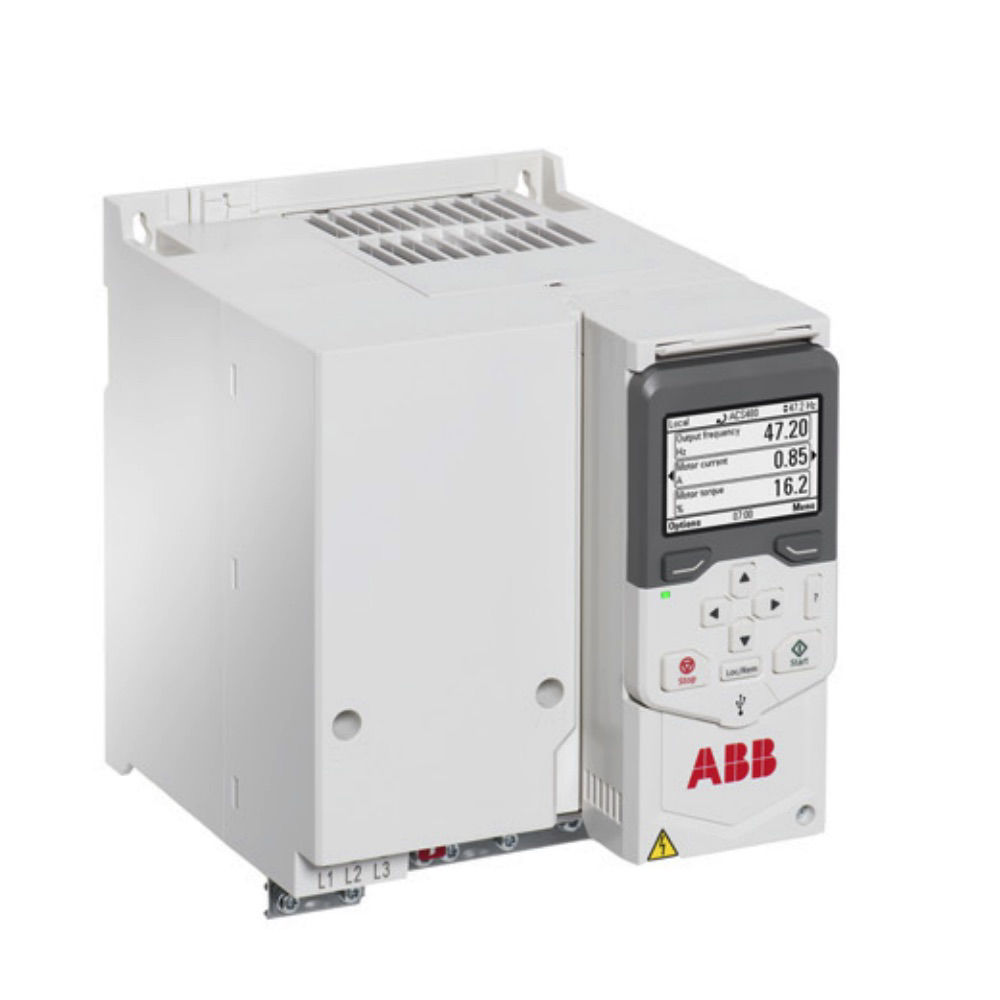

ABB ACS480 Inverter 7.5kW 380-480V

With a straightforward setup menu, commissioning, use and maintenance; the ABB ACS480 drive has all the essential features you need; built in.  With its cabinet optimized size and embedded features, ACS480 is a great fit for variable torque and basic speed applications, where easiness, reliability and efficiency matters.

The ACS480 drive range feature an integrated C2 EMC filter, Safe-torque off, break chopper and Modbus RTU to simplify selection, ordering and installation. With integrated support for high efficiency motors enables best system efficiency.  Built-in energy optimizer ensures maximum torque per ampere; and energy efficiency information help you monitor and save energy in your processes.

Model Number : ACS480-04-018A-4
Manufacturer : ABB
Power Rating : 7.5kW
Output Current : 17.0Amps
Supply Voltage : 380-480V, three phase, +/- 10%
Output Voltage : 380-480V, three phase
Frame Size : R3
Dimensions : h.220mm w.172mm d.207mm
Weight : 3.52 Kg
Ambient : -10 to 50 C (No frost allowed)
Overload : 150% for 60 seconds
Output Frequency : 0-599 Hz
IP Class : IP20
Analogue Input : 2
Digital Inputs : 6
Relay Outputs : 3
Motor Thermistor Input : Option card
Integral RFI Filter : Yes

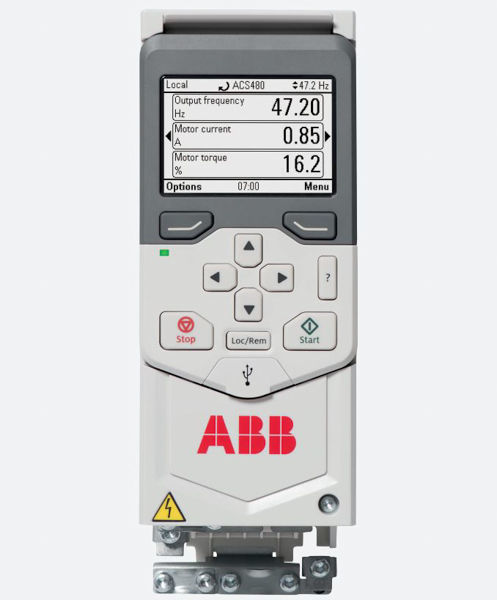

Remote Keypad Available : Yes
