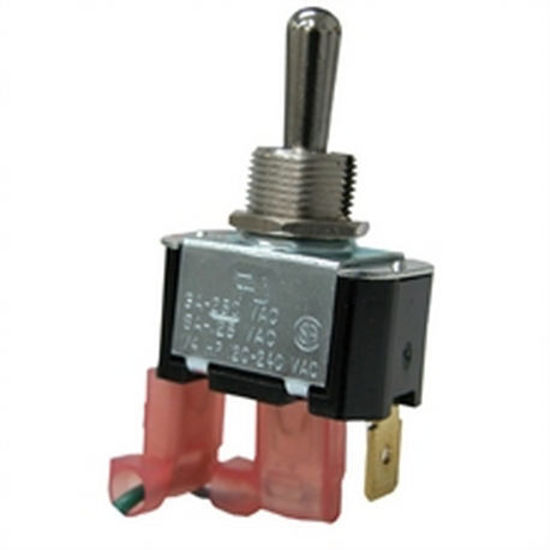

Run Stop Jog Switch

The Run-Stop-Jog Switch provides selection between the Main Speed Potentiometer setting or a momentary jog speed, which can be used to index a machine into position. The switch contains three (3) positions:

1. "Run" – The switch is placed in this position when the control output is to be set using the Main Speed Potentiometer.
2. "Jog" – Used to provide a low speed output. This position is spring loaded so the switch must be held. The jog speed can be changed using the JOG trimpot located on the PC board.
3. "Stop" – Used as a resting position when the Jog function is used. The motor will stop when in this position.
